Baldor IDDRPM21404

Baldor-Reliance IDDRPM21404 is a 40 HP, 1750 rpm, 3-phase 460 V, 60 Hz, RL2162Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM21404SKU # YLSXE5EJFFDX2J

EnclosureDPFV

FrameRL2162Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM21404 is a 40 HP, 1750 rpm, 3-phase 460 V, 60 Hz, RL2162Z frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM21404

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameRL2162Z

Frame materialExposed Laminations

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage52.000 A @ 460.0 V

Duty ratingCONT

Enclosure modificationFORCE VENT

Feedback deviceNO FEEDBACK

High voltage full load current (A)52.0 a

Frame prefixRL

Heater indicatorNo Heater

Insulation classH

IP ratingNONE

Mounting arrangementF1

Overall length23.12 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter1.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Speed (rpm)1750 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568464946

Nameplate

Catalog numberIDDRPM21404

Specification numberR21-A000-0368

Frame sizeRL2162Z

Insulation classH

Phase3

Maximum safe speed (rpm)5000

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL0231A

EnclosureDPG-FV

Service factor1.00

Drive end bearing50BC03JPP30A

Opposite drive end bearing45BC02JPP30A

Nameplate number000613006MY

Documents & CAD

For this product 5

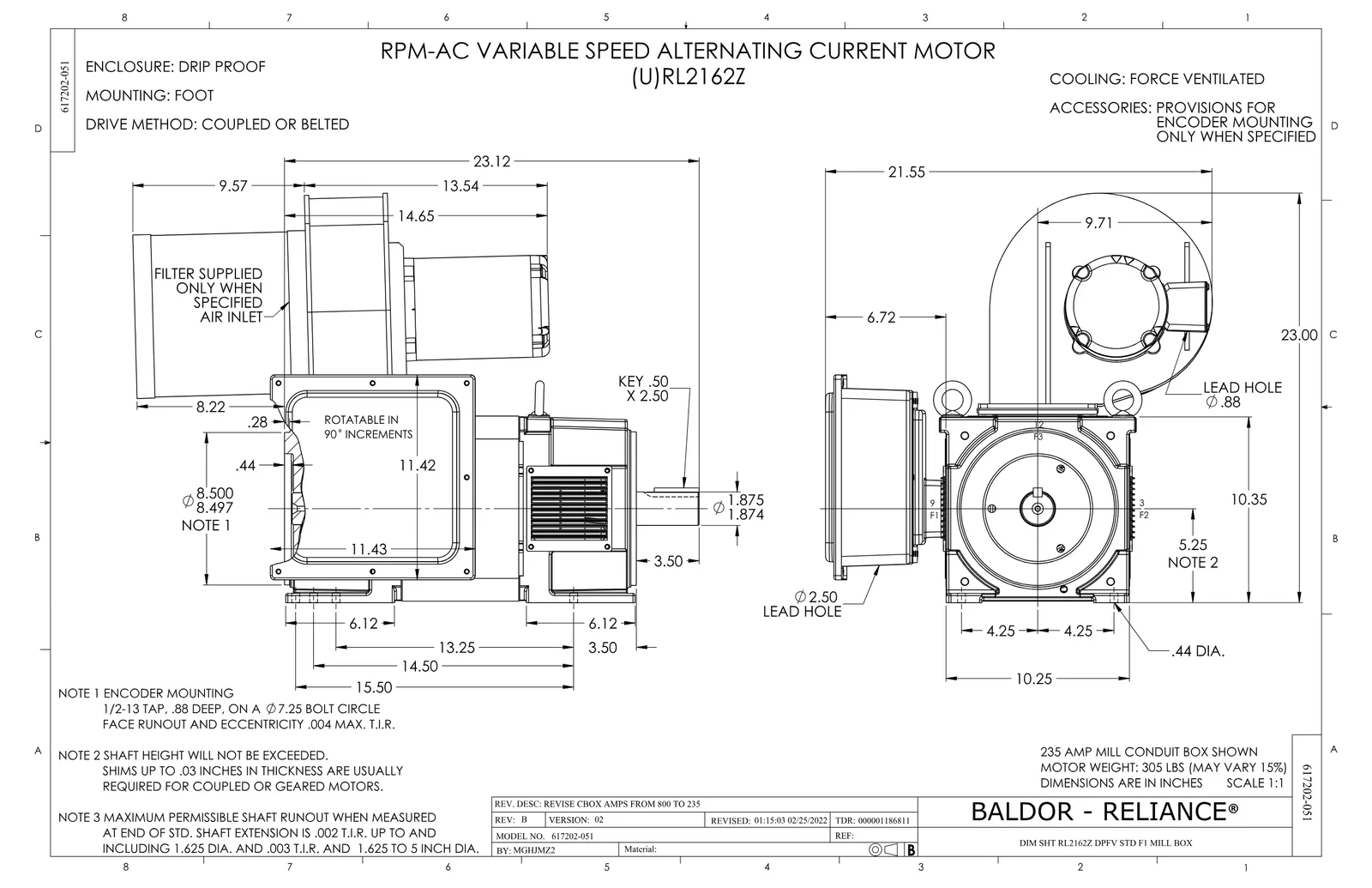

Dimension DrawingDimension SheetPDF·149 KB·English

Dimension DrawingDimension SheetPDF·144 KB·English

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·807 KB·English

Performance CurvePerformance CurvePDF·103 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor IDDRPM21404 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
