How can I get a price quote for Baldor IDDRPM18254C?

You can request a fast quote for Baldor IDDRPM18254C from Yılsa Engineering. Reference part number YLS2V99STHSZB0C. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor IDDRPM18254C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor IDDRPM18254C genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor IDDRPM18254C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDDRPM18254C

Baldor-Reliance IDDRPM18254C is a 25 HP, 1740 rpm, 3-phase 460 V, 60 Hz, FL1844CZ frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

BaldorMFR # IDDRPM18254CSKU # YLS2V99STHSZB0C

EnclosureDPFV

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance IDDRPM18254C is a 25 HP, 1740 rpm, 3-phase 460 V, 60 Hz, FL1844CZ frame general industrial AC electric motor with a drip-proof force-ventilated (DPFV) enclosure.

Baldor IDDRPM18254C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureDPFV

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage33.000 A @ 460.0 V

Duty ratingCONT

Enclosure modificationFORCE VENT

Feedback deviceNO FEEDBACK

High voltage full load current (A)33.0 a

Frame prefixFL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF1

Overall length27.96 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1740 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568464922

Nameplate

Catalog numberIDDRPM18254C

Specification numberP18T0330

Frame sizeFL 1844CZ

Insulation classH

Phase3

Maximum safe speed (rpm)7200

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL3346A

EnclosureDP

Service factor1.0

Drive end bearing45BC02JPP30A

Enclosure modificationFORCE VENT

Opposite drive end bearing35BC02JPP30A

Nameplate number000613006MY

Documents & CAD

For this product 5

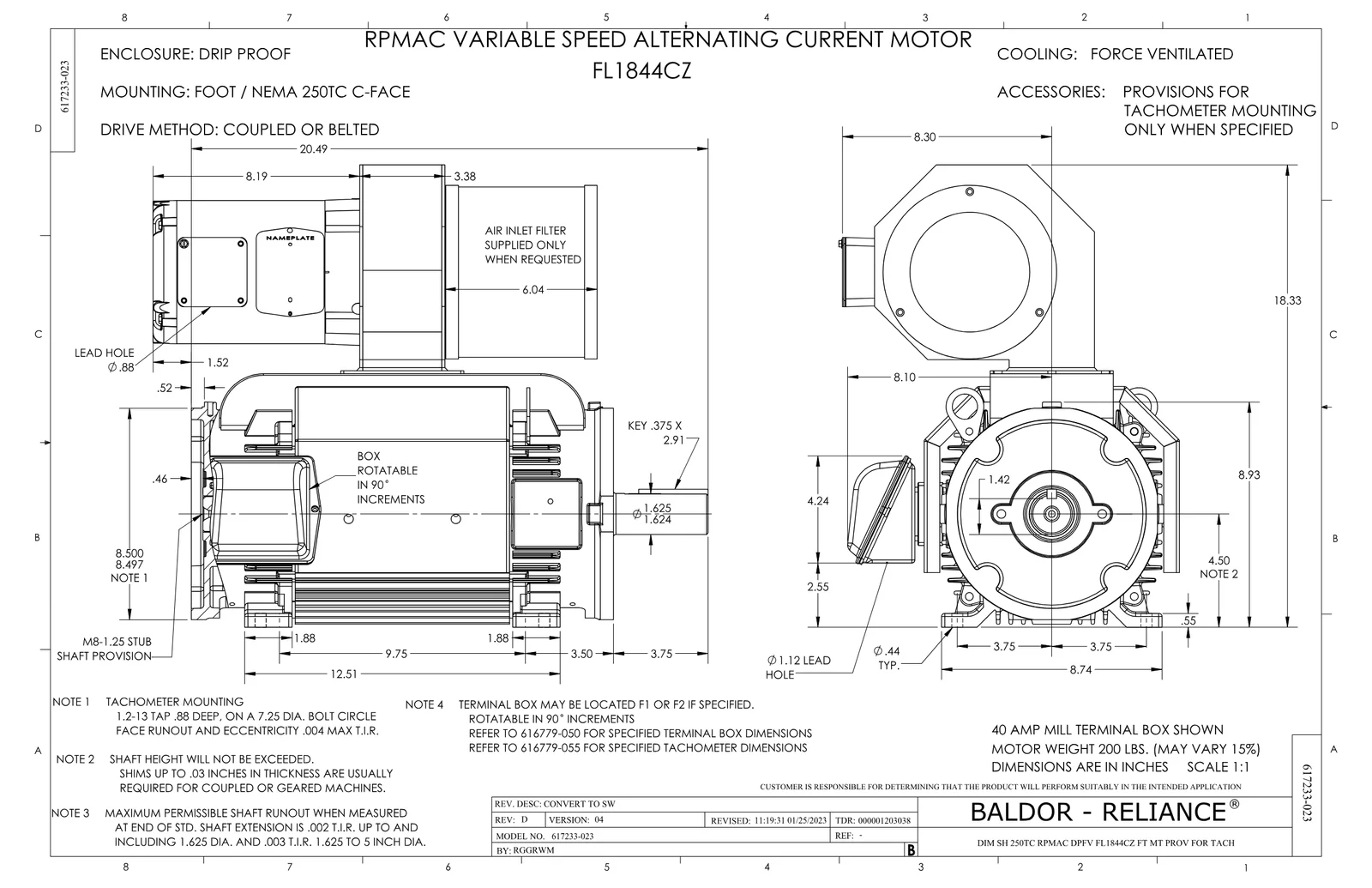

Dimension DrawingDimension SheetPDF·128 KB·English

Dimension DrawingDimension SheetPDF·144 KB·English

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·795 KB·English

Performance CurvePerformance CurvePDF·102 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor IDDRPM18254C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
