Baldor IDBRPM21404
Baldor-Reliance IDBRPM21404 is a 40 HP, 1770 rpm, 3-phase 460 V, 60 Hz, FL2173Z frame general industrial AC electric motor with a totally enclosed blower-cooled (TEBC) enclosure.
EnclosureTEBC
FrameFL2173Z
Frame materialExposed Laminations
Frequency (Hz)60.00 Hz
Motor letter typeThree Phase
Output at frequency40.000 HP @ 60 HZ
About This Product
Baldor-Reliance IDBRPM21404 is a 40 HP, 1770 rpm, 3-phase 460 V, 60 Hz, FL2173Z frame general industrial AC electric motor with a totally enclosed blower-cooled (TEBC) enclosure.
Baldor IDBRPM21404
- Genuine, certified Baldor product
- Fast sourcing through a worldwide supply network
- Product selection and compatibility support from our technical team
- Equivalent and alternative product suggestions
- Quotation and lead time tailored to your request
Specifications
EnclosureTEBC
FrameFL2173Z
Frame materialExposed Laminations
Frequency (Hz)60.00 Hz
Motor letter typeThree Phase
Output at frequency40.000 HP @ 60 HZ
Phase3
Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ
Voltage at frequency460.0 V @ 60 HZ
Agency approvalsCCSA US
Auxiliary boxNO AUXILLARY BOX
Base indicatorRigid
Bearing grease typePolyrex EM (-20F +300F)
Current at voltage51.000 A @ 460.0 V
Duty ratingCONT
Feedback deviceNO FEEDBACK
High voltage full load current (A)51.0 a
Frame prefixFL
Heater indicatorNo Heater
Insulation classH
IP ratingNONE
Mounting arrangementF3
Overall length31.31 IN
Product familyGeneral Industrial
Pulley end bearing typeBall
Pulley face codeStandard
Service factor1.00
Shaft diameter1.875 IN
Shaft ground indicatorShaft Grounding
Shaft rotationReversible
Speed (rpm)1770 rpm
Motor standardsNEMA
Thermal device - bearingNone
Thermal device - windingNormally Closed Thermostat
UPC781568464786
Nameplate
Catalog numberIDBRPM21404
Specification numberF21-A000-0458
Frame sizeFL2173Z
Insulation classH
Phase3
Maximum safe speed (rpm)5000
Ambient temperature (°C)50
Minimum ambient temperature (°C)-25
Design numberL3311A
EnclosureTEAO-BC
Service factor1.00
Drive end bearing50BC03JPP30A
Opposite drive end bearing45BC02JPP30A
Nameplate number000613006MY

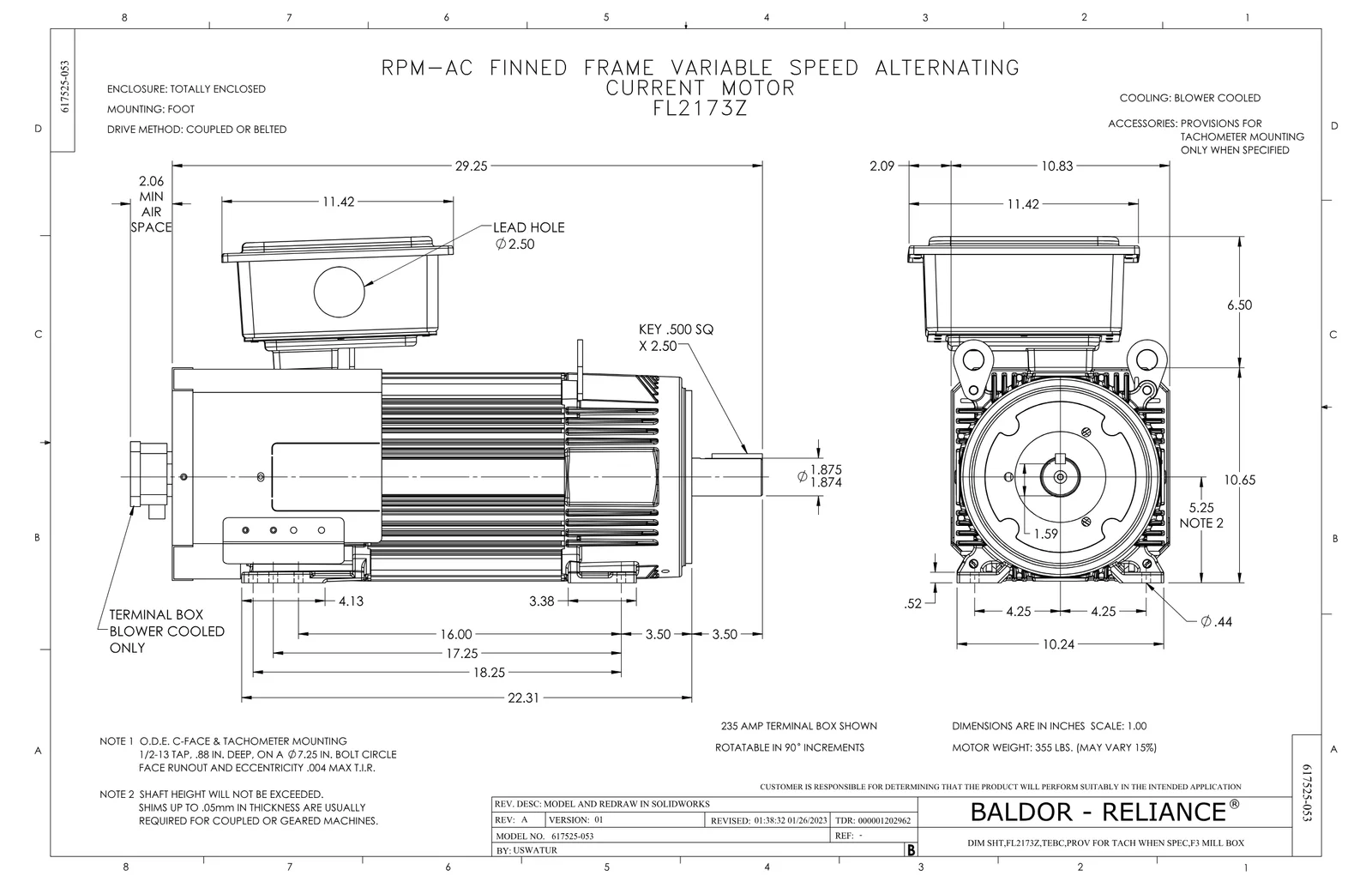

Documents & CAD
For this product 4
Series documents 2· shared by this product series
