How can I get a price quote for Baldor IDBRPM18154C?

You can request a fast quote for Baldor IDBRPM18154C from Yılsa Engineering. Reference part number YLSTB2H6ABYZQF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor IDBRPM18154C in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor IDBRPM18154C genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor IDBRPM18154C?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor IDBRPM18154C

Baldor IDBRPM18154C; 15 HP, 1760 rpm, 3 phase 460 V 60 Hz, FL1844CZ frame, TEBC enclosed general industrial AC electric motor.

BaldorMFR # IDBRPM18154CSKU # YLSTB2H6ABYZQF

EnclosureTEBC

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor IDBRPM18154C; 15 HP, 1760 rpm, 3 phase 460 V 60 Hz, FL1844CZ frame, TEBC enclosed general industrial AC electric motor.

Baldor IDBRPM18154C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEBC

FrameFL1844CZ

Frame materialAluminum

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Agency approvalsCCSA US

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage21.000 A @ 460.0 V

Duty ratingCONT

Feedback deviceNO FEEDBACK

High voltage full load current (A)21.0 a

Frame prefixFL

Heater indicatorNo Heater

Insulation classH

Mounting arrangementF3

Overall length23.89 IN

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeC-Face

Service factor1.00

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Speed (rpm)1760 rpm

Motor standardsNEMA

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

UPC781568464748

Nameplate

Catalog numberIDBRPM18154C

Specification numberP18T0359

Frame sizeFL 1844CZ

Insulation classH

Phase3

Maximum safe speed (rpm)7200

Ambient temperature (°C)40

Minimum ambient temperature (°C)-25

Design numberL3220A

EnclosureTEAO-BC

Service factor1.0

Drive end bearing45BC02JPP30A

Opposite drive end bearing35BC02JPP30A

Nameplate number000613006MY

Documents & CAD

For this product 4

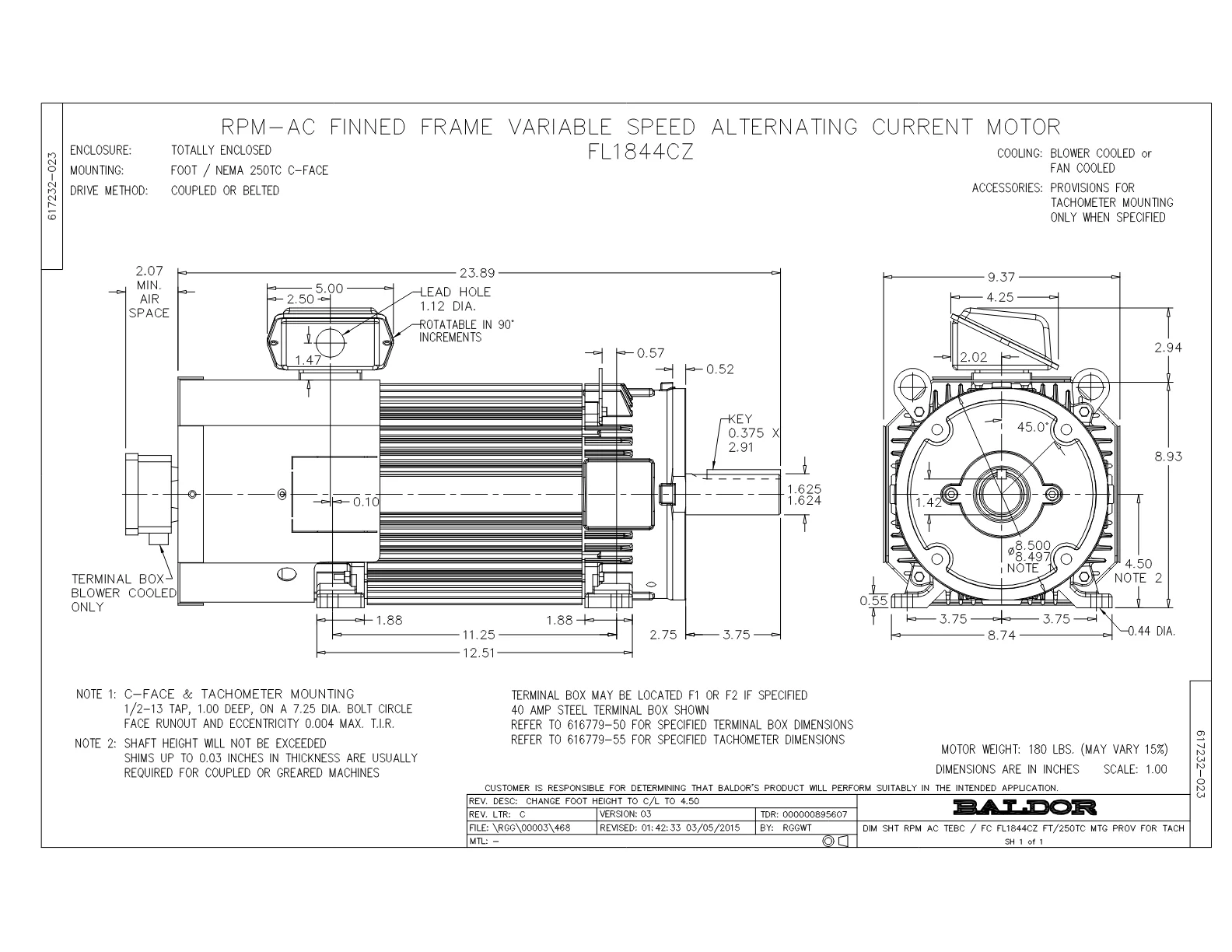

Dimension DrawingDimension SheetPDF·94 KB·English

Dimension DrawingDimension SheetPDF·144 KB·English

Wiring DiagramWiring DiagramPDF·55 KB·English

DatasheetDatasheetPDF·757 KB·English

Series documents 2· shared by this product series

Technical DrawingDrawingPDF·1.0 MB·English

Performance CurvePerformance CurvePDF·102 KB·English

Spare Parts 1

The genuine spare parts used for servicing and repairing the Baldor IDBRPM18154C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
