How can I get a price quote for Baldor HBEM3768T?

You can request a fast quote for Baldor HBEM3768T from Yılsa Engineering. Reference part number YLSRVV3E1B1XKU3. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor HBEM3768T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor HBEM3768T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor HBEM3768T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor HBEM3768T

HBEM3768T

BaldorMFR # HBEM3768TSKU # YLSRVV3E1B1XKU3

EnclosureTEFC

Frame215T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor HBEM3768T (HBEM3768T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor HBEM3768T — price, stock availability and technical specifications.

Baldor HBEM3768T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · NEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage14.800 A @ 230.0 V · 15.300 A @ 208.0 V · 7.400 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingElectrically Isolated Bearings

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.4 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Maximum speed (rpm)1800 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type0746M

Mounting arrangementF1

Number of poles6

Overall length18.45 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1160 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568986936

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberHBEM3768T

CC number010A

Specification number07D743Y763G1

Rating40C AMB-CONT

Phase3

Insulation classH

Code letter (locked rotor kVA)K

NEMA design letterA

EnclosureTEFC

Ingress protection (IP)54

Power factor71

Drive end bearing6307

Opposite drive end bearing6206

Frame size215T

SL HZ1.5

Constant horsepower60

TO90

Inertia (WK²)1.14

Maximum speed (rpm)1800

Constant torque6

TO60

Variable torque3

TO60

Nameplate numberNP4312A01A01L

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)1.64 Ω

Start configurationDOL

Breakdown torque80.9 lb-ft

Pull-up torque51.4 lb-ft

Locked-rotor torque56.4 lb-ft

Starting current (A)55.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	34	51	63	70	73	75	72
Efficiency %	0	81.5	89.5	90	89.7	88.7	87.7	89.1
Speed rpm	1199	1193	1187	1179	1171	1163	1153	1166
Line amps A	4.04	4.42	5.17	6.31	7.56	9.04	10.6	8.45
Power W	176	1184	2109	3163	4188	5252	6330	4826
Torque lb-ft	0	5.7	11.2	17	22.6	28.2	33.9	26

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

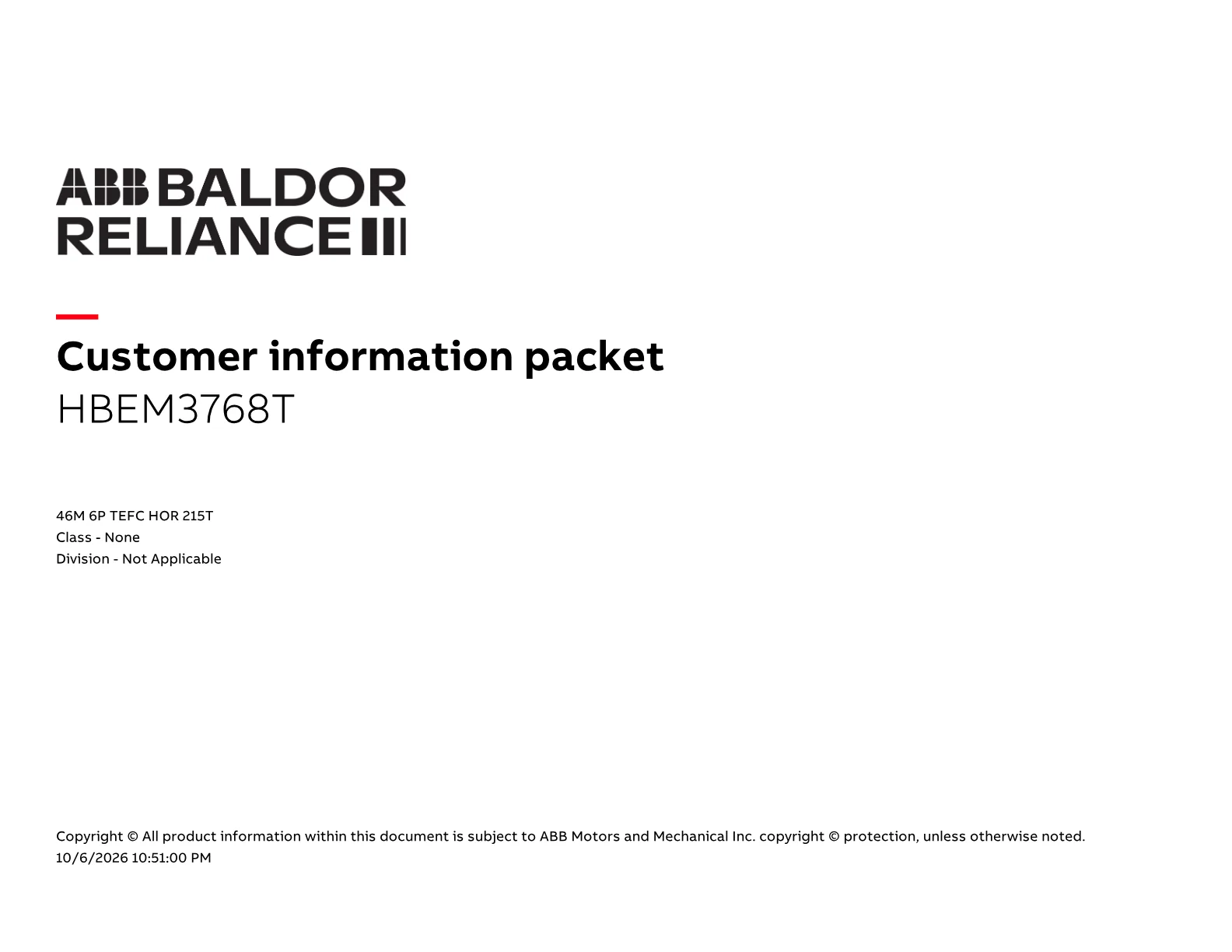

DatasheetDatasheetPDF·745 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·260 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor HBEM3768T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
09CB3500SP	CONDUIT BOX LID, CAST	1 pcs	7 motors
09GS1001SP	GASKET-CONDUIT BOX LID, 1/16 THICK LEXID	1 pcs	6 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
