Baldor HBEM3708T

HBEM3708T

BaldorMFR # HBEM3708TSKU # YLSJM03FCUB0WT5

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor HBEM3708T (HBEM3708T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor HBEM3708T — price, stock availability and technical specifications.

Baldor HBEM3708T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · NEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage14.400 A @ 230.0 V · 15.600 A @ 208.0 V · 7.200 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingElectrically Isolated Bearings

Feedback deviceNO FEEDBACK

High voltage full load current (A)7.2 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Maximum speed (rpm)1800 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 14 AWG

Motor type3752M

Mounting arrangementF1

Number of poles6

Overall length20.52 IN

Power factor71

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1165 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568986905

Product TypeAir Handling (HVAC) Motors

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)1.65 Ω

Temperature rise at rated load (°C)59° C

Temperature rise at service factor load (°C)72° C

Start configurationDOL

Breakdown torque80.1 lb-ft

Pull-up torque51.2 lb-ft

Locked-rotor torque55.8 lb-ft

Starting current (A)54.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	33	52	64	70	74	76	72
Efficiency %	0	84.4	89.3	90.2	89.7	88.6	87	89
Speed rpm	1198	1192	1183	1175	1165	1154	1141	1158
Line amps A	3.98	4.28	5.07	6.08	7.39	8.87	10.6	8.28
Power W	157	1113	2097	3084	4144	5234	6408	4798
Torque lb-ft	0	5.55	11.15	16.67	22.48	28.31	34.43	26

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

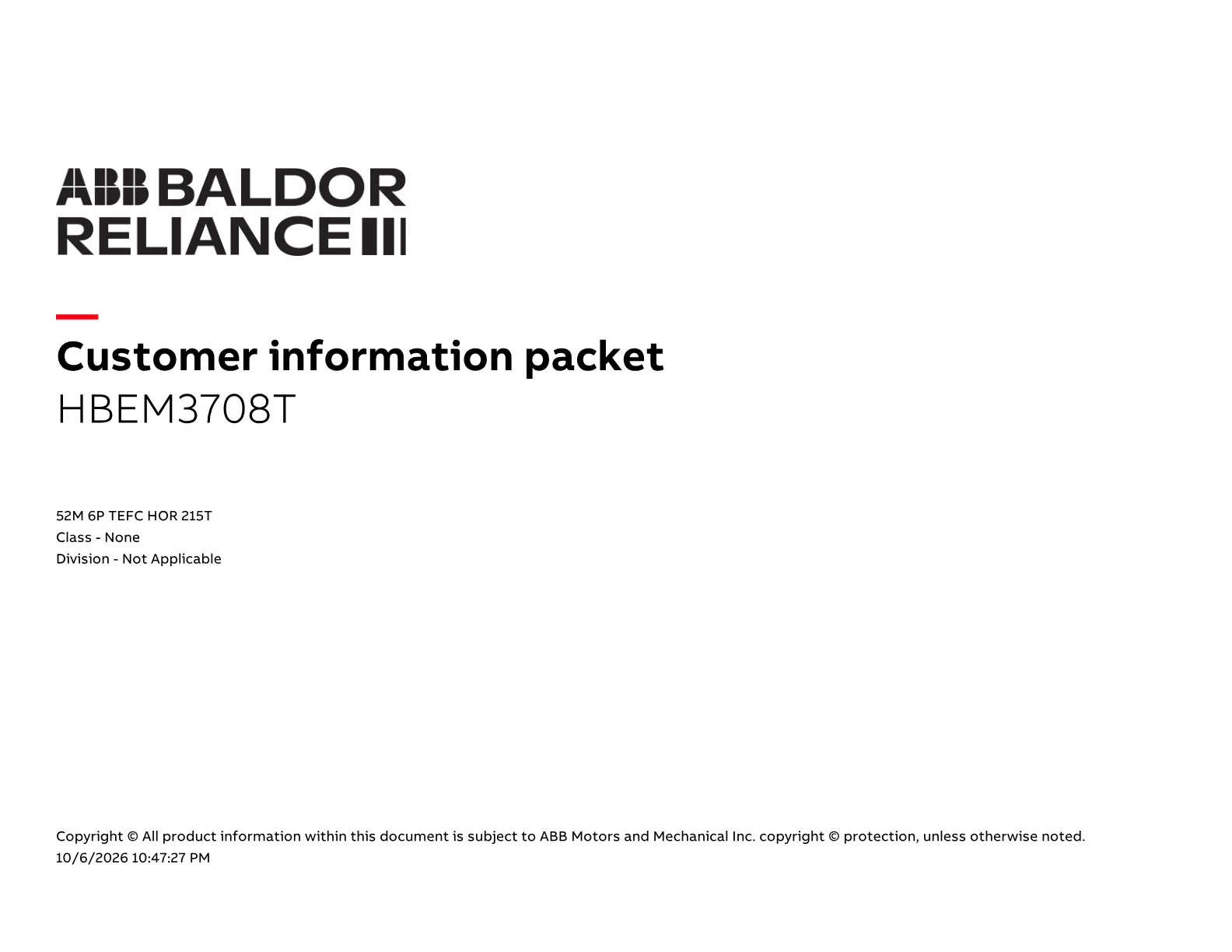

DatasheetDatasheetPDF·607 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·134 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor HBEM3708T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
37GS1000SP	GASKET, CONDUIT BOX STD., .06 THICK LEXI	1 pcs	264 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
