Baldor HBAO4106T

HBAO4106T

BaldorMFR # HBAO4106TSKU # YLSIHERVHZH8L8A

EnclosureTEAO

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor HBAO4106T (HBAO4106T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor HBAO4106T — price, stock availability and technical specifications.

Baldor HBAO4106T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame256T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency20.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · NEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage23.000 A @ 460.0 V · 46.000 A @ 230.0 V · 50.000 A @ 208.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.0 %

Electrically isolated bearingElectrically Isolated Bearings

Feedback deviceNO FEEDBACK

High voltage full load current (A)23.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)5400 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type0936M

Mounting arrangementF1

Number of poles2

Overall length20.75 IN

Power factor89

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3520 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568986677

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberHBAO4106T

Weight229

Specification number09T117Z601G1

Rating40C AMB-CONT

Phase3

Insulation classH

Code letter (locked rotor kVA)H

NEMA design letterA

EnclosureTEAO

Ingress protection (IP)54

Power factor89

Drive end bearing6309

Opposite drive end bearing6208

Frame size256T

SL HZ1.33

Constant horsepower60

TO90

Inertia (WK²)0.92

Maximum speed (rpm)5400

Constant torque6

TO60

Variable torque3

TO60

Nameplate numberNP4312A01M01L

Performance

General characteristics· 460 V, 60 Hz, 20 hp

Line-to-line resistance at 25 °C (ohms)0.47592 Ω

Temperature rise at rated load (°C)76° C

Temperature rise at service factor load (°C)95° C

Start configurationDOL

Breakdown torque111 lb-ft

Pull-up torque39.1 lb-ft

Locked-rotor torque49.6 lb-ft

Starting current (A)161 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	58	78	86	89	90	90	90
Efficiency %	0	88.9	92.2	92.4	91.7	90.7	89.2	91.1
Speed rpm	3598.8	3579.6	3561.5	3541.3	3519.5	3495.4	3467.8	3505
Line amps A	7.17	9	13	17.7	22.9	28.6	35	26.3
Power W	401	4136	8031	12102	16150	20516	25023	18770
Torque lb-ft	0	7.2	14.6	22.2	29.6	37.4	45.3	34.3

Documents & CAD

For this product 3

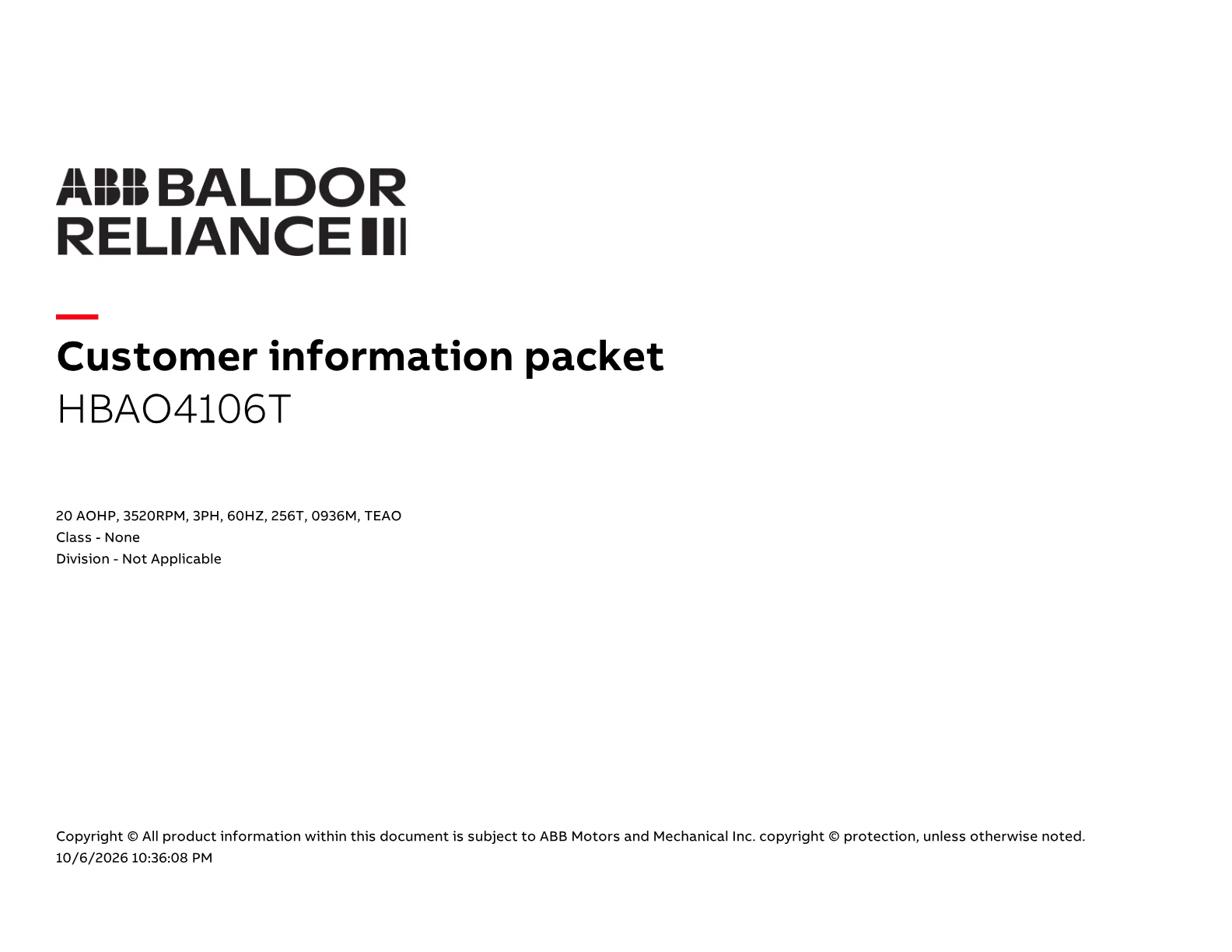

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·647 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·160 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor HBAO4106T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	8 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
