Baldor HBAO2333T

Baldor-Reliance HBAO2333T is a general purpose AC motor rated 15 HP, 1765 rpm, 3 phase, 60 Hz, 230/460 V, with a 254T frame and TEAO enclosure.

BaldorMFR # HBAO2333TSKU # YLSGNY5ILQXM2JI

EnclosureTEAO

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance HBAO2333T is a general purpose AC motor rated 15 HP, 1765 rpm, 3 phase, 60 Hz, 230/460 V, with a 254T frame and TEAO enclosure.

Baldor HBAO2333T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame254T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · NEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage18.100 A @ 460.0 V · 36.200 A @ 230.0 V · 38.000 A @ 208.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.4 %

Electrically isolated bearingElectrically Isolated Bearings

Feedback deviceNO FEEDBACK

High voltage full load current (A)18.1 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Maximum speed (rpm)2700 rpm

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type0944M

Mounting arrangementF1

Number of poles4

Overall length20.75 IN

Power factor84

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1765 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568982914

Nameplate

Catalog numberHBAO2333T

Weight268

Specification number09M871T597G2

Rating40C AMB-CONT

Phase3

Insulation classH

Code letter (locked rotor kVA)H

NEMA design letterA

EnclosureTEAO

Ingress protection (IP)54

Power factor84

Drive end bearing6309

Opposite drive end bearing6208

Frame size254T

SL HZ1.17

Constant horsepower60

TO90

Inertia (WK²)1.93

Maximum speed (rpm)2700

Constant torque6

TO60

Variable torque3

TO60

Nameplate numberNP4312A01M01L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.61 Ω

Temperature rise at rated load (°C)52° C

Temperature rise at service factor load (°C)67° C

Start configurationDOL

Breakdown torque154 lb-ft

Pull-up torque67.2 lb-ft

Locked-rotor torque83.5 lb-ft

Starting current (A)129 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	48	69	79	84	86	87	86
Efficiency %	0	88	92.1	92.7	92.5	91.7	90.7	91.9
Speed rpm	1799	1792	1785	1777	1768	1759	1749	1761
Line amps A	7.32	8.45	11	14.3	18.1	22.2	26.7	20.5
Power W	345	3206	6104	9056	12109	15261	18512	14025
Torque lb-ft	0	11	22.1	33.3	44.5	56	67.6	51.4

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

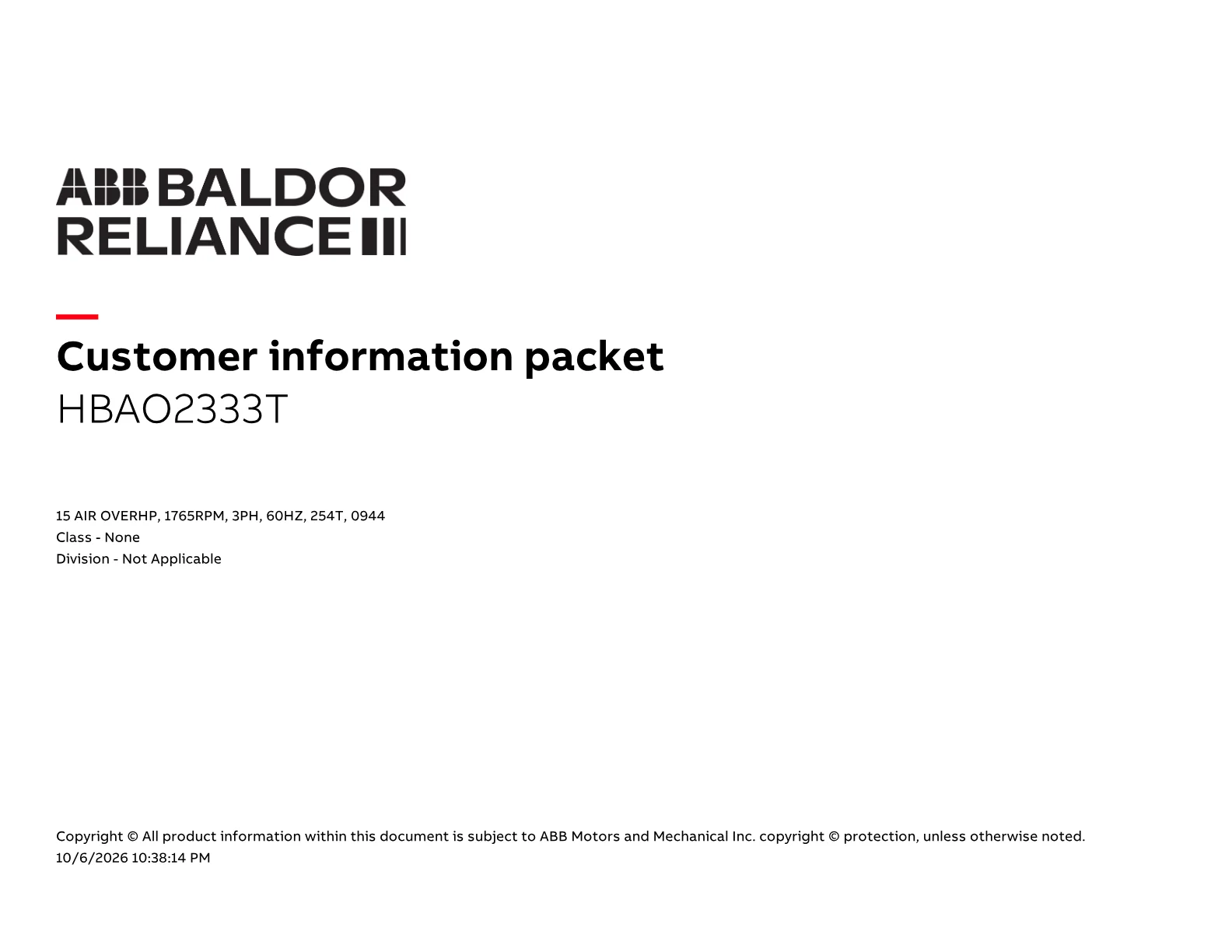

DatasheetDatasheetPDF·652 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·163 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 13

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor HBAO2333T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	6 pcs	1,543 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
