Baldor GSL3509M

Baldor-Reliance GSL3509M is a 1.5 HP, 1750 rpm, single-phase 208/230 V, 60 Hz, 56Z frame, TEFC enclosed farm duty general purpose AC electric motor.

BaldorMFR # GSL3509MSKU # YLSCGUJV09OIHZ

EnclosureTEFC

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance GSL3509M is a 1.5 HP, 1750 rpm, single-phase 208/230 V, 60 Hz, 56Z frame, TEFC enclosed farm duty general purpose AC electric motor.

Baldor GSL3509M

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame56Z

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage6.100 A @ 230.0 V · 6.700 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.1 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 16 AWG, A PH

Motor type3523LC

Mounting arrangementF1

Number of poles4

Overall length12.29 IN

Power factor98

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1750 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568122082

Nameplate

Catalog numberGSL3509M

Specification number35G630K596G1

Horsepower (HP)1.5

Voltage (V)208-230

Current (A)6.7-6.1

Speed (rpm)1750

Frame size56Z

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor98

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)2.5587 Ω / 4.8083 Ohms B Ph

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque11.1 lb-ft

Pull-up torque8.21 lb-ft

Locked-rotor torque9.59 lb-ft

Starting current (A)46.3 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	53	81	92	96	98	98	98	98
Efficiency %	0	52.4	71.1	78	81.2	81.2	79.2	81.2
Speed rpm	1797.9	1787.9	1777.1	1765.6	1751.6	1735.9	1714.4	1742
Line amps A	2.44	2.84	3.7	4.85	6.14	7.59	9.34	7.01
Power W	297	528	782	1069	1375	1715	2111	1579
Torque lb-ft	0	1.09	2.202	3.326	4.487	5.65	6.863	5.18

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·106 KB·English

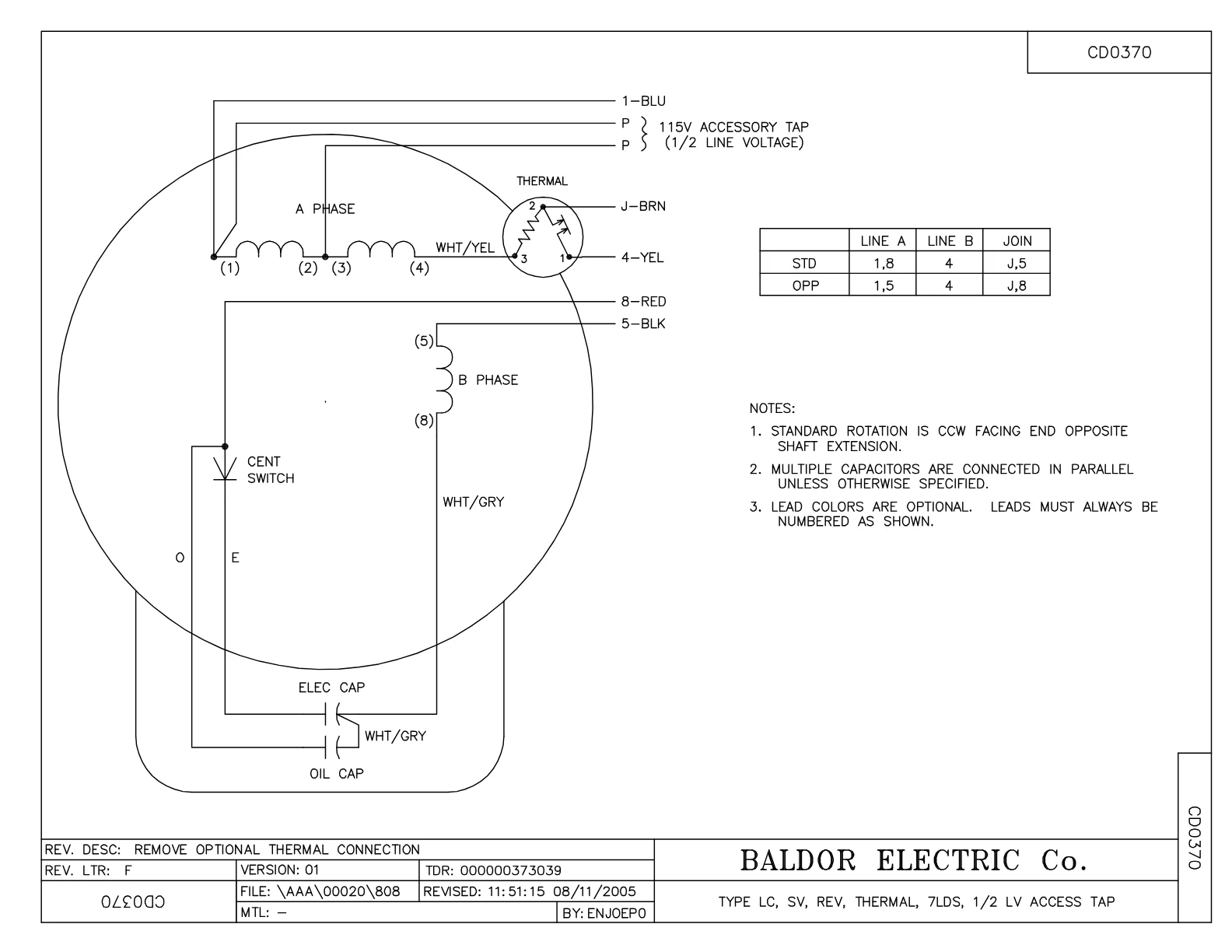

Wiring DiagramWiring DiagramPDF·34 KB·English

DatasheetDatasheetPDF·585 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor GSL3509M motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
EC1161C06SP	ELEC CAP, 161-193 MFD, 250V, 2.06D X 4.	1 pcs	6 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
RM1014A01SP	BUTYL RUB.THRM COV. (MENA)	1 pcs	37 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
