Baldor GNEM2524T-G

GNEM2524T-G

BaldorMFR # GNEM2524T-GSKU # YLS027HU9XUW3CU

EnclosureOPSB

Frame284T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency11.000 KW @ 50 HZ · 15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor GNEM2524T-G (GNEM2524T-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor GNEM2524T-G — price, stock availability and technical specifications.

Baldor GNEM2524T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame284T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency11.000 KW @ 50 HZ · 15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1000 RPM @ 50 HZ

Voltage at frequency230.0 V @ 60 HZ · 208.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Agency approvalsUKCA · WEEE · NEMA PREMIUM (OLD LOGO) · CURUSEEV · CE · NEMA PREMIUM · IE3

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage48.000 A @ 190.0 V · 44.000 A @ 208.0 V · 42.000 A @ 230.0 V · 24.000 A @ 380.0 V · 21.000 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)21.0 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 10 AWG

Motor type4056M

Mounting arrangementF1

Number of poles6

Overall length25.06 IN

Power factor73

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.875 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1185 rpm · 980 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568586037

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberGNEM2524T-G

Specification number40E246X502G1

Horsepower (HP)15HP//11KW

Phase3

Voltage (V)208-230/460//190/380

Current (A)44-42/21//48/24

Speed (1/min)1185//980

Weight369

Frame size284T

Frequency (Hz)60//50

Ingress protection (IP)22

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterA

Insulation classH

Nominal efficiency (%)91.7//90.3

Power factor73

Rating40C AMB-CONT

CC number010A

Drive end bearing6311

Opposite drive end bearing6309

EnclosureOPSB

Nameplate numberNP4304L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.47156 Ω

Temperature rise at rated load (°C)23° C

Temperature rise at service factor load (°C)27° C

Start configurationDOL

Breakdown torque230 lb-ft

Pull-up torque127 lb-ft

Locked-rotor torque139 lb-ft

Starting current (A)140 A

Line-to-line resistance at 25 °C (ohms)0.47155 Ω

Temperature rise at rated load (°C)34° C

Temperature rise at service factor load (°C)39° C

Start configurationDOL

Breakdown torque226 lb-ft

Pull-up torque124 lb-ft

Locked-rotor torque137 lb-ft

Starting current (A)139 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	33	53	66	73	77	79	75
Efficiency %	0	87.9	92.4	93.4	93.5	93.1	92.4	93.3
Speed rpm	1199.9	1196.3	1192.5	1189.1	1185.2	1180.7	1175.4	1182
Line amps A	11.4	12.3	14.4	17.2	20.7	24.6	28.9	23
Power W	357	3207	6085	9009	11993	15041	18180	13822
Torque lb-ft	0	16.6	33.2	49.85	66.62	83.53	100.7	76.8

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

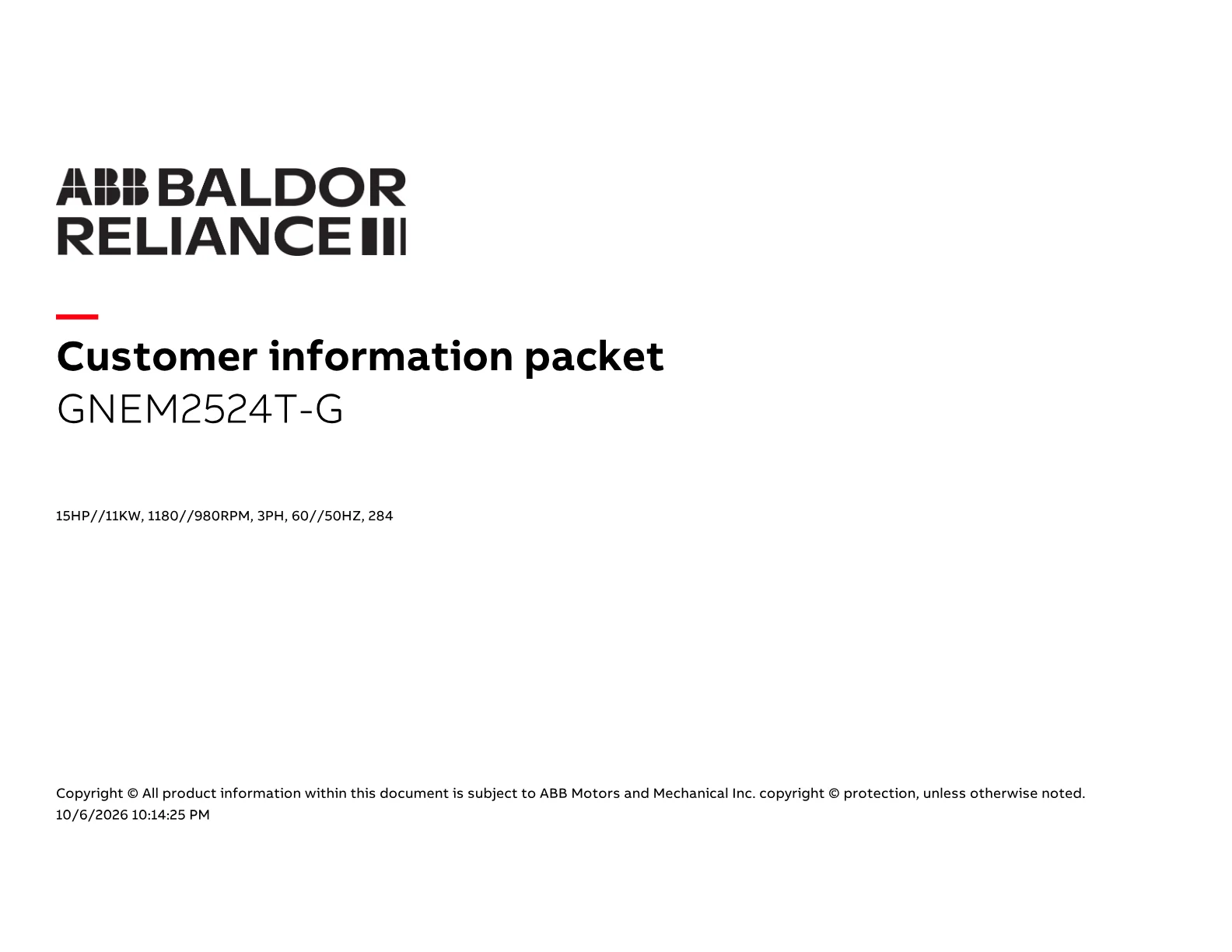

DatasheetDatasheetPDF·706 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·137 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor GNEM2524T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	6 pcs	1,025 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
