Baldor GNEM2511T-G

GNEM2511T-G

BaldorMFR # GNEM2511T-GSKU # YLSTREF6C3FQ3X3

EnclosureOPSB

Frame256T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ · 7.500 KW @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor GNEM2511T-G (GNEM2511T-G) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor GNEM2511T-G — price, stock availability and technical specifications.

Baldor GNEM2511T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame256T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 60 HZ · 7.500 KW @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1000 RPM @ 50 HZ

Voltage at frequency190.0 V @ 50 HZ · 208.0 V @ 60 HZ · 230.0 V @ 60 HZ · 380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsWEEE · UKCA · NEMA PREMIUM (OLD LOGO) · NEMA PREMIUM · IE3 · CURUSEEV · CE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage36.000 A @ 190.0 V · 31.000 A @ 230.0 V · 31.000 A @ 208.0 V · 18.000 A @ 380.0 V · 15.500 A @ 460.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.7 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)15.5 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Duty

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3960M

Mounting arrangementF1

Number of poles6

Overall length24.19 IN

Power factor66

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.625 IN

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1180 rpm · 980 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568585900

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberGNEM2511T-G

Specification number39E366X503G1

Horsepower (HP)10HP//7.5KW

Phase3

Voltage (V)208-230/460//190/380

Current (A)31/15.5//36/18

Speed (1/min)1180//980

Weight131KG

Frame size256T

Frequency (Hz)60//50

Ingress protection (IP)22

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterA

Insulation classH

Nominal efficiency (%)91.7

Power factor66

Rating40C AMB-CONT

CC number010A

Drive end bearing6309

Opposite drive end bearing6208

EnclosureOPSB

Nameplate numberNP4304L

Performance

General characteristics· 460 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.578 Ω

Temperature rise at rated load (°C)18° C

Temperature rise at service factor load (°C)21° C

Start configurationDOL

Breakdown torque182 lb-ft

Pull-up torque66.74 lb-ft

Locked-rotor torque81.3 lb-ft

Starting current (A)112 A

Line-to-line resistance at 25 °C (ohms)0.578 Ω

Temperature rise at rated load (°C)21° C

Temperature rise at service factor load (°C)26° C

Start configurationDOL

Breakdown torque176 lb-ft

Pull-up torque70.2 lb-ft

Locked-rotor torque85.5 lb-ft

Starting current (A)110 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	28	45	57	64	69	72	67
Efficiency %	0	82.2	89.2	91.4	92.2	92.2	91.8	92.2
Speed rpm	1199	1197	1194	1190	1186	1183	1178	1184
Line amps A	9.62	10.22	11.51	13.41	15.62	18.44	21.18	17.3
Power W	385	2263	4122	6064	8023	10197	12137	9327
Torque lb-ft	0	10.95	21.7	32.81	43.95	55.95	66.61	51.2

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·701 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

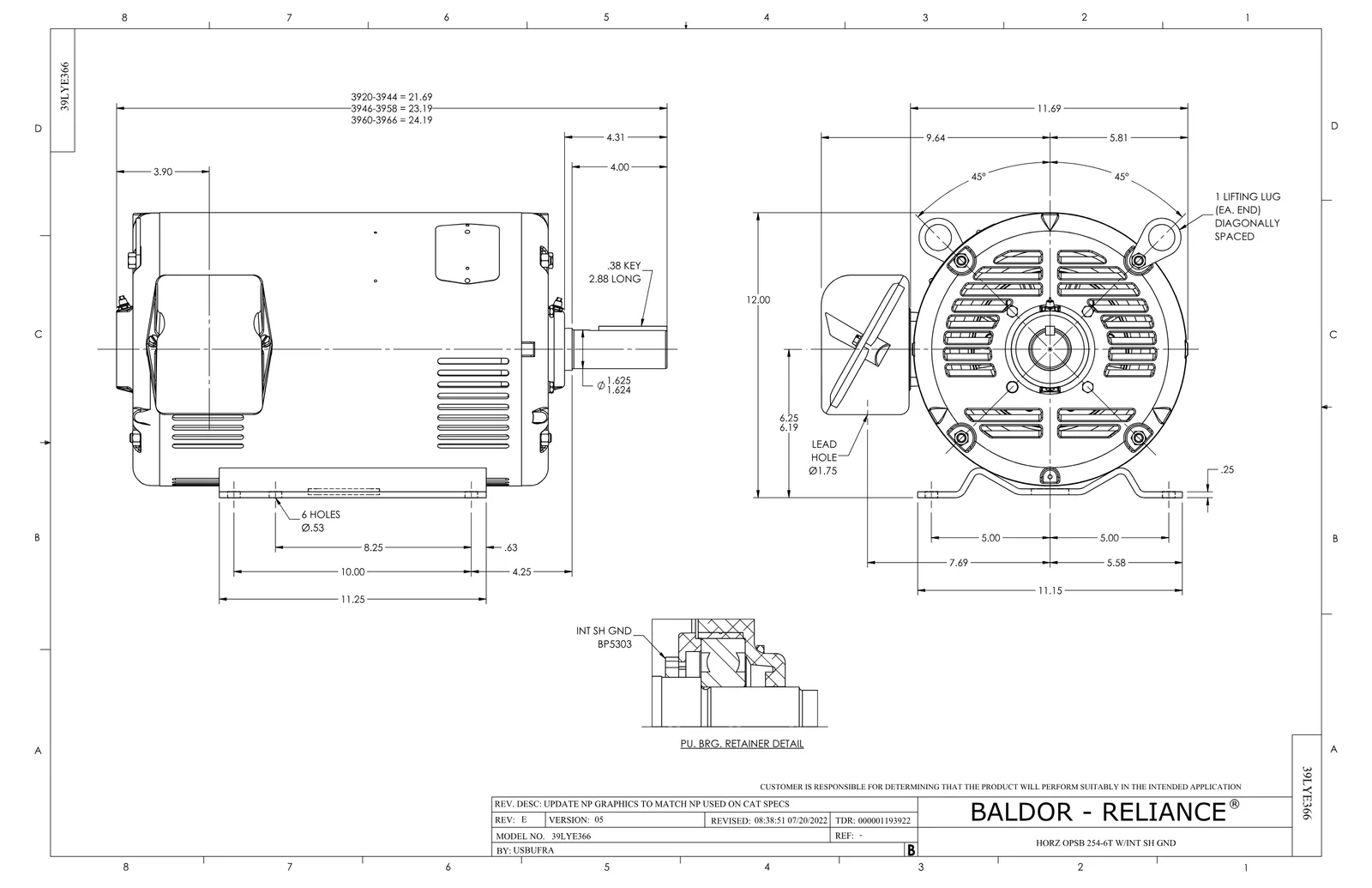

Dimension DrawingDimension SheetPDF·131 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor GNEM2511T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
