How can I get a price quote for Baldor GDL3774T?

You can request a fast quote for Baldor GDL3774T from Yılsa Engineering. Reference part number YLSPHG1ZGA5QIJ7. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor GDL3774T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor GDL3774T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor GDL3774T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor GDL3774T

GDL3774T

BaldorMFR # GDL3774TSKU # YLSPHG1ZGA5QIJ7

EnclosureTEFC

Frame215TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor GDL3774T (GDL3774T) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor GDL3774T — price, stock availability and technical specifications.

Baldor GDL3774T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency10.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage38.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)38.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type0748LC

Mounting arrangementF1

Number of poles4

Overall length19.45 IN

Power factor98

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568803776

Product TypeBrake Motors

Nameplate

Catalog numberGDL3774T

Specification number07N243Y838G1

Horsepower (HP)10

Voltage (V)230

Current (A)38

Speed (rpm)1740

Frame size215TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)F

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor98

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)0.17698 Ω / 0.45276 Ohms B Ph

Start configurationDOL

Breakdown torque78.7 lb-ft

Pull-up torque58 lb-ft

Locked-rotor torque78.1 lb-ft

Starting current (A)232 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	66	96	98	98	98	97	95
Efficiency %	0	78.6	87.7	89	87.6	84.6	79.3
Speed rpm	1799	1786.1	1772.1	1757.4	1741.3	1718	1684.7
Line amps A	4.37	10.7	18.9	28	37.7	49.1	64.9
Power W	657	2364	4270	6325	8498	10959	14149
Torque lb-ft	0	7.32	14.9	22.5	30.1	38	46.9

Documents & CAD

For this product 3

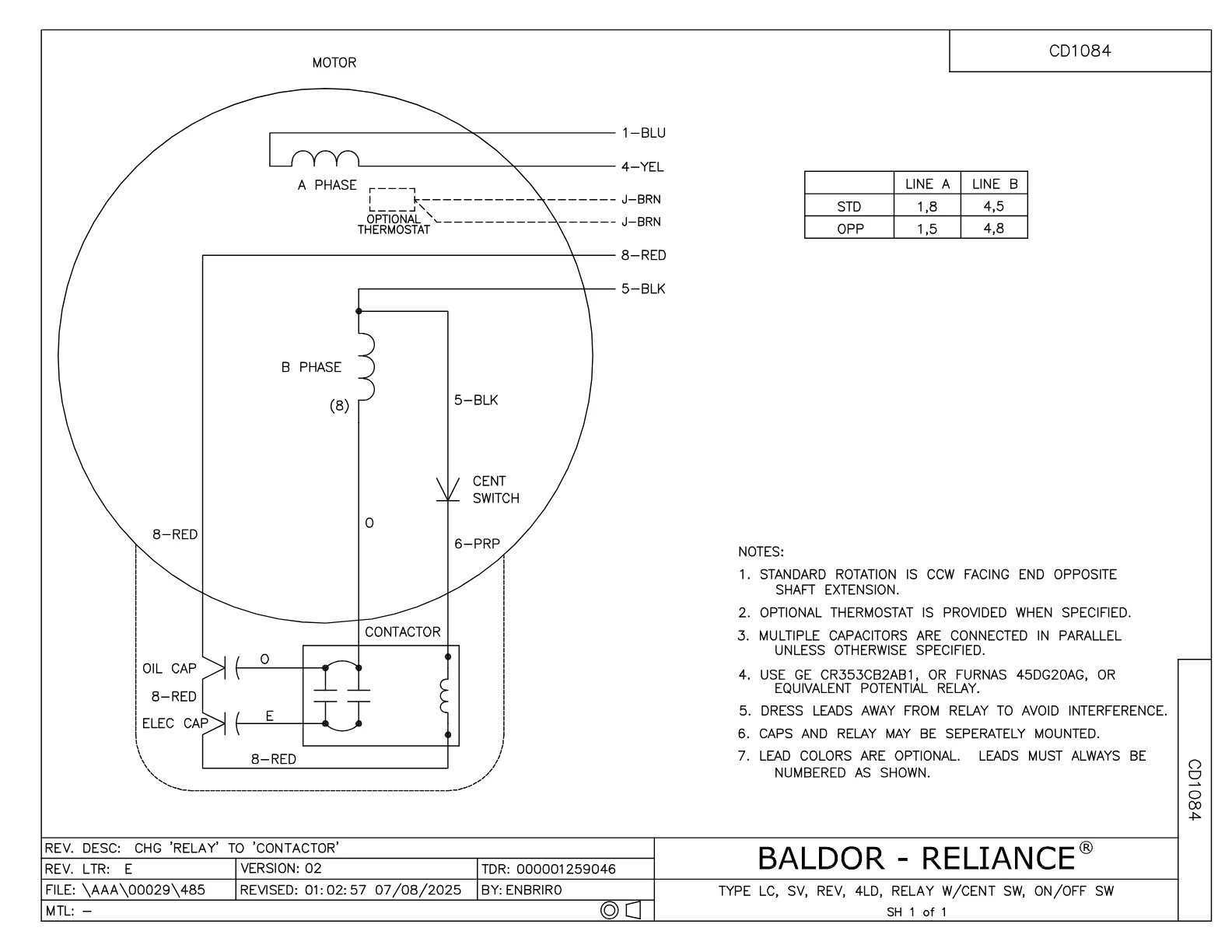

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·656 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·164 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor GDL3774T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
RE5029	MARS 91423 DOUBLE POLE 230-240V CONTACTO	1 pcs	8 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	4 pcs	45 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
