Baldor GDL2333T

Baldor-Reliance GDL2333T is a 16 HP, 1740 rpm, single-phase 208/230 V, 60 Hz, 256TZ frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # GDL2333TSKU # YLSF96QZMAEABM5

EnclosureTEFC

Frame256TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency16.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance GDL2333T is a 16 HP, 1740 rpm, single-phase 208/230 V, 60 Hz, 256TZ frame, TEFC enclosed general purpose AC electric motor.

Baldor GDL2333T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame256TZ

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency16.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage61.000 A @ 230.0 V · 69.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load87.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)61.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeC

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 6 AWG, A PH

Motor type0956LC

Mounting arrangementF1

Number of poles4

Overall length24.36 IN

Power factor96

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1740 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568794074

Nameplate

Catalog numberGDL2333T

Specification number09L657T428G1

Horsepower (HP)16

Voltage (V)208-230

Current (A)69-61

Speed (rpm)1740

Frame size256TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)C

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)87.5

Power factor96

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6307

EnclosureTEFC

Nameplate numberNP1279L

Performance

General characteristics· 230 V, 60 Hz, 16 hp

Line-to-line resistance at 25 °C (ohms)0.098033 Ω / 0.32402 Ohms B Ph

Temperature rise at rated load (°C)83° C

Start configurationDOL

Breakdown torque147 lb-ft

Pull-up torque75.4 lb-ft

Locked-rotor torque99.7 lb-ft

Starting current (A)250 A

Line-to-line resistance at 25 °C (ohms)0.098033 Ω / 0.32402 Ohms B Ph

Temperature rise at rated load (°C)104° C

Start configurationDOL

Breakdown torque144 lb-ft

Pull-up torque73.7 lb-ft

Locked-rotor torque98.2 lb-ft

Starting current (A)350 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	44	89	95	96	96	96	95
Efficiency %	0	78.6	87.1	88.6	88	85.9	82.4
Speed rpm	1799	1787.1	1773.2	1757.9	1741.3	1721.2	1693.9
Line amps A	9.37	18.8	31.5	45.6	61.4	78.5	100
Power W	959	3845	6875	10075	13611	17344	21805
Torque lb-ft	0	11.9	23.78	35.77	48.4	60.96	74.7

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·156 KB·English

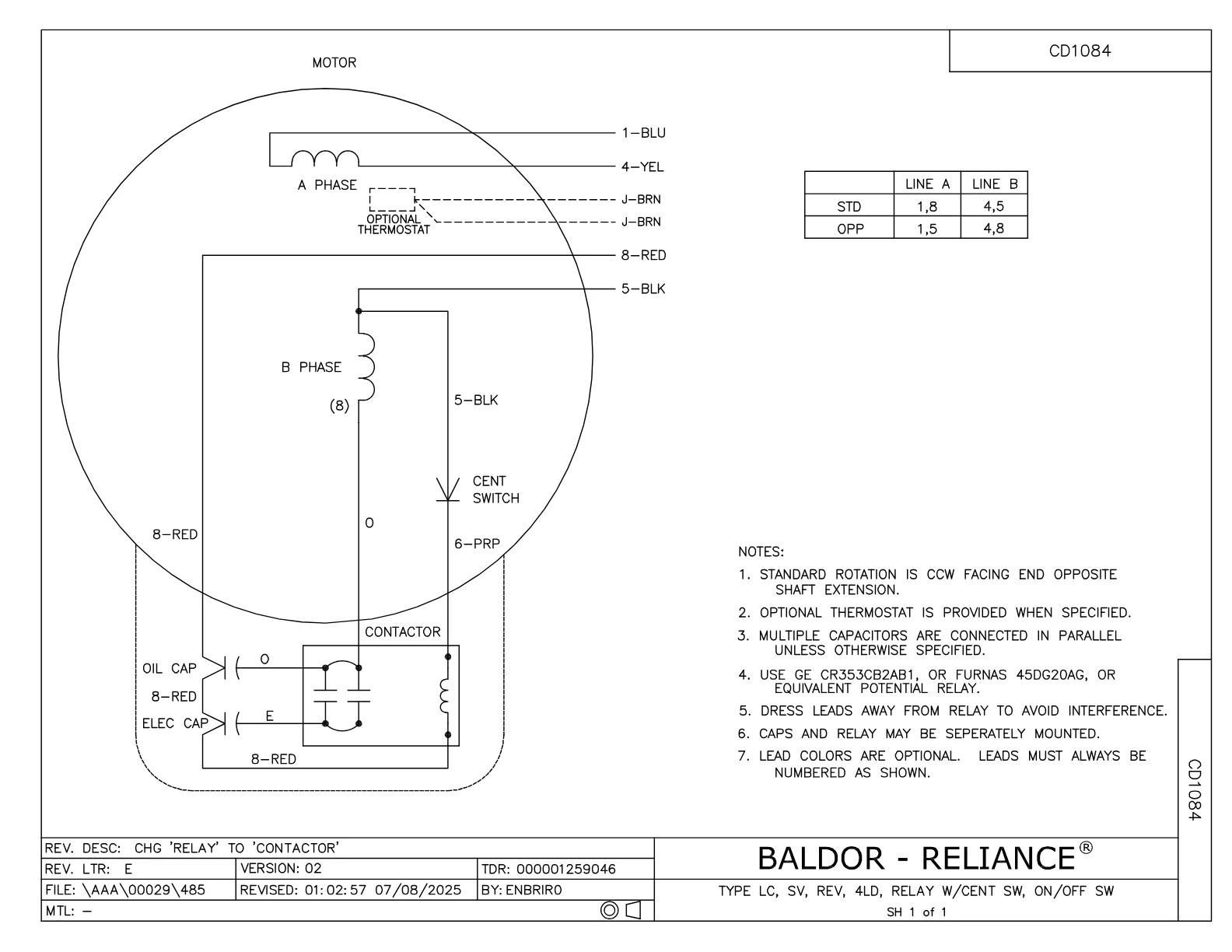

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·729 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor GDL2333T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	8 pcs	1,543 motors
SP5165	MODEL 39 DOUBLE ARM STATIONARY SWITCH	1 pcs	6 motors
HW4600A51	SEAL 1.688 X 2.686 X 0.313 SINGLE LIP-CR	1 pcs	12 motors
09FH4000SP	309 FH - BLACK PRIMER	1 pcs	131 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
