Baldor GDL1615T

Baldor-Reliance GDL1615T is a 16 HP, 1760 rpm, single-phase 208/230 V, 60 Hz, 256TZ frame, ODP enclosed farm duty general purpose AC electric motor.

BaldorMFR # GDL1615TSKU # YLSCANRVDRJXVE

EnclosureODP

Frame256TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency16.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance GDL1615T is a 16 HP, 1760 rpm, single-phase 208/230 V, 60 Hz, 256TZ frame, ODP enclosed farm duty general purpose AC electric motor.

Baldor GDL1615T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame256TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency16.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency208.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage62.000 A @ 230.0 V · 71.000 A @ 208.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)62.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeE

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 6 AWG, A PH

Motor type3956LC

Mounting arrangementF1

Number of poles4

Overall length24.19 IN

Power factor96

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenIncluded

RoHS statusROHS NON-COMPLIANT

Service factor1.00

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568121542

Nameplate

Catalog numberGDL1615T

Specification number39T017X522

Horsepower (HP)16

Voltage (V)208-230

Current (A)71-62

Speed (rpm)1760

Frame size256TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)E

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor96

Rating40C AMB-CONT

Drive end bearing6309

Opposite drive end bearing6307

EnclosureOPSB

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 16 hp

Line-to-line resistance at 25 °C (ohms)0.11 Ω / 0.419 Ohms B Ph

Temperature rise at rated load (°C)54° C

Start configurationDOL

Breakdown torque122 lb-ft

Pull-up torque64.6 lb-ft

Locked-rotor torque82.1 lb-ft

Starting current (A)331 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	42	91	96	96	96	95	93
Efficiency %	0	82.9	78.7	89.1	87.3	84.2	78.8
Speed rpm	1799	1785	1771	1753	1734	1710	1672
Line amps A	7.42	17.5	34.6	45.6	62.4	81.4	107
Power W	720	3682	7622	10103	13734	17764	22824
Torque lb-ft	0	12	23.9	36.2	48.7	61.6	75.8

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·112 KB·English

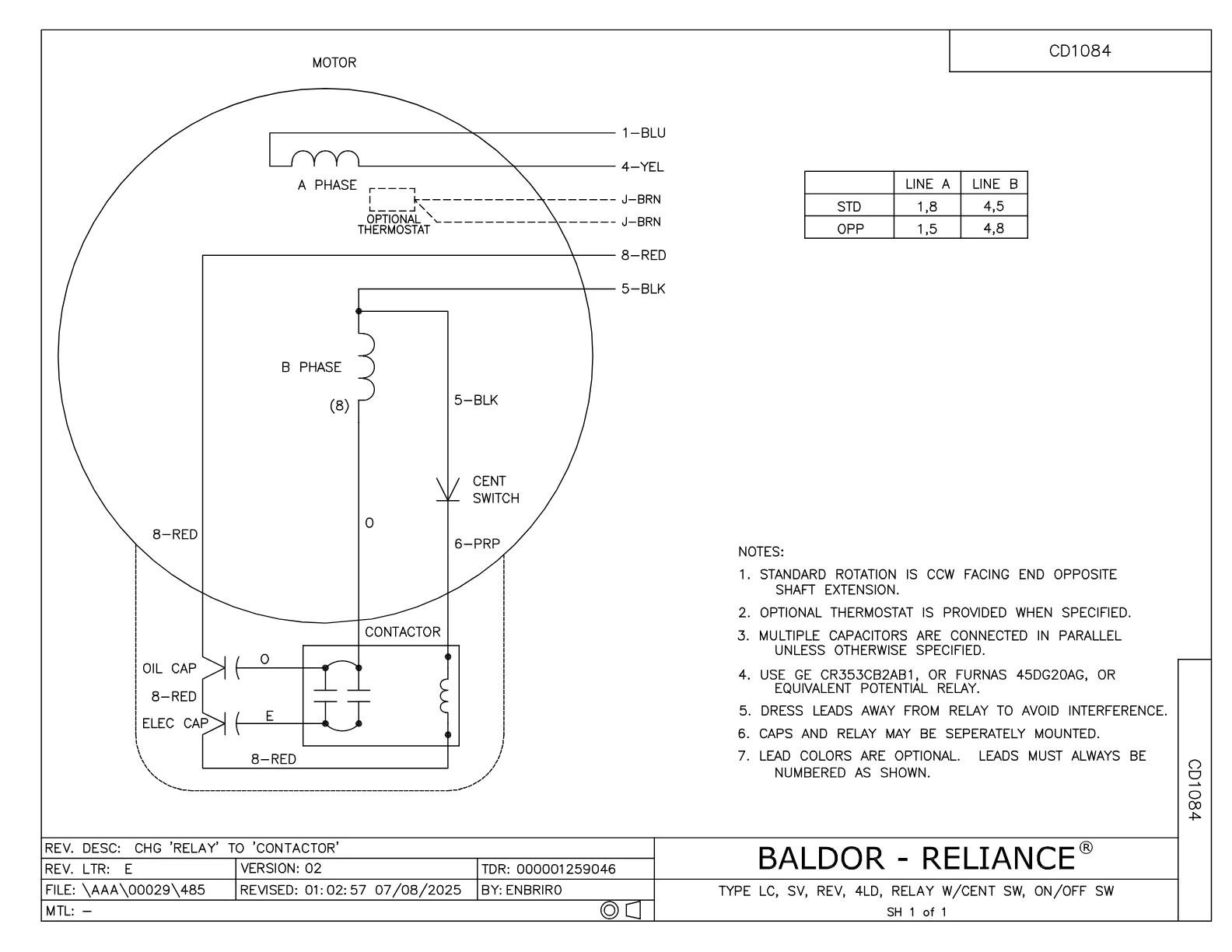

Wiring DiagramWiring DiagramPDF·49 KB·English

DatasheetDatasheetPDF·615 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor GDL1615T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	2 pcs	69 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
SP5165	MODEL 39 DOUBLE ARM STATIONARY SWITCH	1 pcs	6 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
