How can I get a price quote for Baldor GDL1607T?

You can request a fast quote for Baldor GDL1607T from Yılsa Engineering. Reference part number YLSVPP6OI8EHMC9. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor GDL1607T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor GDL1607T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor GDL1607T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor GDL1607T

Farm Duty - Centrifugal Grain Dryer Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 215TZ Frame, ODTF (Open Drip-Proof Tandem Fan) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # GDL1607TSKU # YLSVPP6OI8EHMC9

EnclosureODP

Frame215TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - Centrifugal Grain Dryer Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 215TZ Frame, ODTF (Open Drip-Proof Tandem Fan) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

Baldor GDL1607T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame215TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage32.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load82.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)32.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 8 AWG, A PH

Motor type3744LC

Mounting arrangementF1

Number of poles4

Overall length22.57 IN

Power factor90

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenIncluded

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568121528

Motor CategoryGrain Dryer Motor (Centrifugal)

Motor Supply Voltage230 V

Base RPM1725 rpm

Harmonization Code8501.40.6040

Weight161 lbs

ApplicationsHigh pressure grain drying and storage for commercial and farm applications.

Additional DetailsShaft length is 1” longer than NEMA standard. Screens on ODP to protect against entry of trash, snakes and rodents. Three phase ratings meet EPAct efficiencies. Sealed bearings, drive end seal and v-ring slinger to prevent moisture and contaminant ingress on TEFC motors.

Mounting TypeFoot

Nameplate

Catalog numberGDL1607T

Specification number37M320-1630G1

Horsepower (HP)7.5

Voltage (V)230

Current (A)32

Speed (rpm)1725

Frame size215TZ

Frequency (Hz)60

Phase1

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)82.5

Power factor90

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureODTF

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.187 Ω / 1.18 Ohms B Ph

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque65 lb-ft

Pull-up torque40 lb-ft

Locked-rotor torque75 lb-ft

Starting current (A)250 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	32	74	87	91	91	90	87	90
Efficiency %	0	66.3	78.9	82.6	83.6	83.2	80.5	83.4
Speed rpm	1798	1788	1778	1766	1751	1735	1708	1741
Line amps A	10	12.6	18.1	24.4	31.6	39.9	50	36.6
Power W	736	2151	3618	5102	6635	8269	10038	7615
Torque lb-ft	0	5.61	11.3	16.8	22.3	27.9	33.3	25.7

Documents & CAD

For this product 4

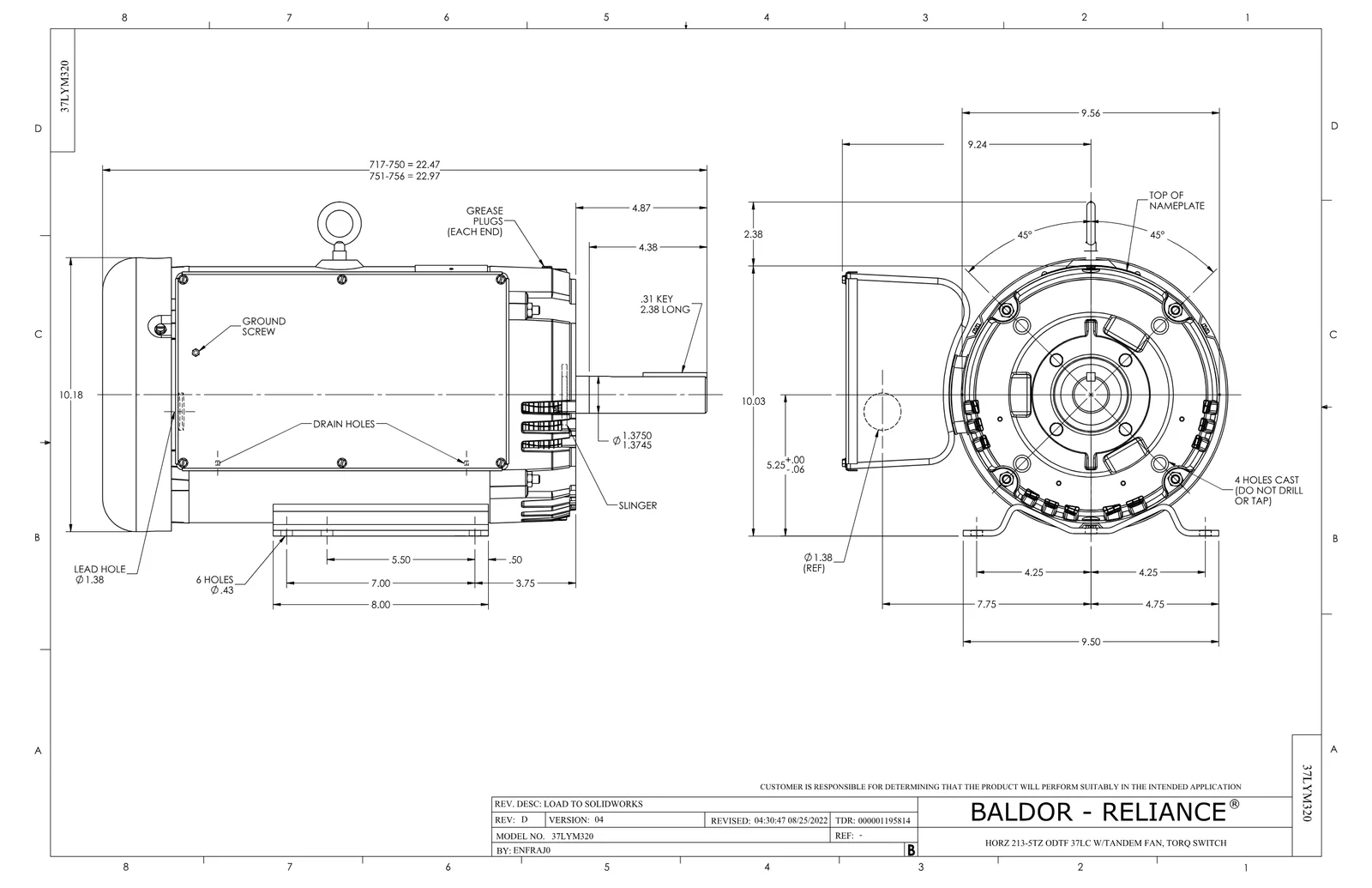

Dimension DrawingDimension SheetPDF·140 KB·English

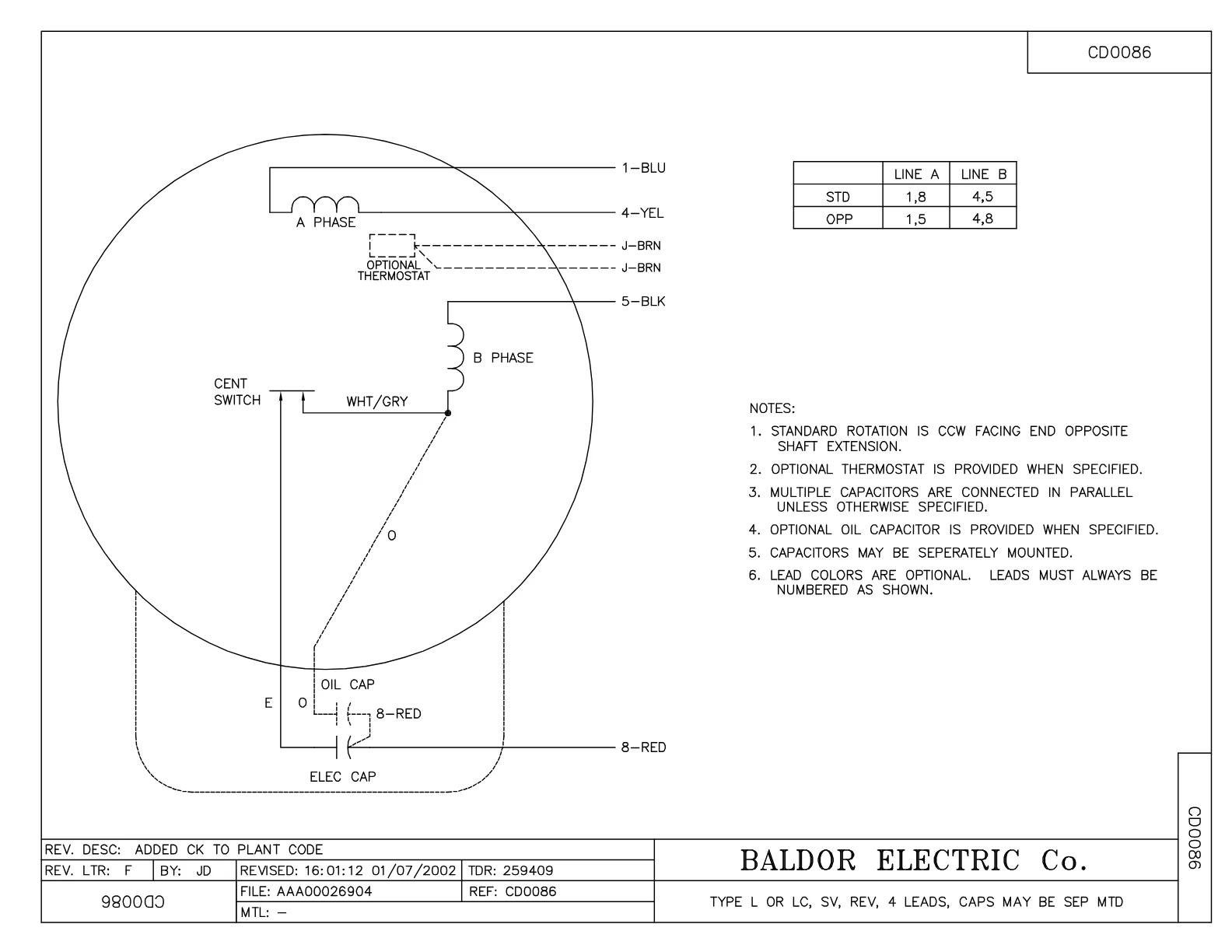

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·632 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor GDL1607T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3060F10SP	CYL OIL CAP 60MFD/370V	1 pcs	14 motors
EC1216C06SP	ELEC CAP, 216-259 MFD, 250V, 2.06D X 4.	3 pcs	45 motors
37FN3000A01SP	EXFN, PLASTIC, 8.50 OD, 1.175 ID	1 pcs	1 motors
37FH4000A05SP	DRIP COVER, W/ PRIMER	1 pcs	9 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors

Accessories 1

Genuine accessories that can be used with the Baldor GDL1607T motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
