How can I get a price quote for Baldor GDL1605T?

You can request a fast quote for Baldor GDL1605T from Yılsa Engineering. Reference part number YLSIBME6SOCWFMM. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor GDL1605T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor GDL1605T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor GDL1605T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor GDL1605T

Baldor GDL1605T is a 5 HP, 1725 rpm, single-phase 230 V 60 Hz, 184TZ frame, ODP enclosure general purpose farm duty AC electric motor.

BaldorMFR # GDL1605TSKU # YLSIBME6SOCWFMM

EnclosureODP

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor GDL1605T is a 5 HP, 1725 rpm, single-phase 230 V 60 Hz, 184TZ frame, ODP enclosure general purpose farm duty AC electric motor.

Baldor GDL1605T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame184TZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency5.000 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage22.500 A @ 230.0 V

Design codeL

Drip coverDrip Cover

Duty ratingCONT

Efficiency at 100% load80.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)22.5 a

Front face codeDrip Cover Mounting

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3646LC

Mounting arrangementF1

Number of poles4

Overall length16.87 IN

Power factor76

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorStandard

Rodent screenIncluded

Service factor1.00

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568121511

Nameplate

Catalog numberGDL1605T

Specification number36M937W417G1

Horsepower (HP)5

Voltage (V)230

Current (A)22.5

Speed (rpm)1725

Frame size184TZ

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)J

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)80

Power factor76

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6205

EnclosureODTF

Nameplate numberNP1256L

Performance

General characteristics· 230 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)0.349 Ω / 2.38 Ohms B Ph

Temperature rise at rated load (°C)104° C

Start configurationDOL

Breakdown torque45 lb-ft

Pull-up torque39 lb-ft

Locked-rotor torque45 lb-ft

Starting current (A)174 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	26	60	77	85	88	90	90
Efficiency %	0	65.3	77.8	81.7	82.5	81.5	79.3
Speed rpm	1798	1785	1771	1756	1739	1719	1694
Line amps A	8.5	10.3	13.5	17.5	22.2	27.7	34
Power W	508	1456	2425	3435	4491	5617	6827
Torque lb-ft	0	3.75	7.5	11.25	15	18.75	22.5

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·110 KB·English

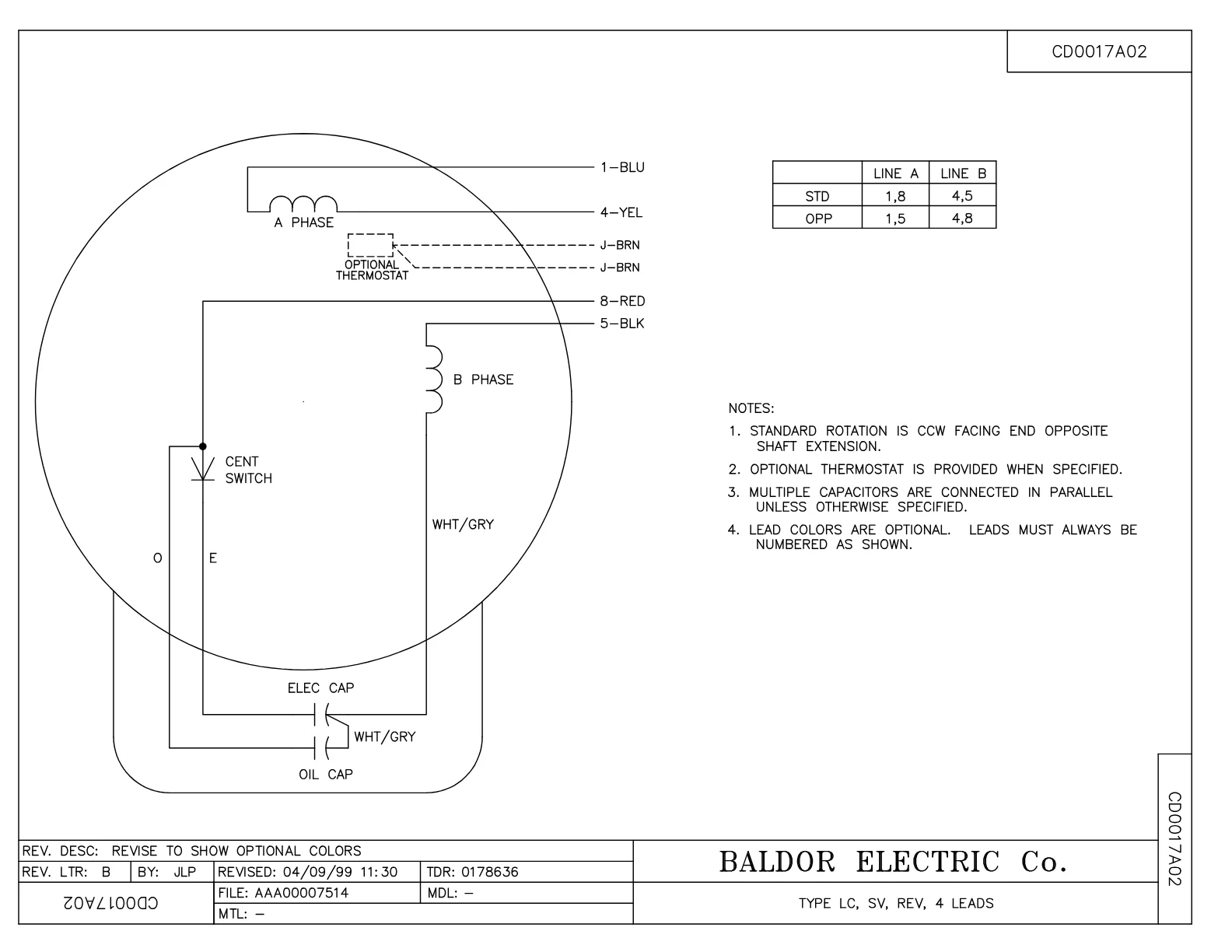

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·591 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor GDL1605T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000A01SP	EXFN, PLASTIC, 7.00 OD, .912 ID	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
