Baldor FPM2556T-4

Baldor-Reliance FPM2556T-4 is a 150 HP @ 60 Hz / 125 HP @ 50 Hz, 3540/2940 rpm, three-phase 460 V @ 60 Hz and 380 V @ 50 Hz, 405TS frame, OPSB enclosed fire pump motor.

BaldorMFR # FPM2556T-4SKU # YLSM7XCEZE69UI4

EnclosureOPSB

Frame405TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 50 HZ · 150.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance FPM2556T-4 is a 150 HP @ 60 Hz / 125 HP @ 50 Hz, 3540/2940 rpm, three-phase 460 V @ 60 Hz and 380 V @ 50 Hz, 405TS frame, OPSB enclosed fire pump motor.

Baldor FPM2556T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame405TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 50 HZ · 150.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage at frequency460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage165.000 A @ 460.0 V · 168.000 A @ 380.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)165.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 2 AWG

Motor type4466M

Mounting arrangementF1

Number of poles2

Overall length31.84 IN

Power factor92

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2940 rpm · 3540 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568824276

Nameplate

Catalog numberFPM2556T-4

Ingress protection (IP)23

Specification number44E020W360H2

Frame size405TS

Frequency (Hz)60

Horsepower (HP)150

Speed (rpm)3540

Frequency (Hz)50

Horsepower (HP)125

Speed (rpm)2940

Voltage (V)460

Code letter (locked rotor kVA)F

Voltage (V)380

Code letter (locked rotor kVA)F

Current (A)165

NEMA design letterB

Current (A)168

NEMA design letterB

Efficiency (%)93.6

Service factor1.15

Power factor92

Efficiency (%)93

Service factor1.15

Power factor92

Rating40C AMB-CONT

Drive end bearing6313

GreasePOLYREX EM

Opposite drive end bearing6312

Motor weight815

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 150 hp

Line-to-line resistance at 25 °C (ohms)0.0573 Ω

Temperature rise at rated load (°C)55° C

Temperature rise at service factor load (°C)68° C

Start configurationDOL

Breakdown torque909 lb-ft

Pull-up torque205 lb-ft

Locked-rotor torque237.5 lb-ft

Starting current (A)1023 A

Line-to-line resistance at 25 °C (ohms)0.0573 Ω

Temperature rise at rated load (°C)56° C

Temperature rise at service factor load (°C)71° C

Start configurationDOL

Breakdown torque874 lb-ft

Pull-up torque215 lb-ft

Locked-rotor torque249 lb-ft

Starting current (A)996 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	10	76	89	91	92	90	91	91
Efficiency %	0	91.3	94.4	94.6	93.8	93.1	92.6	93.3
Speed rpm	3599	3588	3574	3561	3544	3525	3510	3533
Line amps A	30.5	51.4	85.8	124	165	210	249	192
Power W	2379	31049	60778	90377	120486	151241	179930	138939
Torque lb-ft	0	55.6	113	169	224	281	334	258

Documents & CAD

For this product 3

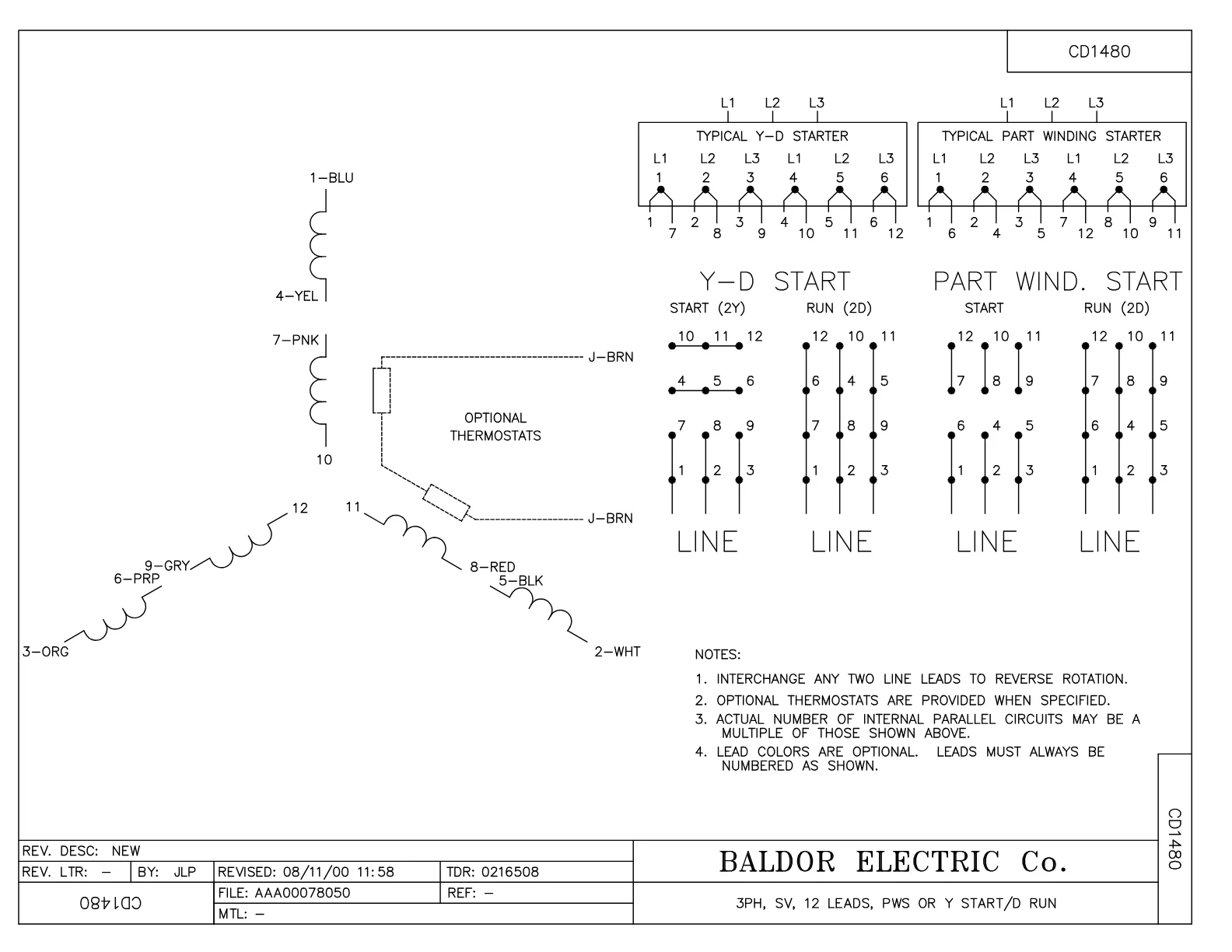

Wiring DiagramWiring DiagramPDF·57 KB·English

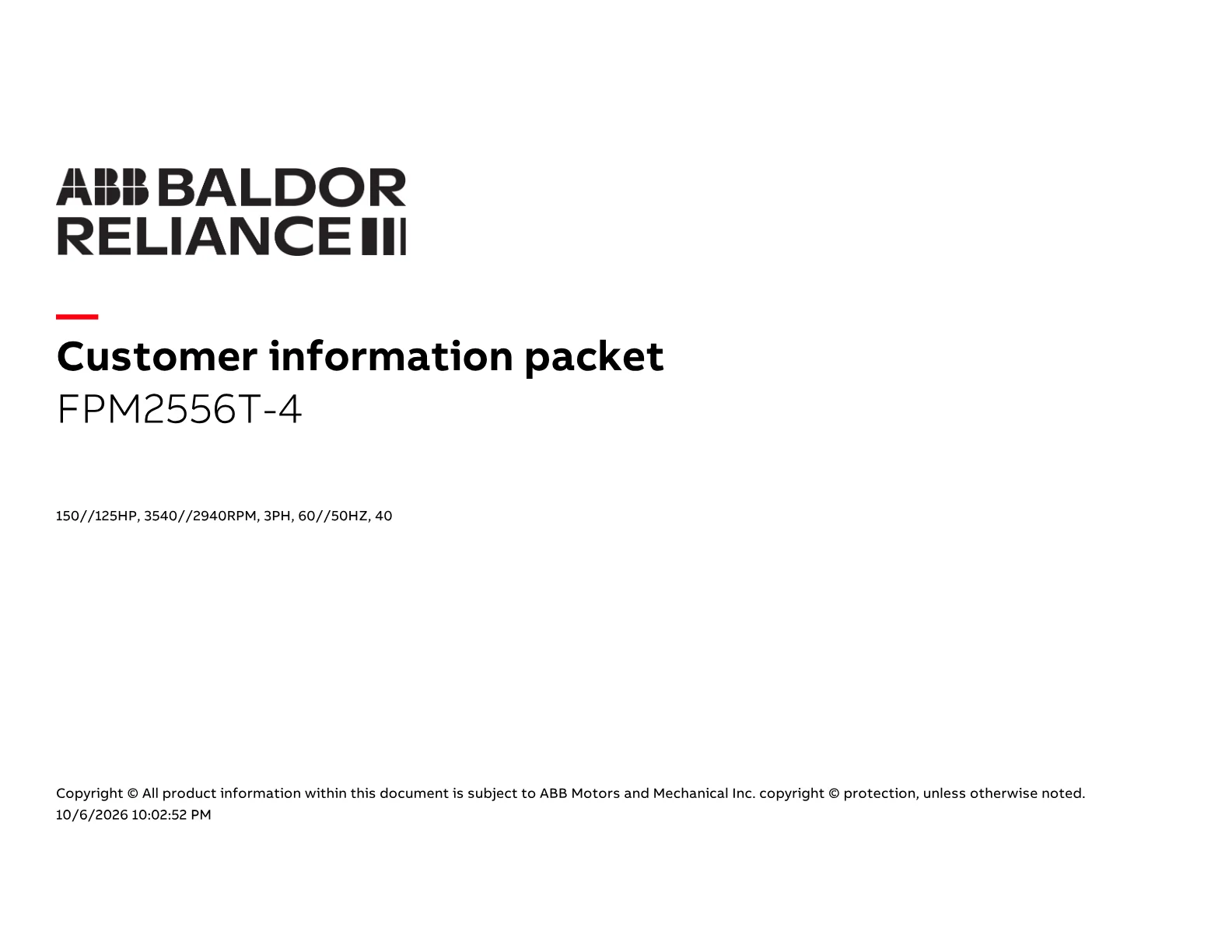

DatasheetDatasheetPDF·711 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

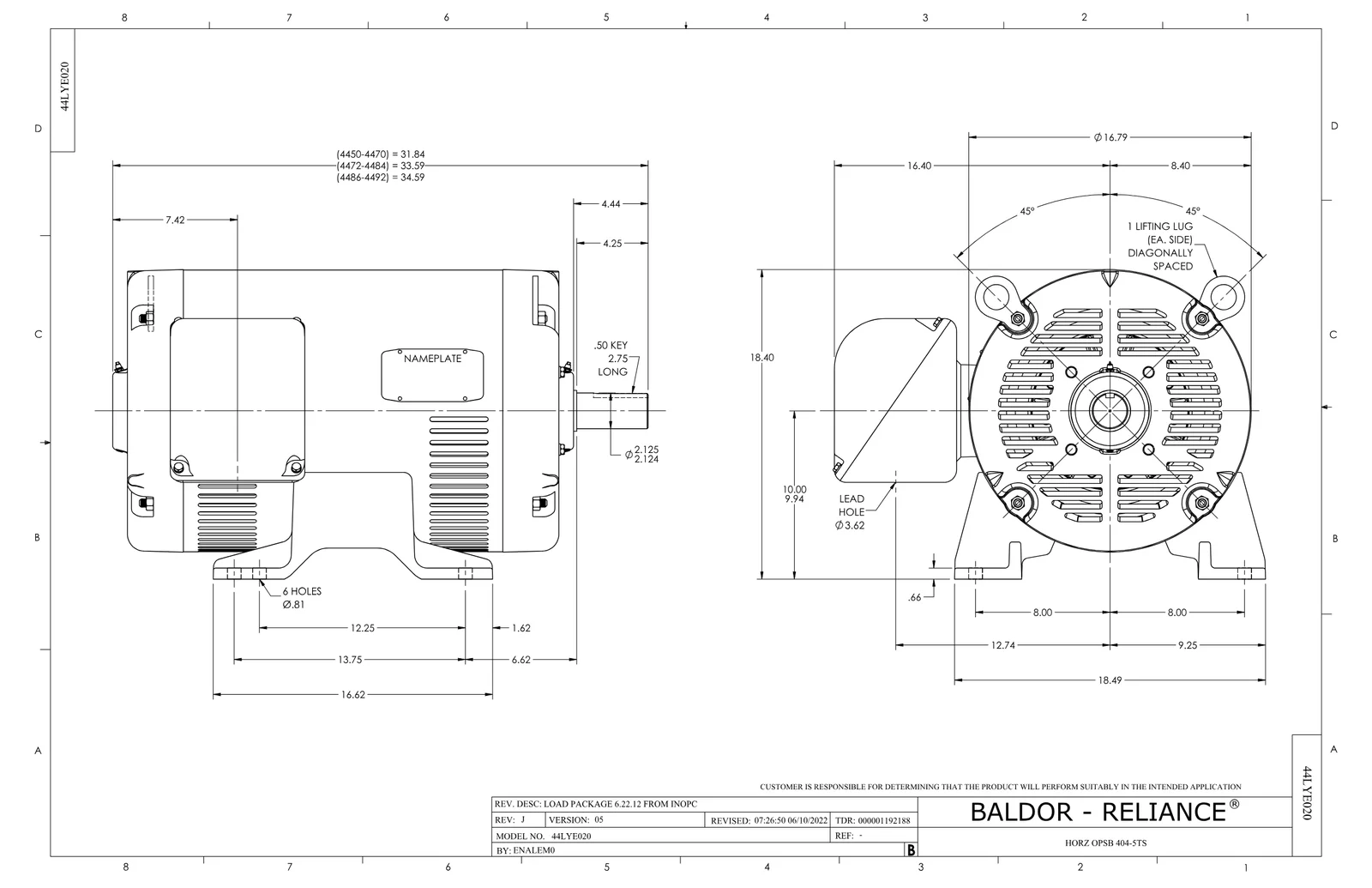

Dimension DrawingDimension SheetPDF·128 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor FPM2556T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	8 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
