Baldor FPM2551TS

Baldor-Reliance FPM2551TS is a 75 HP @ 60 Hz / 60 HP @ 50 Hz, 1770/1470 rpm, three-phase 230/460 V @ 60 Hz and 190/380 V @ 50 Hz, 365TS frame, ODP enclosed fire pump motor.

BaldorMFR # FPM2551TSSKU # YLSVH4KK3H6XMS

EnclosureODP

Frame365TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 50 HZ · 75.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance FPM2551TS is a 75 HP @ 60 Hz / 60 HP @ 50 Hz, 1770/1470 rpm, three-phase 230/460 V @ 60 Hz and 190/380 V @ 50 Hz, 365TS frame, ODP enclosed fire pump motor.

Baldor FPM2551TS

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame365TS

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency60.000 HP @ 50 HZ · 75.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 190.0 V @ 50 HZ · 460.0 V @ 60 HZ · 380.0 V @ 50 HZ

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage87.000 A @ 460.0 V · 84.000 A @ 380.0 V · 174.000 A @ 230.0 V · 168.000 A @ 190.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)84.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size12 @ 8 AWG

Motor type4272M

Mounting arrangementF1

Number of poles4

Overall length32.35 IN

Power factor86

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1470 rpm · 1770 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811948

Nameplate

Catalog numberFPM2551TS

Ingress protection (IP)23

Specification number42E360W977H2

Frame size365TS

Frequency (Hz)60

Horsepower (HP)75

Speed (rpm)1770

Frequency (Hz)50

Horsepower (HP)60

Speed (rpm)1470

Voltage (V)230/460

Code letter (locked rotor kVA)F

Voltage (V)190/380

Code letter (locked rotor kVA)F

Current (A)174/87

NEMA design letterB

Current (A)168/84

NEMA design letterB

Efficiency (%)94.1

Service factor1.15

Power factor86

Efficiency (%)93.6

Service factor1.15

Power factor86

Rating40C AMB-CONT

Drive end bearing6313

GreasePOLYREX EM

Opposite drive end bearing6311

Motor weight570

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 75 hp

Line-to-line resistance at 25 °C (ohms)0.37298 Ω

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque585 lb-ft

Pull-up torque301 lb-ft

Locked-rotor torque348 lb-ft

Starting current (A)502 A

Line-to-line resistance at 25 °C (ohms)0.0893 Ω

Temperature rise at rated load (°C)58° C

Temperature rise at service factor load (°C)73° C

Start configurationDOL

Breakdown torque567 lb-ft

Pull-up torque316 lb-ft

Locked-rotor torque366 lb-ft

Starting current (A)492 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	56	76	83	86	86	86	86
Efficiency %	0	93	94.9	94.9	94.3	93.3	92.1	93.7
Speed rpm	1798.9	1794.3	1787.6	1780.4	1772.3	1763.3	1752.3	1767
Line amps A	27.1	33.9	48.4	66.4	86.5	109	134	100
Power W	915	15102	29446	44054	59206	75055	91164	68715
Torque lb-ft	0	55.1	110	165	222	280	337	257

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·45 KB·English

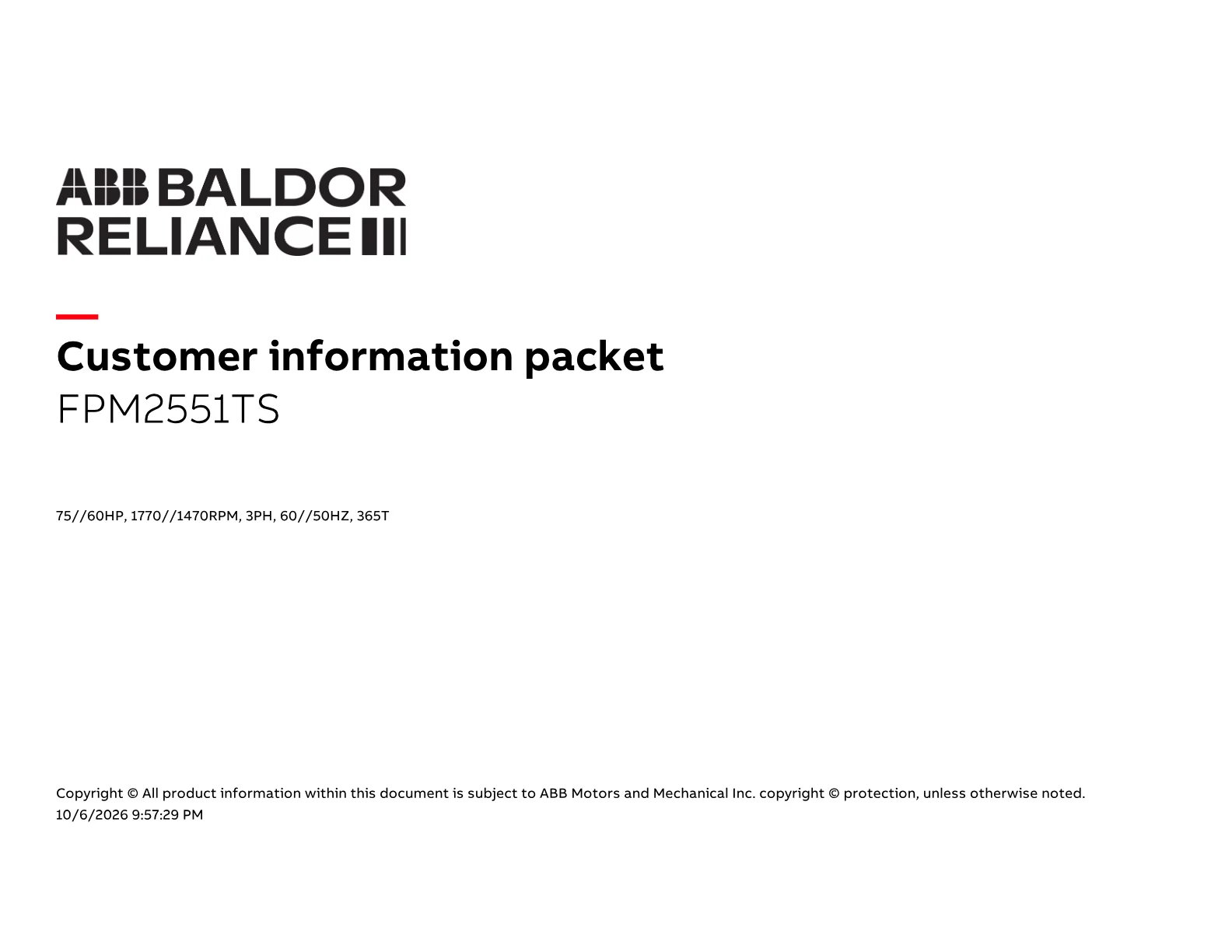

DatasheetDatasheetPDF·695 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

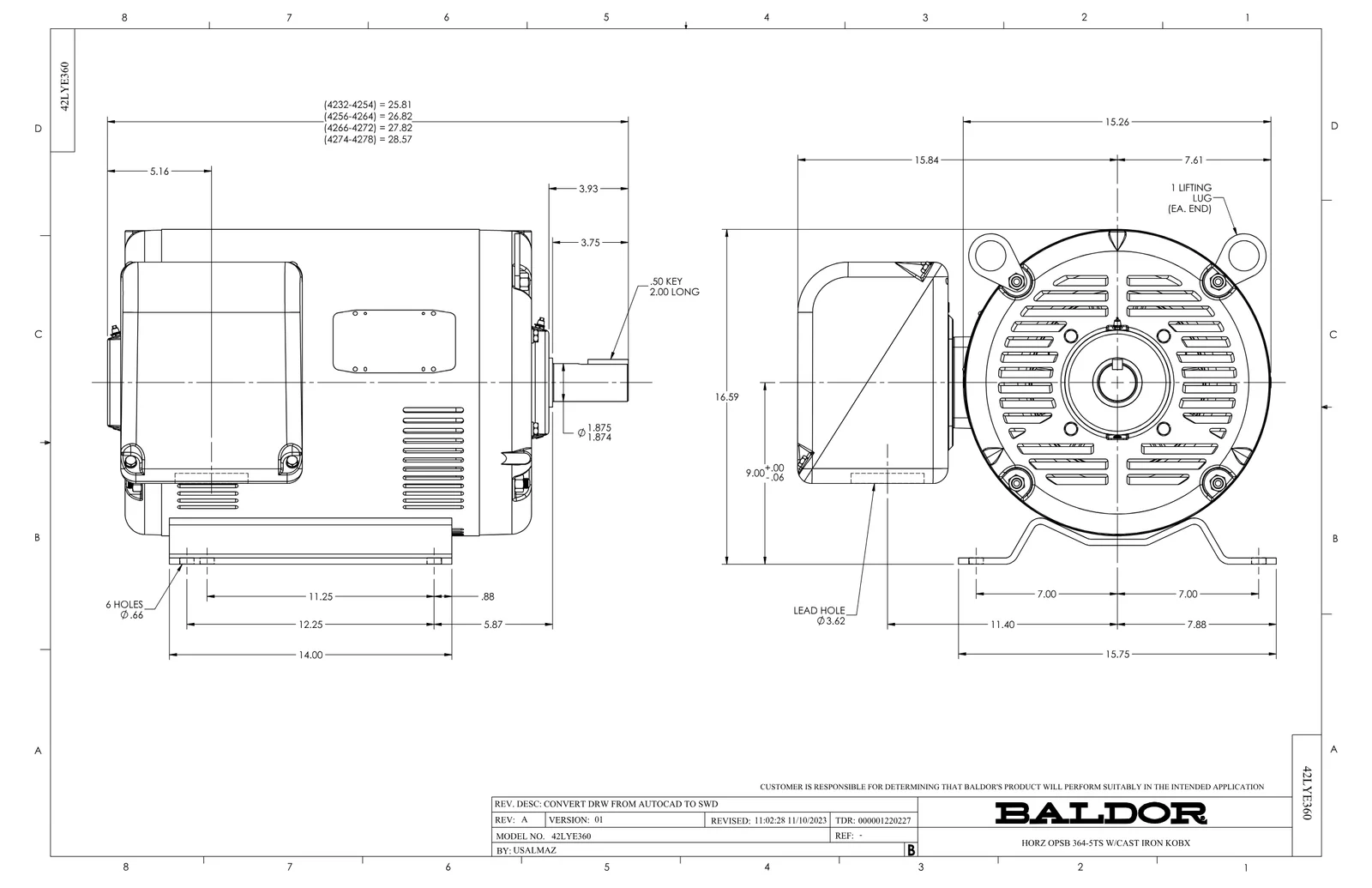

Dimension DrawingDimension SheetPDF·124 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor FPM2551TS motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
