Baldor FPM2513T

Baldor-Reliance FPM2513T is a 15 HP @ 60 Hz / 10 HP @ 50 Hz, 1760/1460 rpm, three-phase 230/460 V @ 60 Hz and 190/380 V @ 50 Hz, 254T frame, ODP enclosed fire pump motor.

BaldorMFR # FPM2513TSKU # YLSOZBTDVDZYU3J

EnclosureODP

Frame254T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 50 HZ · 15.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance FPM2513T is a 15 HP @ 60 Hz / 10 HP @ 50 Hz, 1760/1460 rpm, three-phase 230/460 V @ 60 Hz and 190/380 V @ 50 Hz, 254T frame, ODP enclosed fire pump motor.

Baldor FPM2513T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame254T

Frame materialSteel

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 50 HZ · 15.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 380.0 V @ 50 HZ · 230.0 V @ 60 HZ · 190.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA EEV · CULUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage35.000 A @ 230.0 V · 29.200 A @ 190.0 V · 17.500 A @ 460.0 V · 14.600 A @ 380.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load91.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)14.6 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 12 AWG

Motor type3936M

Mounting arrangementF1

Number of poles4

Overall length21.69 IN

Power factor87

Product familyFire Pump Motor

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm · 1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568821275

Nameplate

Catalog numberFPM2513T

Ingress protection (IP)23

Specification number39D101X948H2

Frame size254T

Frequency (Hz)60

Horsepower (HP)15

Speed (rpm)1760

Frequency (Hz)50

Horsepower (HP)10

Speed (rpm)1460

Voltage (V)230/460

Code letter (locked rotor kVA)F

Voltage (V)190/380

Code letter (locked rotor kVA)H

Current (A)35/17.5

NEMA design letterB

Current (A)29.2/14.6

NEMA design letterB

Efficiency (%)91

Service factor1.15

Power factor87

Efficiency (%)90.2

Service factor1.15

Power factor85

Rating40C AMB-CONT

Drive end bearing6309

GreasePOLYREX EM

Opposite drive end bearing6208

Motor weight205

Insulation classF

Phase3

EnclosureOPSB

CC number010A

Nameplate numberNP3454L

Performance

General characteristics· 460 V, 60 Hz, 15 hp

Line-to-line resistance at 25 °C (ohms)0.733 Ω

Temperature rise at rated load (°C)33° C

Temperature rise at service factor load (°C)42° C

Start configurationDOL

Breakdown torque139 lb-ft

Pull-up torque56.4 lb-ft

Locked-rotor torque80.6 lb-ft

Starting current (A)105 A

Line-to-line resistance at 25 °C (ohms)0.733 Ω

Temperature rise at rated load (°C)25° C

Temperature rise at service factor load (°C)31° C

Start configurationDOL

Breakdown torque133 lb-ft

Pull-up torque57.8 lb-ft

Locked-rotor torque82.7 lb-ft

Starting current (A)101 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	56	77	84	87	88	88	88
Efficiency %	0	87.6	91.5	92.2	91.4	90.4	88.9	90.8
Speed rpm	1799	1791	1782	1772	1761	1749	1735	1754
Line amps A	5.89	7.21	10.1	13.6	17.5	22	26.7	20.2
Power W	341	3195	6201	9149	12131	15509	18777	14158
Torque lb-ft	0	11	22.4	33.5	44.3	56.4	67.7	51.6

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·688 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

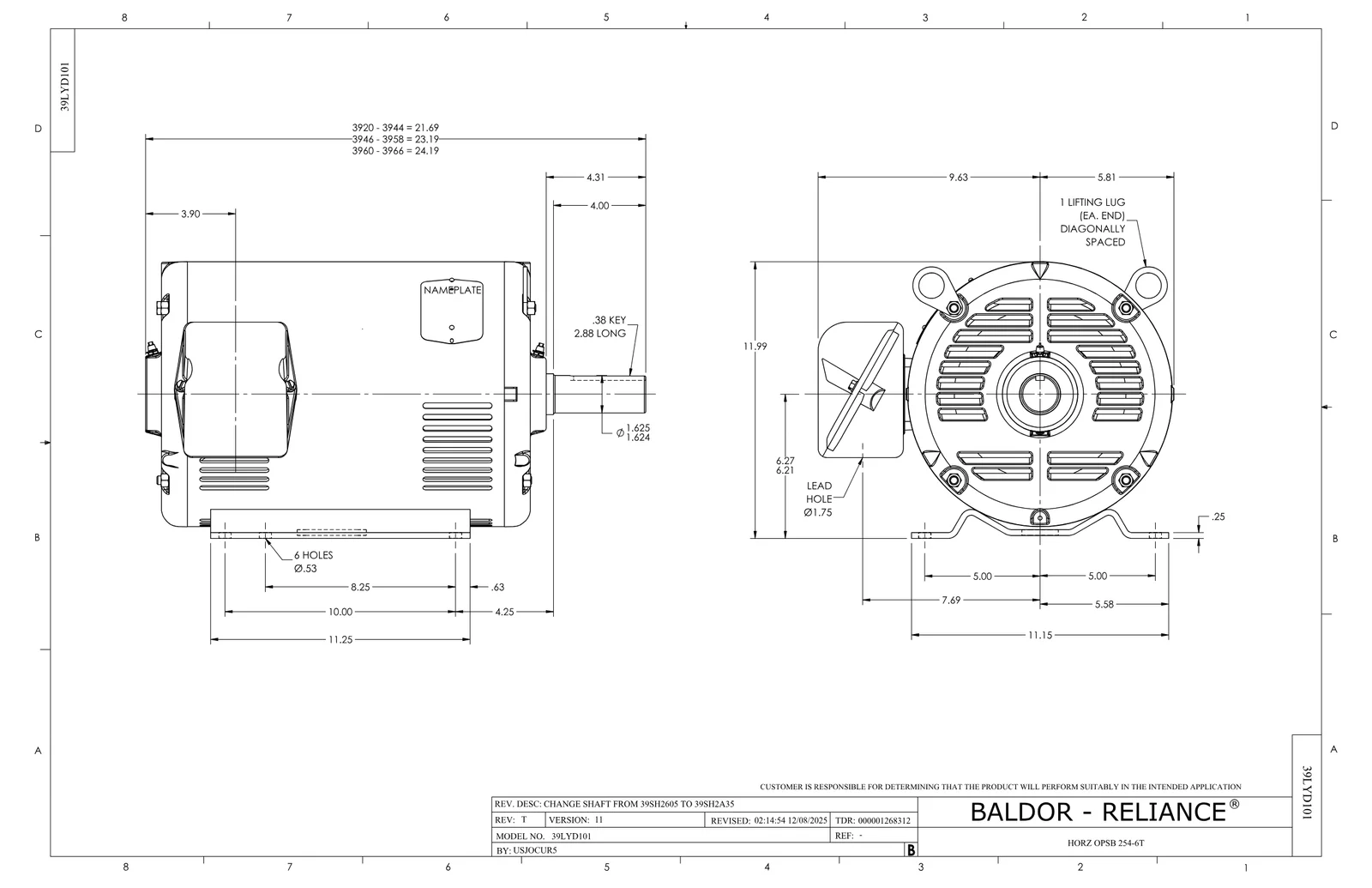

Dimension DrawingDimension SheetPDF·120 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor FPM2513T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
39EP3200A01SP	FR/PU ENDPLATE, MACH	1 pcs	100 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
