Baldor FDL3733TM

Farm Duty - General Purpose Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1730 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # FDL3733TMSKU # YLS5ZB5TIU8504E

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Farm Duty - General Purpose Motor - 7-1/2 hp, 1800 rpm, 1 ph, 230 V, 213T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1730 rpm Base, Foot Mount, Continuous Duty

Baldor FDL3733TM

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency7.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage30.000 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load84.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)30.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitCap Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size2 @ 10 AWG, A PH

Motor type3740LC

Mounting arrangementF1

Number of poles4

Overall length19.02 IN

Power factor97

Product familyGeneral Purpose

Product typeFARM DUTY

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.00

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1730 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingDo Not Use

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Manual Thermal Overload

Winding thermal 1 locationKO

Winding thermal 2None

UPC781568122006

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage230 V

Base RPM1730 rpm

Warranty2 Year Warranty

Type Of BearingBall

Harmonization Code8501.40.6040

Weight142 lbs

ApplicationsWide variety of agri-duty and industrial applications.

Additional DetailsSealed ball bearings, lubricated with high temperature moistureresistant grease. Drive end seal and v-ring slinger to prevent moisture and contaminant ingress. Condensation drains, gasketed cast conduit boxes. Epoxy paint protects motor from harsh environments.

Mounting TypeFoot

Nameplate

Catalog numberFDL3733TM

Specification number37N371T879G1

Horsepower (HP)7.5

Voltage (V)230

Current (A)30

Speed (rpm)1730

Frame size213T

Frequency (Hz)60

Phase1

Service factor1.00

Code letter (locked rotor kVA)H

NEMA design letterL

Insulation classF

NEMA nominal efficiency (%)84

Power factor97

Rating40C AMB-CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP1280L

Performance

General characteristics· 230 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.199 Ω / 0.516 Ohms B Ph

Temperature rise at rated load (°C)87° C

Start configurationDOL

Breakdown torque81.3 lb-ft

Pull-up torque60 lb-ft

Locked-rotor torque88.4 lb-ft

Starting current (A)222.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%
Power factor %	38	79	90	94	96	96	96
Efficiency %	0	68	81.1	84.7	85.2	83.8	80.6
Speed rpm	1799	1782	1767	1750	1731	1708	1680
Line amps A	8.67	11.3	16.5	22.6	29.6	37.5	46.9
Power W	755	2052	3427	4904	6528	8313	10399
Torque lb-ft	0	5.51	11.1	16.7	22.6	28.7	35.1

Documents & CAD

For this product 4

Dimension DrawingDimension SheetPDF·120 KB·English

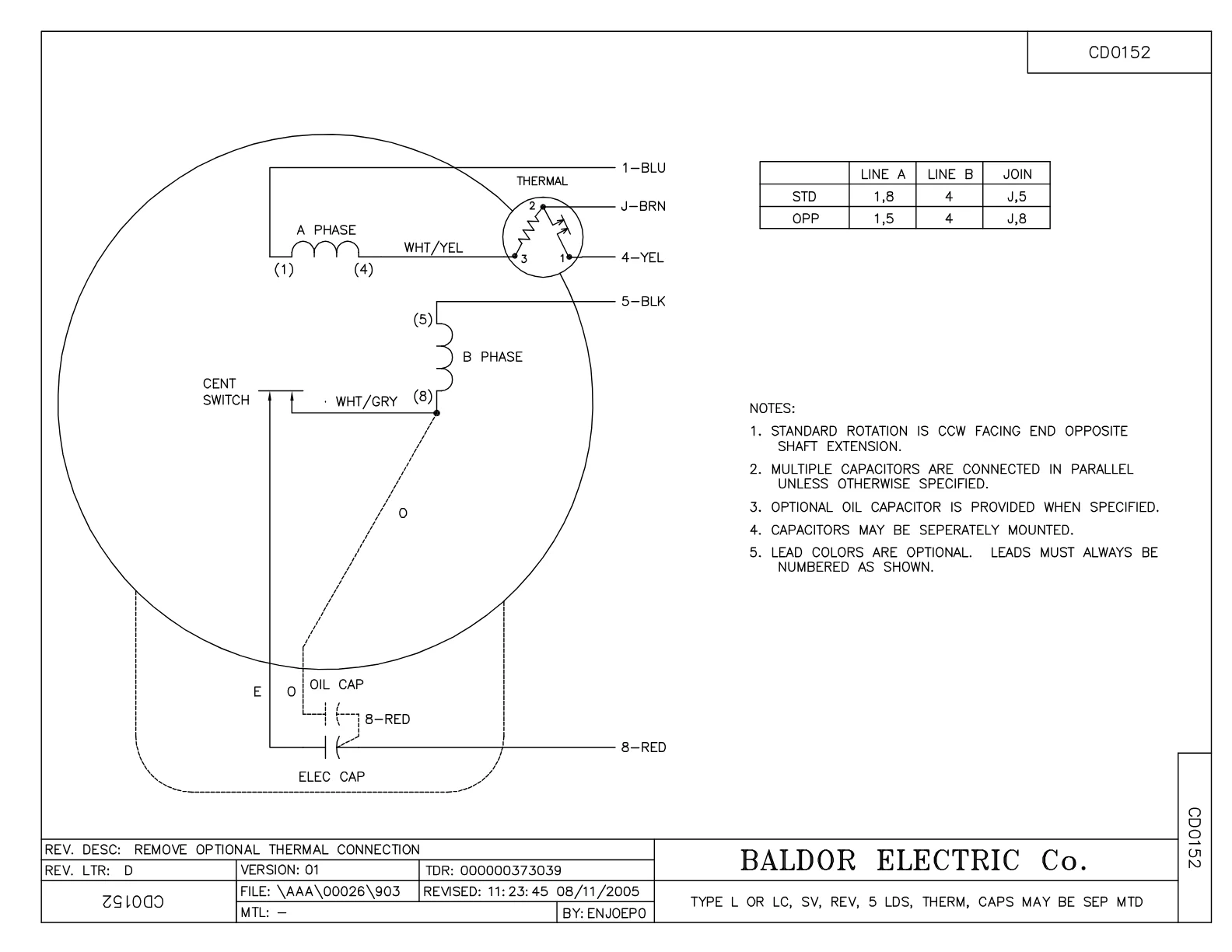

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·607 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor FDL3733TM motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
OC3040F18SP	7YL OIL CAP 40MFD/370V	1 pcs	30 motors
TPLED1024SP	THERMAL 1PH 1.5 MAN REF LED945 TDR #5817	1 pcs	5 motors
EC1189C06SP	ELEC CAP, 189-227 MFD, 250V, 2.06D X 4.	2 pcs	7 motors
EC1161C06SP	ELEC CAP, 161-193 MFD, 250V, 2.06D X 4.	2 pcs	6 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
