Baldor FDAOL3507A

FDAOL3507A

BaldorMFR # FDAOL3507ASKU # YLSCCYSCAP0O4ME

EnclosureTEAO

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor FDAOL3507A (FDAOL3507A) is supplied genuine and fast by Yılsa Engineering. Get an instant quote for Baldor FDAOL3507A — price, stock availability and technical specifications.

Baldor FDAOL3507A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEAO

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency.750 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUS

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.100 A @ 230.0 V · 5.400 A @ 208.0 V · 8.200 A @ 115.0 V

Design codeN

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load74.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.1 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel Or Lead Hole

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3428LC

Mounting arrangementF1

Number of poles4

Overall length12.08 IN

Power factor80

Product familyGeneral Purpose

Pulley end bearing typeSealed Bearing

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.20

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568866726

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberFDAOL3507A

Specification number34M951Y166G1

Horsepower (HP).75

Voltage (V)115/230

Current (A)8.2/4.1

Speed (rpm)1725

Frame size56H

Frequency (Hz)60

Phase1

Service factor1.20

Code letter (locked rotor kVA)L

NEMA design letterN

Insulation classF

NEMA nominal efficiency (%)74

Power factor80

Rating40C AMB-CONT

Drive end bearing6203

Opposite drive end bearing6203

EnclosureTEAO

Nameplate numberNP1280L

Performance

General characteristics· 115 V, 60 Hz, 0.75 hp

Line-to-line resistance at 25 °C (ohms)0.732 Ω / 1.8 Ohms B Ph

Temperature rise at rated load (°C)62° C

Temperature rise at service factor load (°C)73° C

Start configurationDOL

Breakdown torque5.7 lb-ft

Pull-up torque4.7 lb-ft

Locked-rotor torque7.5 lb-ft

Starting current (A)62 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	23	43	61	72	80	65	85	68
Efficiency %	0	53.6	67.9	73.1	73.9	93.1	71.5	89.3
Speed rpm	1798	1784	1770	1755	1739	1717	1694	1721
Line amps A	5.4	5.4	6	7	8.2	9.8	11.6	9.48
Power W	143	266	418	576	752	736	1137	739
Torque lb-ft	0	0.563	1.13	1.69	2.25	2.81	3.38	2.7

Documents & CAD

For this product 3

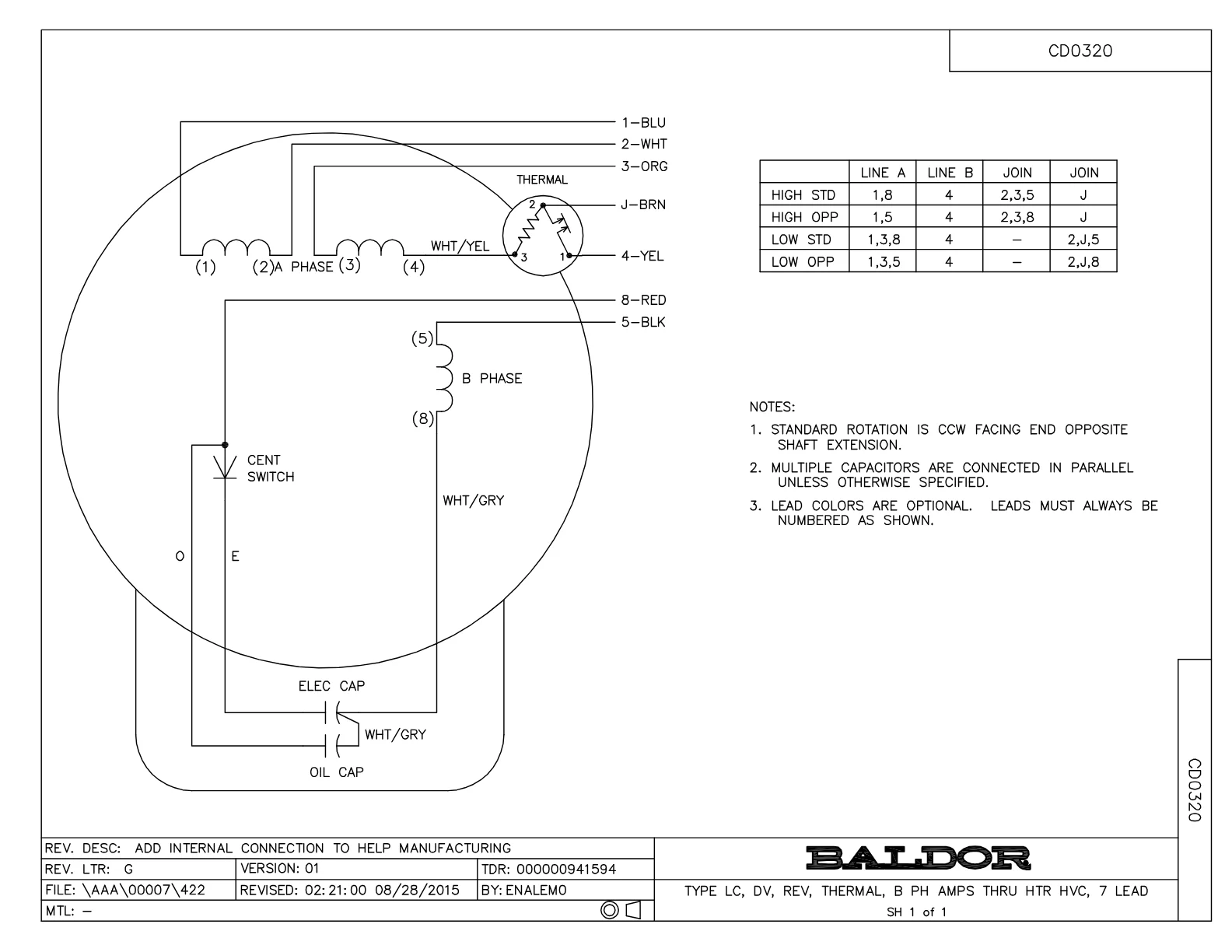

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·593 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·110 KB·English

CAD Files 3

3D Model

SolidWorks.sldprt · 1.3 MB

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor FDAOL3507A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3020F12SP	CAPACITORS 20 MFD 370 VAC	1 pcs	38 motors
EC1460A05SP	ELEC CAP, 460-552 MFD, 125V, 2.06D X 3.	1 pcs	17 motors
HW4600B39SP	V-RING SLINGER 0.550 X 0.790 X .18 VITON	1 pcs	142 motors
34CB4501SP	TERMINAL BOX LID, STAMPED X (PLATED)	1 pcs	95 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
