Baldor EWCM3212T

General Purpose Motor - 5 hp, 3600 rpm, 3 ph, 230/460 V, 182TCZ Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EWCM3212TSKU # YLSX75OTT32B8TZ

EnclosureODP

Frame182TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 5 hp, 3600 rpm, 3 ph, 230/460 V, 182TCZ Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 3450 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EWCM3212T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame182TCZ

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.800 A @ 208.0 V · 6.000 A @ 460.0 V · 12.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load86.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3622M

Mounting arrangementF1

Number of poles2

Overall length18.32 IN

Power factor91

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenIncluded

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568810231

Base RPM3450 rpm

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage230/460 V

Mounting TypeRigid Base

Weight63 lbs

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEWCM3212T

Specification number36J678S040G1

Horsepower (HP)5

Voltage (V)230/460

Current (A)12/6

Speed (rpm)3450

Frame size182TCZ

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterA

Insulation classF

NEMA nominal efficiency (%)86.5

Power factor91

Rating40C AMB-CONT

CC number010A

Drive end bearing6207

Opposite drive end bearing6205

EnclosureOPSB

Nameplate numberNP1259L

Performance

General characteristics· 460 V, 60 Hz, 5 hp

Line-to-line resistance at 25 °C (ohms)3.07 Ω

Temperature rise at rated load (°C)34° C

Temperature rise at service factor load (°C)42° C

Start configurationDOL

Breakdown torque29.99 lb-ft

Pull-up torque17.89 lb-ft

Locked-rotor torque22.24 lb-ft

Starting current (A)49.63 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	13	61	79	87	90	92	93	92
Efficiency %	0	81.4	86.5	87.6	86.6	85.3	83.5	86.1
Speed rpm	3593	3566	3535	3503	3465	3423	3379	3445
Line amps A	1.99	2.5	3.49	4.68	6.06	7.56	9.15	6.91
Power W	201	1207	2205	3243	4353	5525	6745	5052
Torque lb-ft	0	1.94	3.8	5.71	7.66	9.69	11.73	8.87

Documents & CAD

For this product 4

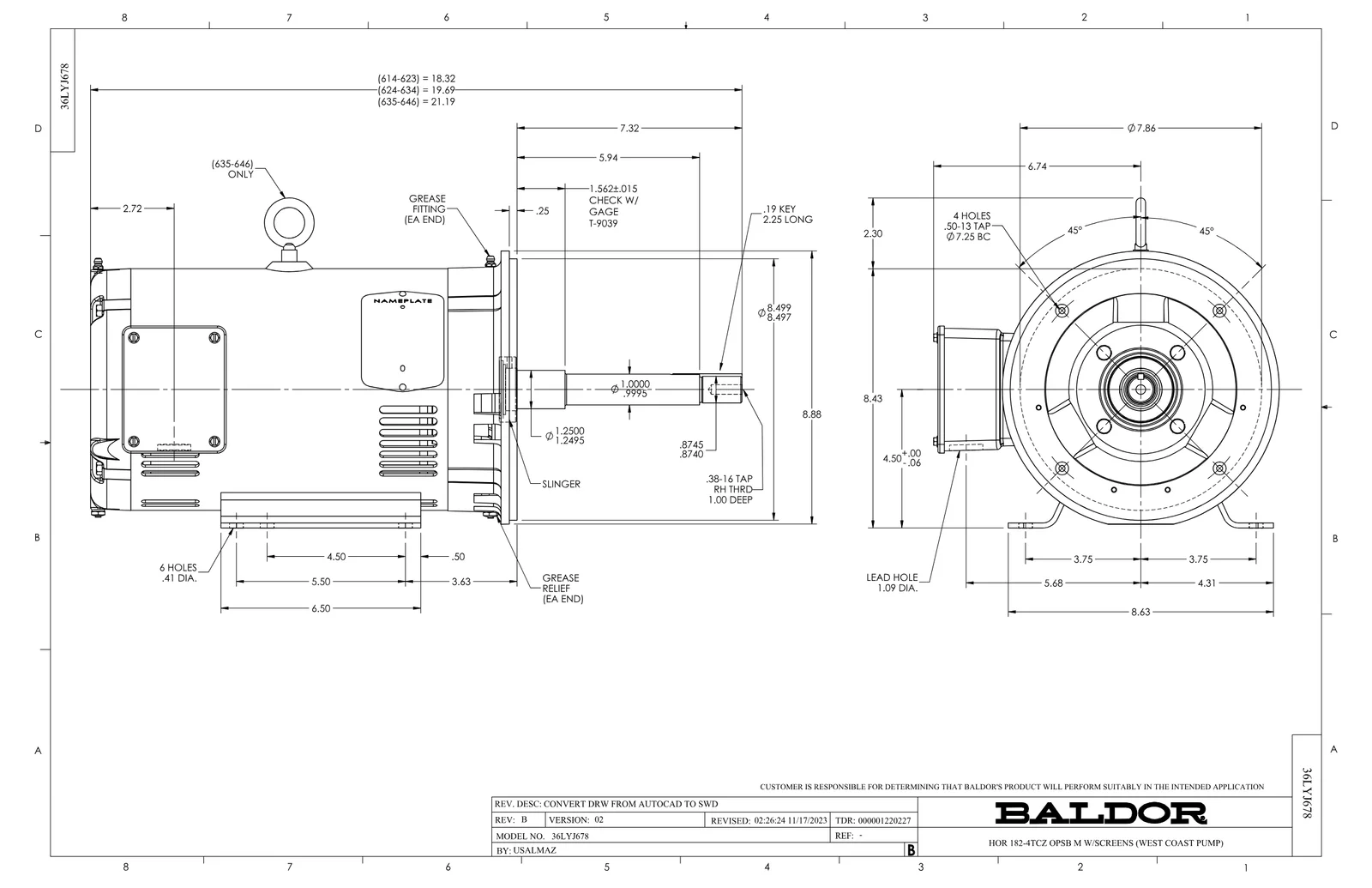

Dimension DrawingDimension SheetPDF·102 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·590 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EWCM3212T motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
