Baldor ERL1319A

Baldor-Reliance ERL1319A is a 1.5 HP, 1725 rpm, 1-phase 115/230 V 60 Hz, 56H frame, ODP enclosed general purpose single-phase AC electric motor.

BaldorMFR # ERL1319ASKU # YLSO6FARBJWMYMK

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance ERL1319A is a 1.5 HP, 1725 rpm, 1-phase 115/230 V 60 Hz, 56H frame, ODP enclosed general purpose single-phase AC electric motor.

Baldor ERL1319A

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureODP

Frame56H

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeCap Start, Cap Run

Output at frequency1.500 HP @ 60 HZ

Phase1

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency115.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorResilient

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage12.400 A @ 115.0 V · 6.200 A @ 230.0 V

Design codeL

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load83.8 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)6.2 a

Front face codeTerminal Panel

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitTerminal Panel

Motor lead terminationFlying Leads With QC

Motor lead quantity/wire size4 @ 16 AWG, A&J

Motor type3540LC

Mounting arrangementF1

Number of poles4

Overall length14.67 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeResilient Mount

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.625 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1725 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1Automatic Thermal Overload

Winding thermal 1 locationSB

Winding thermal 2None

UPC781568777619

Documents & CAD

For this product 2

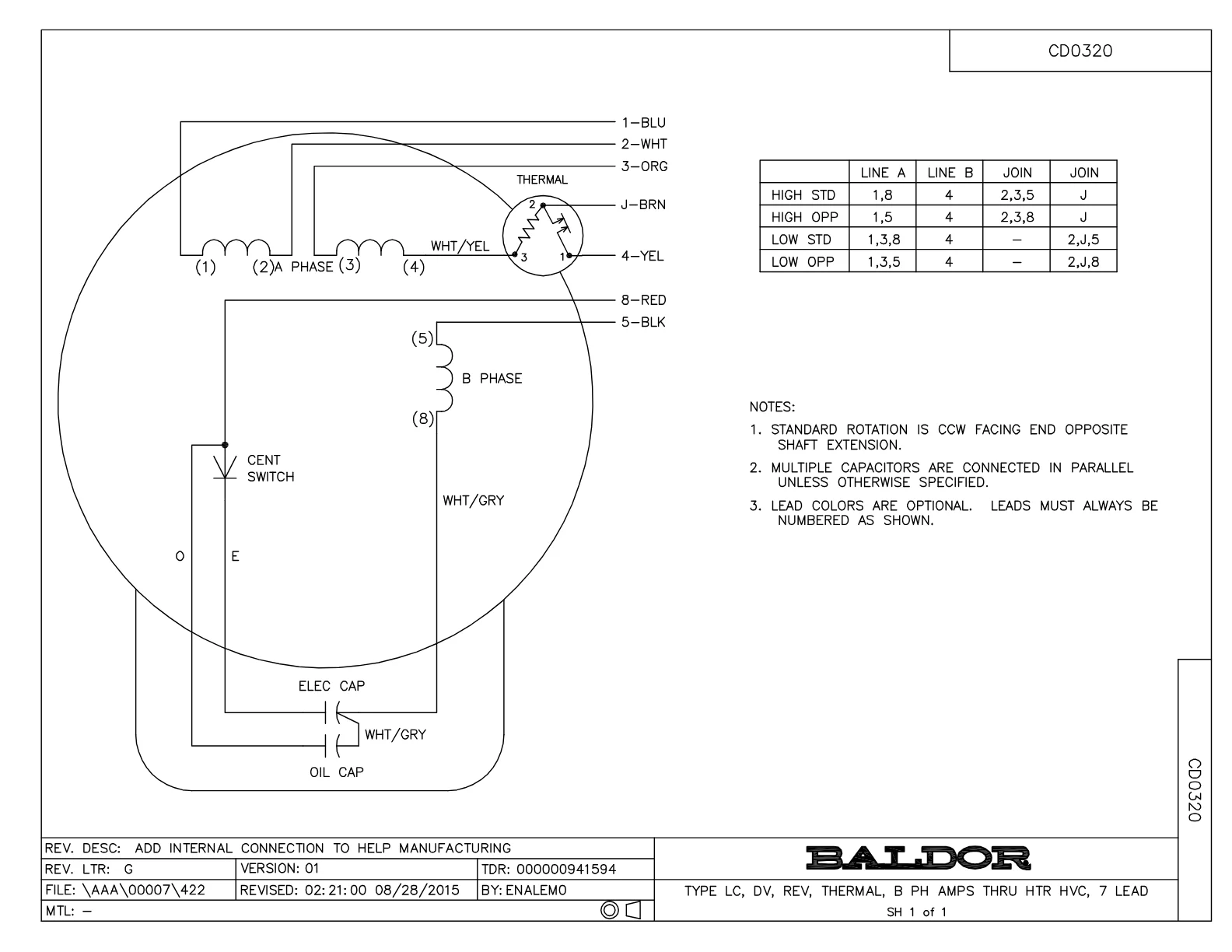

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·521 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·117 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor ERL1319A motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
OC3050F09SP	CAPACITOR 50 MFD 370 VAC	1 pcs	69 motors
EC1540A06SP	ELEC CAP, 540-648 MFD, 125V, 2.06D X 4.	1 pcs	53 motors
LB1118	LABEL,WARNING (ROLL LABEL)	1 pcs	223 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
