How can I get a price quote for Baldor EMVM3709D?

You can request a fast quote for Baldor EMVM3709D from Yılsa Engineering. Reference part number YLS8G37DAQF1E7F. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EMVM3709D in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EMVM3709D genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EMVM3709D?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EMVM3709D

IEC Frame AC Motor - 5.50 kW, 3600 rpm, 3 ph, 230/460 V, D132D Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, B5 Flange Mount, Continuous Duty

BaldorMFR # EMVM3709DSKU # YLS8G37DAQF1E7F

EnclosureTEFC

FrameD132D

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.500 KW @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 5.50 kW, 3600 rpm, 3 ph, 230/460 V, D132D Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, B5 Flange Mount, Continuous Duty

Baldor EMVM3709D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD132D

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency5.500 KW @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · UR · CSA · CE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage18.200 A @ 208.0 V · 8.300 A @ 460.0 V · 16.600 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)8.3 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3646M

Mounting arrangementB5

Number of poles2

Overall length20.47 IN

Power factor91

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeD-Flange

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.497 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568810170

Motor CategoryGeneral Purpose Motor

kW5.50 kW

Motor Supply Voltage230/460 V

Base RPM3450 rpm

Weight96 lbs

Mounting TypeB5 Flange

Product TypeIEC Frame Motors

Nameplate

Catalog numberEMVM3709D

Specification number36N539R455G1

IEC frame sizeD132D

Power (kW)5.5

Voltage (V)230/460

Current (A)16.6/8.3

Speed (rpm)3450

EnclosureTEFC

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterA

Code letter (locked rotor kVA)M

NEMA nominal efficiency (%)89.5

Ingress protection (IP)54

Rating40C AMB-CONT

CC number010A

Usable at 208VN/A

Drive end bearing6208

Opposite drive end bearing6205

Nameplate numberNP2672L

Performance

General characteristics· 460 V, 60 Hz, 5.5 kw

Line-to-line resistance at 25 °C (ohms)1.28 Ω

Temperature rise at rated load (°C)37° C

Temperature rise at service factor load (°C)45° C

Start configurationDOL

Breakdown torque53.4 lb-ft

Pull-up torque35 lb-ft

Locked-rotor torque50.3 lb-ft

Starting current (A)103 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	60	81	89	92	93	93	93
Efficiency %	0	86.4	90.9	91.4	91	90.4	88.8	90.6
Speed rpm	3595	3572	3545	3516	3487	3455	3422	3468
Line amps A	2.62	3.29	4.71	6.41	8.29	10.3	12.5	9.5
Power W	187	1581	3041	4520	6044	7655	9309	7011
Torque lb-ft	0	2.69	5.49	8.27	11.1	14.1	17	12.9

Documents & CAD

For this product 4

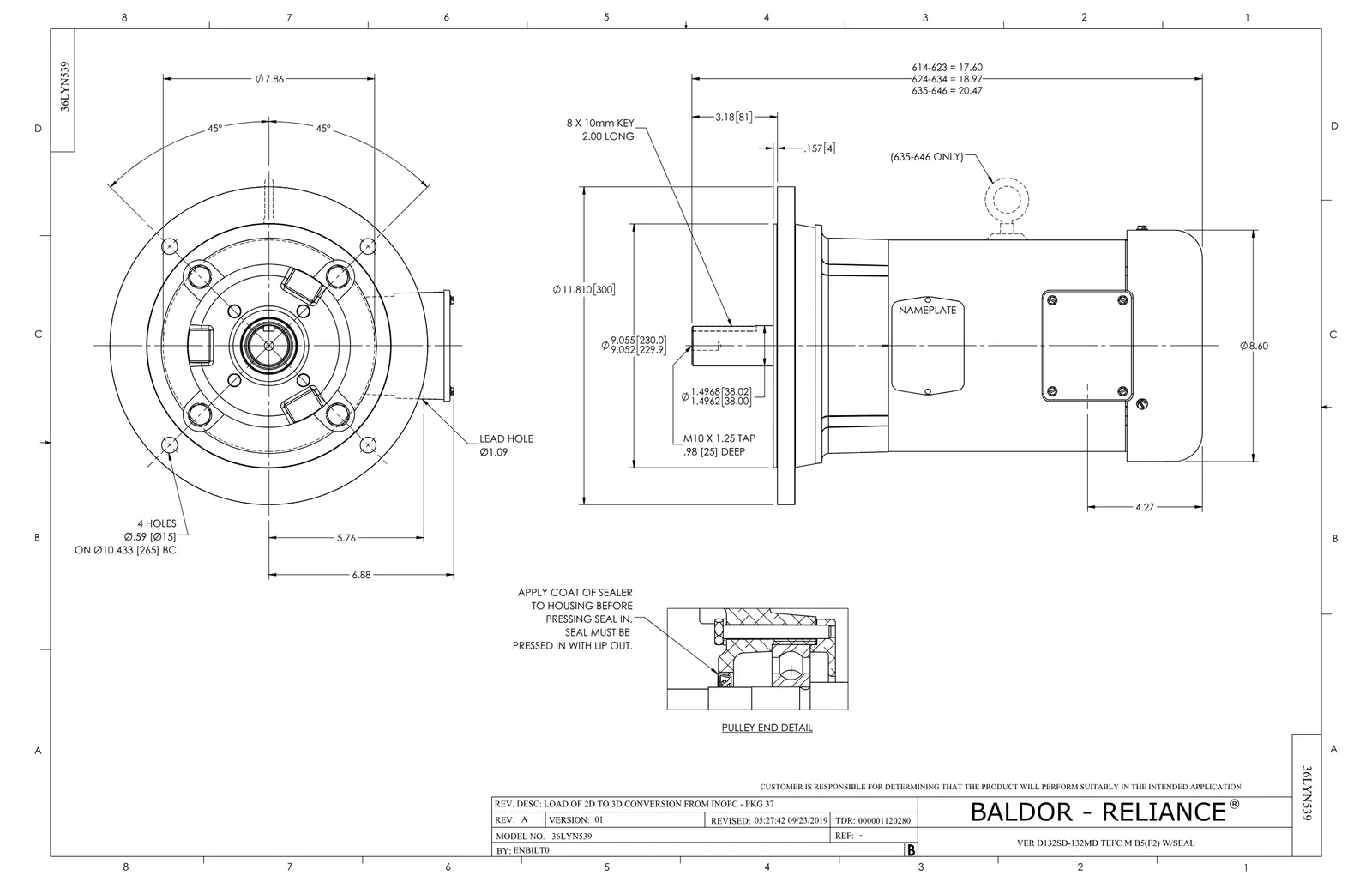

Dimension DrawingDimension SheetPDF·98 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·586 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EMVM3709D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
36FN3000C01SP	EXFN, PLASTIC, 5.25 OD, .912 ID	1 pcs	334 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
