Baldor EMVM3555D

IEC Frame AC Motor - 1.50 kW, 3600 rpm, 3 ph, 208-230/460 V, D90LD, D90SD Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3490 rpm Base, B5 Flange Mount, Continuous Duty

BaldorMFR # EMVM3555DSKU # YLSFG831AO2MPDM

EnclosureTEFC

FrameD90SD,LD

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 KW @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 1.50 kW, 3600 rpm, 3 ph, 208-230/460 V, D90LD, D90SD Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3490 rpm Base, B5 Flange Mount, Continuous Duty

Baldor EMVM3555D

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD90SD,LD

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 KW @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 208.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CSA · NEMA_PREMIUM · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.300 A @ 208.0 V · 5.000 A @ 230.0 V · 2.500 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.5 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeM

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3526M

Mounting arrangementB5

Number of poles2

Overall length12.99 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeD-Flange

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.945 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3490 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568810125

Motor CategoryGeneral Purpose Motor

kW1.50 kW

Motor Supply Voltage208-230/460 V

Base RPM3490 rpm

Weight41 lbs

Mounting TypeB5 Flange

Product TypeIEC Frame Motors

Nameplate

Catalog numberEMVM3555D

Specification number35Q175M774G1

IEC frame sizeD90SD,LD

Power (kW)1.5

Voltage (V)208-230/460

Current (A)5.3-5/2.5

Speed (rpm)3490

EnclosureTEFC

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterB

Code letter (locked rotor kVA)M

NEMA nominal efficiency (%)85.5

Ingress protection (IP)54

Rating40C AMB-CONT

CC number010A

Usable at 208VN/A

Drive end bearing6205

Opposite drive end bearing6203

Nameplate numberNP2672L

Performance

General characteristics· 460 V, 60 Hz, 1.5 kw

Line-to-line resistance at 25 °C (ohms)6.9119 Ω

Temperature rise at rated load (°C)44° C

Temperature rise at service factor load (°C)52° C

Start configurationDOL

Breakdown torque14.2 lb-ft

Pull-up torque6.33 lb-ft

Locked-rotor torque11.2 lb-ft

Starting current (A)25.9 A

Line-to-line resistance at 25 °C (ohms)1.72 Ω

Temperature rise at rated load (°C)45° C

Temperature rise at service factor load (°C)55° C

Start configurationDOL

Breakdown torque11.5 lb-ft

Pull-up torque5.05 lb-ft

Locked-rotor torque8.93 lb-ft

Starting current (A)46.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	16	55	75	84	88	90	91	89
Efficiency %	0	74.3	83.5	85.9	86.4	85.9	84.8	86.1
Speed rpm	3597.8	3571.7	3546.5	3520.2	3492.1	3460.7	3425.5	3473
Line amps A	0.912	1.1	1.47	1.93	2.44	3	3.61	2.78
Power W	115	481	880	1289	1713	2161	2627	1982
Torque lb-ft	0	0.696	1.46	2.21	2.98	3.77	4.57	3.45

Documents & CAD

For this product 4

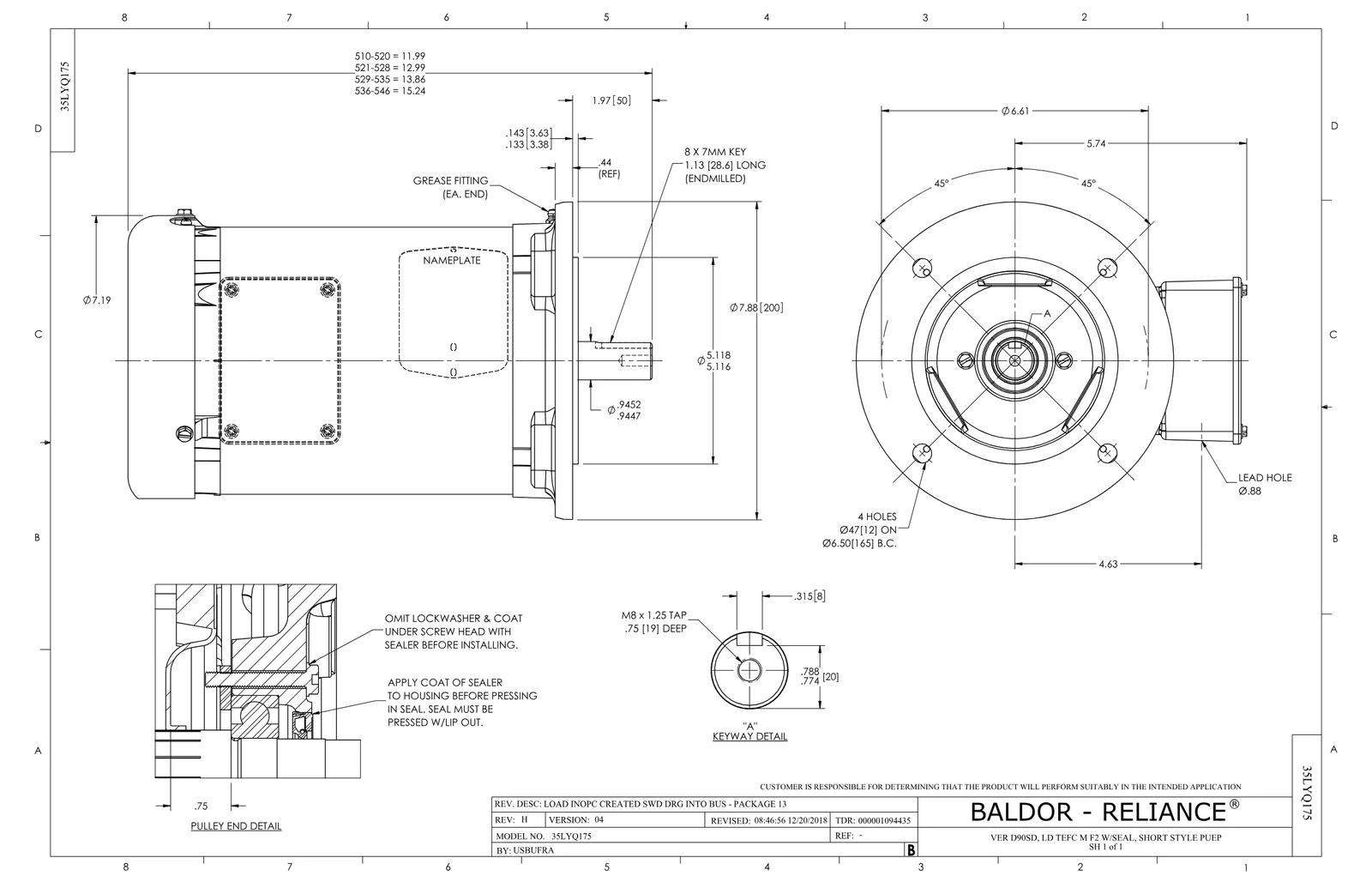

Dimension DrawingDimension SheetPDF·113 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·679 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EMVM3555D motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
