Baldor EMVM3546C

IEC Frame AC Motor - 0.75 kW, 1800 rpm, 3 ph, 230/460 V, D80C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, B14 Flange Mount, Continuous Duty

BaldorMFR # EMVM3546CSKU # YLSLEATB9SMMYK5

EnclosureTEFC

FrameD80C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 KW @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 0.75 kW, 1800 rpm, 3 ph, 230/460 V, D80C Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1760 rpm Base, B14 Flange Mount, Continuous Duty

Baldor EMVM3546C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD80C

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency.750 KW @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsUR · CSA EEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorNo Mounting

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage1.600 A @ 460.0 V · 3.200 A @ 208.0 V · 3.200 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)1.6 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeN

Lifting lugsNo Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 18 AWG

Motor type3520M

Mounting arrangementB14

Number of poles4

Overall length11.38 IN

Power factor69

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeC-Face

Pulley shaft indicatorTapped & Key

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.748 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1770 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568806227

Motor CategoryGeneral Purpose Motor

kW0.75 kW

Motor Supply Voltage230/460 V

Base RPM1760 rpm

Weight38 lbs

Mounting TypeB14 Flange

Product TypeIEC Frame Motors

Nameplate

Catalog numberEMVM3546C

Specification number35M366G004G1

IEC frame sizeD80C

Power (kW)0.75

Voltage (V)230/460

Current (A)3.2/1.6

Speed (rpm)1770

EnclosureTEFC

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterB

Code letter (locked rotor kVA)N

NEMA nominal efficiency (%)85.5

Ingress protection (IP)54

Rating40C AMB-CONT

CC number010A

Usable at 208VN/A

Drive end bearing6205

Opposite drive end bearing6203

Nameplate numberNP3386L

Performance

General characteristics· 460 V, 60 Hz, 0.75 kw

Line-to-line resistance at 25 °C (ohms)16.9 Ω

Temperature rise at rated load (°C)24° C

Temperature rise at service factor load (°C)28° C

Start configurationDOL

Breakdown torque13.68 lb-ft

Pull-up torque7.85 lb-ft

Locked-rotor torque9.01 lb-ft

Starting current (A)14.13 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	8	30	48	60	69	76	79	73
Efficiency %	0	72.1	81.7	84.6	85.7	85.5	84.7	85.6
Speed rpm	1798	1791	1784	1776	1768	1759	1750	1763
Line amps A	1.08	1.11	1.22	1.38	1.6	1.83	2.1	1.74
Power W	70.46	262	462	665	876	1101	1329	1011
Torque lb-ft	0	0.743	1.49	2.23	2.99	3.77	4.53	3.46

Documents & CAD

For this product 4

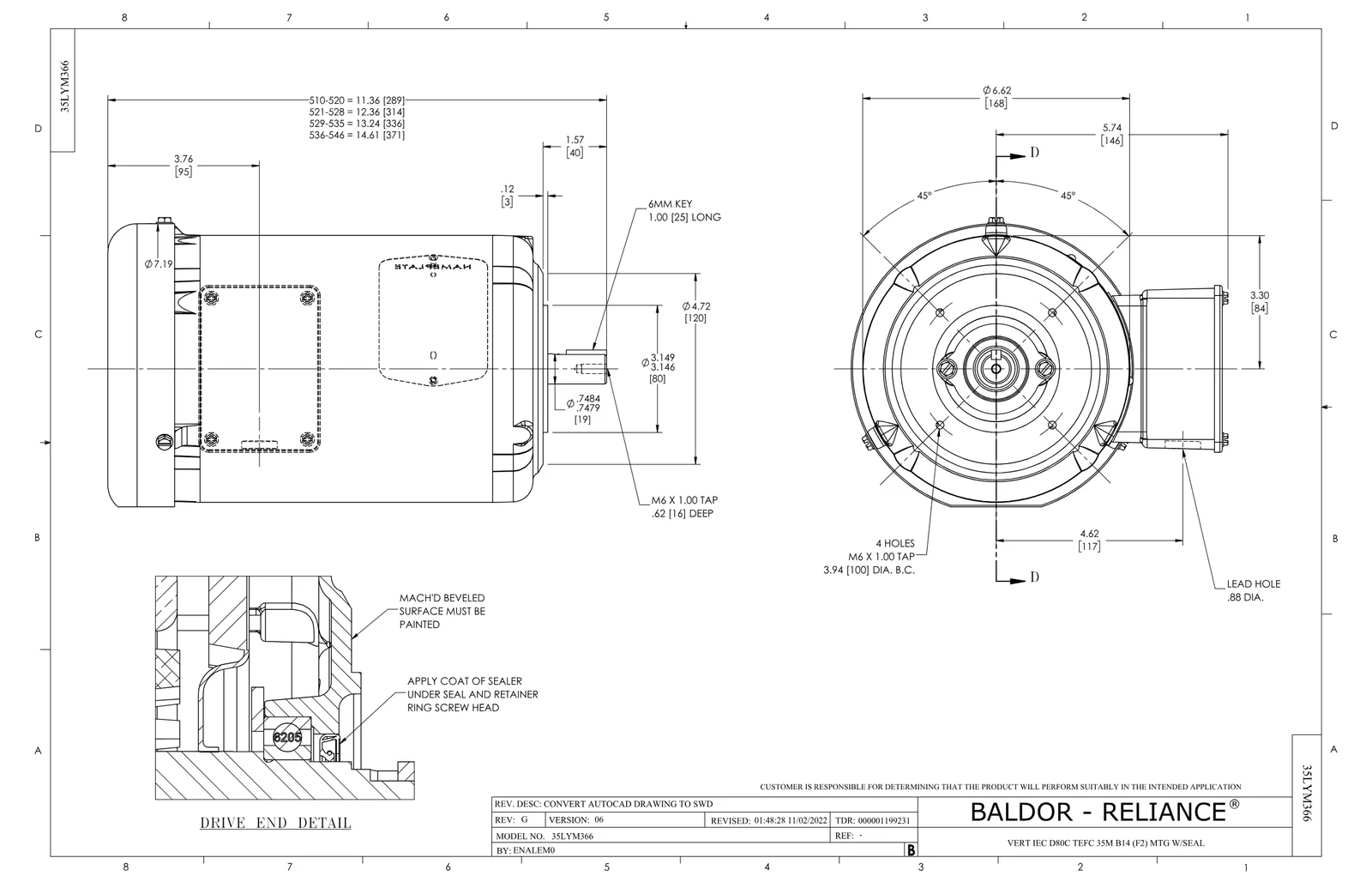

Dimension DrawingDimension SheetPDF·114 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·598 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EMVM3546C motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.017 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
