Baldor EMM3613

IEC Frame AC Motor - 3.70 kW, 3600 rpm, 3 ph, 230/460 V, D100L Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EMM3613SKU # YLS8F87AMUDL3PI

EnclosureTEFC

FrameD100L

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.700 KW @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

IEC Frame AC Motor - 3.70 kW, 3600 rpm, 3 ph, 230/460 V, D100L Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3450 rpm Base, Foot Mount, Continuous Duty

Baldor EMM3613

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameD100L

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.700 KW @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCSA · CURUS · UR

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.600 A @ 460.0 V · 12.400 A @ 208.0 V · 11.200 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load88.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)5.6 a

Frame prefixD

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3634M

Mounting arrangementB3

Number of poles2

Overall length15.76 IN

Power factor93

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorTapped & Key

Rodent screenNone

Service factor1.15

Shaft diameter1.103 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3450 rpm

Speed codeSingle Speed

Motor standardsIEC

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568524060

Motor CategoryGeneral Purpose Motor

kW3.70 kW

Motor Supply Voltage230/460 V

Base RPM3450 rpm

IP Rating44/54

Harmonization Code8501.52.4000

Weight76 lbs

ApplicationsPumps, fans, conveyors, machine tools, gear reducers and other applications requiring IEC metric B3 base mount replacements.

Additional DetailsIEC-B3 mount. Conforms to IEC 60072-1 and IEC 60034-1. Conduit box mounted F-2. Rigid Base. Pressure cast aluminum end plates with ribbed design for rigidity. Ball bearings with a locked drive end bearing, heavy-gauge steel frames and gasketed conduit box. Motors with shaded rows have cast iron frames and endplates.

Mounting TypeFoot

Product TypeIEC Frame Motors

Nameplate

Catalog numberEMM3613

Specification number36M715T202G1

IEC frame sizeD100L

Power (kW)3.7

Voltage (V)230/460

Current (A)11.2/5.6

Speed (rpm)3450

EnclosureTEFC

Frequency (Hz)60

Phase3

Insulation classF

Service factor1.15

NEMA design letterB

Code letter (locked rotor kVA)G

NEMA nominal efficiency (%)88.5

Ingress protection (IP)54

Rating40C AMB-CONT

CC number010A

Drive end bearing6206

Opposite drive end bearing6205

Nameplate numberNP1159L

Performance

General characteristics· 460 V, 60 Hz, 3.7 kw

Line-to-line resistance at 25 °C (ohms)1.8592 Ω

Temperature rise at rated load (°C)65° C

Temperature rise at service factor load (°C)78° C

Start configurationDOL

Breakdown torque45.7 lb-ft

Pull-up torque31 lb-ft

Locked-rotor torque38.1 lb-ft

Starting current (A)36.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	11	53	74	83	88	90	92	89
Efficiency %	0	81	87.4	88.8	88.8	88.1	87.1	88.4
Speed rpm	3597.8	3571.6	3546.9	3521.5	3493.5	3464.6	3436.2	3476
Line amps A	2.23	2.74	3.63	4.75	6	7.36	8.7	6.82
Power W	200	1159	2127	3143	4213	5296	6383	4863
Torque lb-ft	0	1.85	3.69	5.58	7.54	9.47	11.4	8.7

Documents & CAD

For this product 4

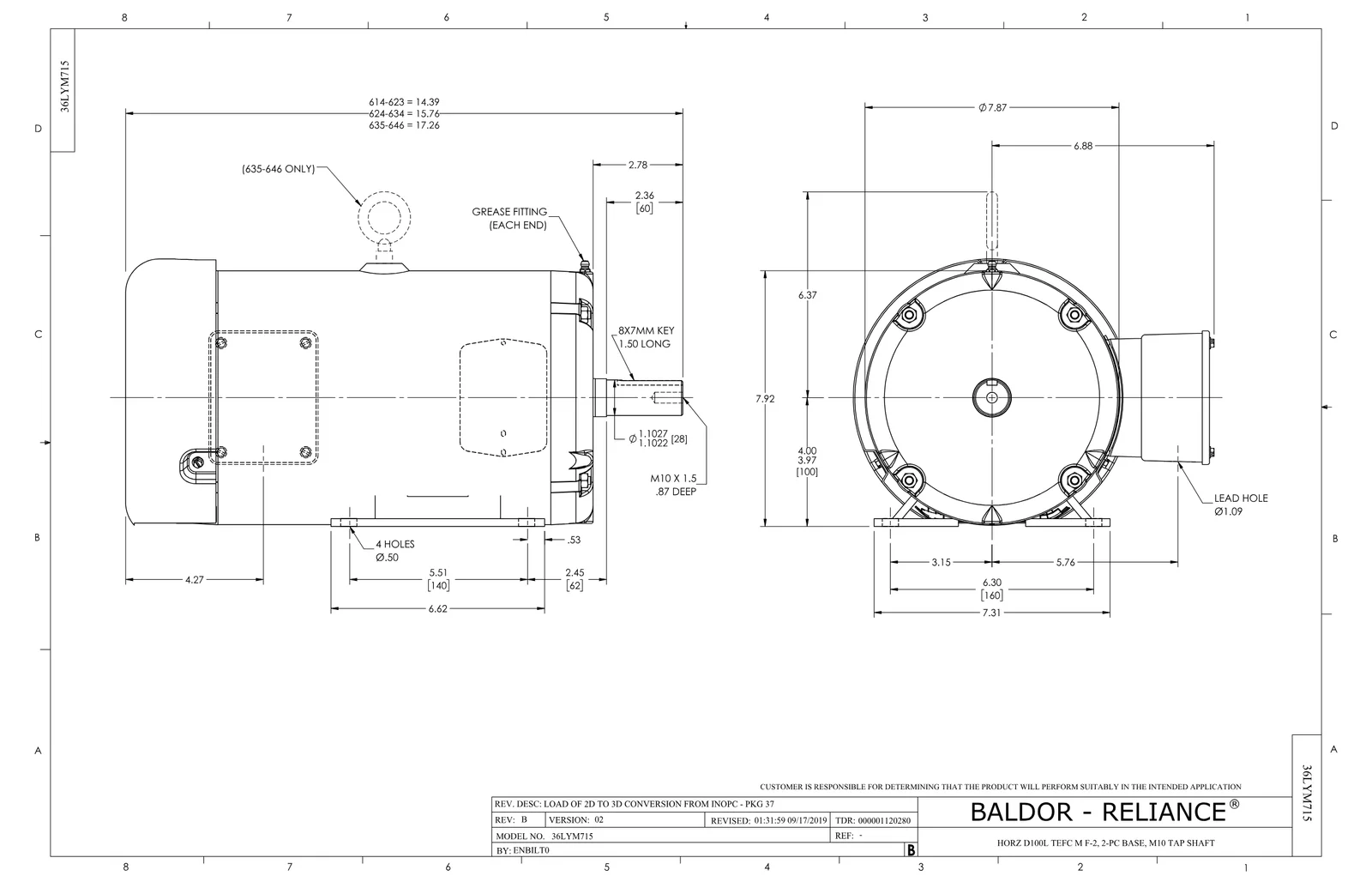

Dimension DrawingDimension SheetPDF·104 KB·English

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·588 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EMM3613 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000C01SP	EXFN, PLASTIC, 5.25 OD, .912 ID	1 pcs	334 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
36EP3104A01	FREP MACH W/GRSR, RAISED FH PADS	1 pcs	141 motors
36EP3100A01SP	PUEP ASSEMBLY FOR ROUTING PURPOSES	1 pcs	74 motors
37GS1001SP	GASKET, CONDUIT BOX LID, .06 THICK LEXID	1 pcs	329 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
