How can I get a price quote for Baldor EM8003T?

You can request a fast quote for Baldor EM8003T from Yılsa Engineering. Reference part number YLSA7JIEBN1NFES. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM8003T in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM8003T genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM8003T?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

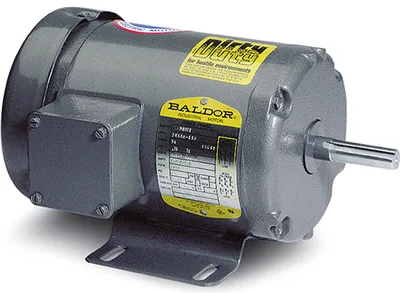

Baldor EM8003T

Severe / Corrosive Duty Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

BaldorMFR # EM8003TSKU # YLSA7JIEBN1NFES

Motor CategoryCorrosive Duty Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size143T

Have questions?Chat on WhatsApp

About This Product

Severe / Corrosive Duty Motor - 1 hp, 1800 rpm, 3 ph, 208-230/460 V, 143T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, Foot Mount, Continuous Duty

Baldor EM8003T

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryCorrosive Duty Motor

Motor Phase3 ph

Motor Horsepower1 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size143T

Enclosure TypeTEFC (Totally Enclosed Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Full Load Current1.50 A

Full Load Efficiency85.50 %

Amps @ Voltage3.1 A @ 208 V; 3.0 A @ 230 V; 1.5 A @ 460 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter0.8750 in

Overall Length C Dimension12.75 in

Mounting TypeFoot

Service Factor1.15

Frame MaterialCast Iron

Insulation ClassF

IP Rating55

Standards MetCSA, CSA EEV, UR

Harmonization Code8501.51.6040

Weight56 lbs

ApplicationsPetro-chemical plants, mines, quarries, foundries, pulp and paper plants, waste management facilities, chemical plants and other processing industry applications requiring protection against corrosion caused by severe environmental operating conditions.

Additional DetailsTotally enclosed fan cooled frame, Stainless steel shaft extensions, designed to meet the intent of IEEE-45 for weather protection, suitable for use in 50 Degree C ambient with a 1.0 service factor.

Product TypeSevere Duty Motors
