Baldor EM74254T-4

Baldor-Reliance EM74254T-4 is a 250 HP @ 60 Hz / 200 HP @ 50 Hz, 1780/1480 rpm, 3-phase 460 V 60 Hz / 380 V 50 Hz, 449T frame, TEFC enclosed general industrial AC electric motor.

BaldorMFR # EM74254T-4SKU # YLSMOUVYWZNR8ST

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ · 200.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM74254T-4 is a 250 HP @ 60 Hz / 200 HP @ 50 Hz, 1780/1480 rpm, 3-phase 460 V 60 Hz / 380 V 50 Hz, 449T frame, TEFC enclosed general industrial AC electric motor.

Baldor EM74254T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ · 200.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage263.000 A @ 380.0 V · 270.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)263.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Motor lead quantity/wire size6 @ 2/0 AWG

Motor typeA44160M

Mounting arrangementF1

Number of poles4

Overall length53.47 IN

Power factor90

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1480 rpm · 1780 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT4

UPC781568810071

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 4

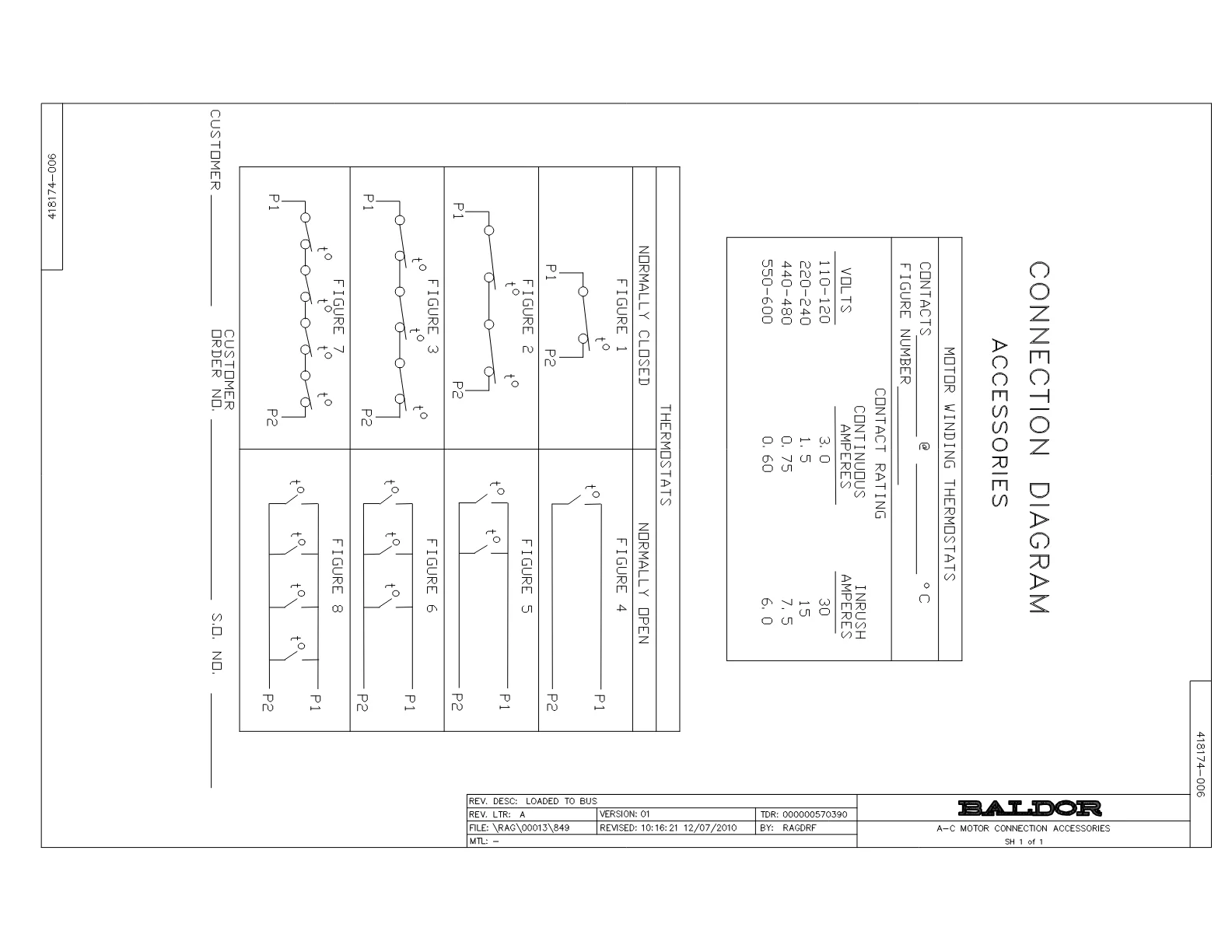

Wiring DiagramWiring DiagramPDF·35 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·914 KB·English

Performance CurvePerformance CurvePDF·105 KB·English

Series documents 4· shared by this product series

Dimension DrawingDimension SheetPDF·297 KB·English

Dimension DrawingDimension SheetPDF·77 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM74254T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
