Baldor EM74204T-4

Explosion Proof / Hazardous Location Motor - 200 hp, 1800 rpm, 3 ph, 380//460 V, 449T Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, Foot Mount, Continuous Duty

BaldorMFR # EM74204T-4SKU # YLSON1WUC34VFAU

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ · 150.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location Motor - 200 hp, 1800 rpm, 3 ph, 380//460 V, 449T Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 50/60 Hz, Foot Mount, Continuous Duty

Baldor EM74204T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)50.00 Hz · 60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ · 150.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency380.0 V @ 50 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupCLI GP C,D; CLII GP F,G

Hazardous area divisionDivision I

Agency approvalsUL · CSA · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage197.000 A @ 380.0 V · 216.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)197.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeF

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size6 @ 1/0 AWG

Motor typeA44144M

Mounting arrangementF1

Number of poles4

Overall length48.22 IN

Power factor90

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.00

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1485 rpm · 1785 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Hazardous area temperature codeT4

UPC781568546574

Motor CategoryGeneral Purpose Motor

Motor Supply Voltage380//460 V

Harmonization Code8501.53.6000

Weight2417 lbs

ApplicationsIdeal for use on pumps, fans, and conveyors where hazardous fumes and dust are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G; Class I, Group C & D, Class II, Group F & G. Totally enclosed heavy gauge steel and cast iron construction. Corrosion resistant epoxy paint. Single or Three Phase designs. 1.0 Service Factor. Three Phase 143T frame and larger have 60Hz & 50Hz data included on the nameplate. Super-E® explosion proof motors have a NEMA Premium® efficiency. Fixed speed sine wave operation only.

Mounting TypeFoot

Product TypeExplosion Proof (Hazardous Location) Motors

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 4

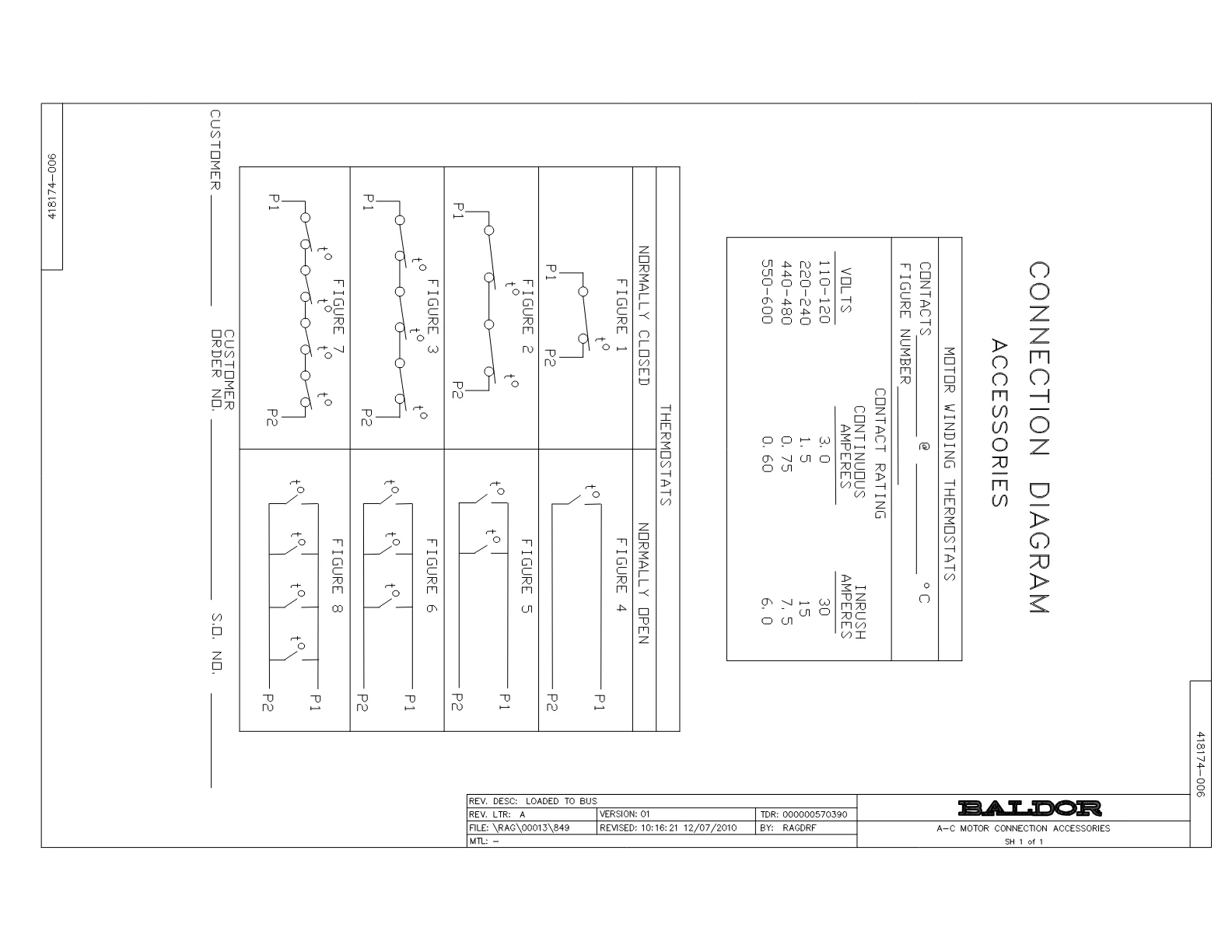

Wiring DiagramWiring DiagramPDF·35 KB·English

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·838 KB·English

Performance CurvePerformance CurvePDF·97 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·297 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM74204T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
