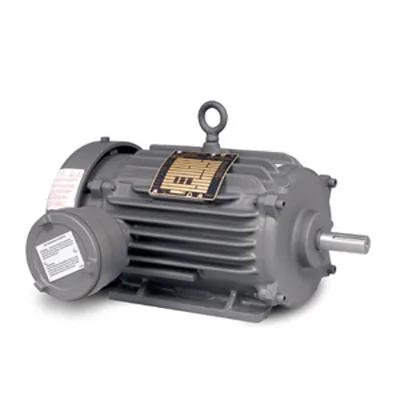

Baldor EM7137T-C

Explosion Proof / Hazardous Location Motor - 2 hp, 1800 rpm, 3 ph, 208-230/460 V, 145T Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM7137T-CSKU # YLSDZLTS43SGLSZ

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size145T

Have questions?Chat on WhatsApp

About This Product

Explosion Proof / Hazardous Location Motor - 2 hp, 1800 rpm, 3 ph, 208-230/460 V, 145T Frame, EPFC (Explosion Proof Fan Cooled) Enclosure, 60 Hz, 1725 rpm Base, Foot Mount, Continuous Duty

Baldor EM7137T-C

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

Motor CategoryGeneral Purpose Motor

Motor Phase3 ph

Motor Horsepower2 hp

Synchronous Rpm1800 rpm

Motor Supply Voltage208-230/460 V

Frame Size145T

Enclosure TypeEPFC (Explosion Proof Fan Cooled)

Frequency Rating60 Hz

Duty Condition TypeContinuous Duty

Base RPM1725 rpm

Full Load Current2.90 A

Full Load Efficiency86.50 %

Amps @ Voltage5.8 A @ 208 V; 2.9 A @ 230 V

Volts @ Frequency208 V @ 60 Hz; 230 V @ 60 Hz; 460 V @ 60 Hz

Shaft Diameter0.8750 in

Overall Length C Dimension16.28 in

Service Factor1.00

Frame MaterialCast Iron

Insulation ClassB

IP Rating44

Standards MetCSA, UL, UR

Temperature CodeT3C

Group & ClassDivision 1, Class I - Group C & D, Class II - Group F & G

Harmonization Code8501.52.4000

Weight91 lbs

ApplicationsIdeal for use on pumps, fans, and conveyors where hazardous fumes and dust are present requiring Div 1 UL listed and/or CSA approved enclosures.

Additional DetailsUL & CSA approved for Class I, Group D; Class I, Group D, Class II, Group F & G; Class I, Group C & D, Class II, Group F & G. Totally enclosed heavy gauge steel and cast iron construction. Corrosion resistant epoxy paint. Single or Three Phase designs. 1.0 Service Factor. Three Phase 143T frame and larger have 60Hz & 50Hz data included on the nameplate. Super-E® explosion proof motors have NEMA Premium® efficiency and 3 year warranty. Fixed speed sine wave operation only.

Mounting TypeFoot

Product TypeExplosion Proof (Hazardous Location) Motors
