How can I get a price quote for Baldor EM44302TS-2340?

You can request a fast quote for Baldor EM44302TS-2340 from Yılsa Engineering. Reference part number YLSJNBUJFS7QJJB. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM44302TS-2340 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM44302TS-2340 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM44302TS-2340?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM44302TS-2340

Baldor-Reliance EM44302TS-2340 is a 300 HP, 3575 rpm, 3-phase 2300/4000 V, 60 Hz, L449TS frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # EM44302TS-2340SKU # YLSJNBUJFS7QJJB

EnclosureTEFC

FrameL449TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM44302TS-2340 is a 300 HP, 3575 rpm, 3-phase 2300/4000 V, 60 Hz, L449TS frame, TEFC enclosed three-phase AC electric motor.

Baldor EM44302TS-2340

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

FrameL449TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency300.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency2300.0 V @ 60 HZ · 4000.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV · CCSA US

Ambient temperature (°C)40 °C

Auxiliary boxAUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage38.700 A @ 4000.0 V · 67.400 A @ 2300.0 V

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)38.7 a

Frame prefixL

Heater indicatorHeater Included, 120 V

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Motor lead quantity/wire size6 @ 6 AWG

Motor typeA44160M

Mounting arrangementF1

Number of poles2

Overall length56.48 IN

Power factor87

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter2.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3575 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingRTD Only

UPC781568729120

Nameplate

Specification numberP44G5951

Catalog numberEM44302TS-2340

Frame sizeL449TS

Horsepower (HP)300

Voltage (V)2300/4000

Phase3

NEMA design letter-

TypeP

Speed (rpm)3575

Current (A)67.4/38.7

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing65BC03J30X

DutyCONT

Insulation classF

Opposite drive end bearing6313/C3VL0241

EnclosureTEFC

Code letter (locked rotor kVA)G

NEMA nominal efficiency (%)95

Nameplate numberNP3132L

Documents & CAD

For this product 3

Dimension DrawingDimension SheetPDF·398 KB·English

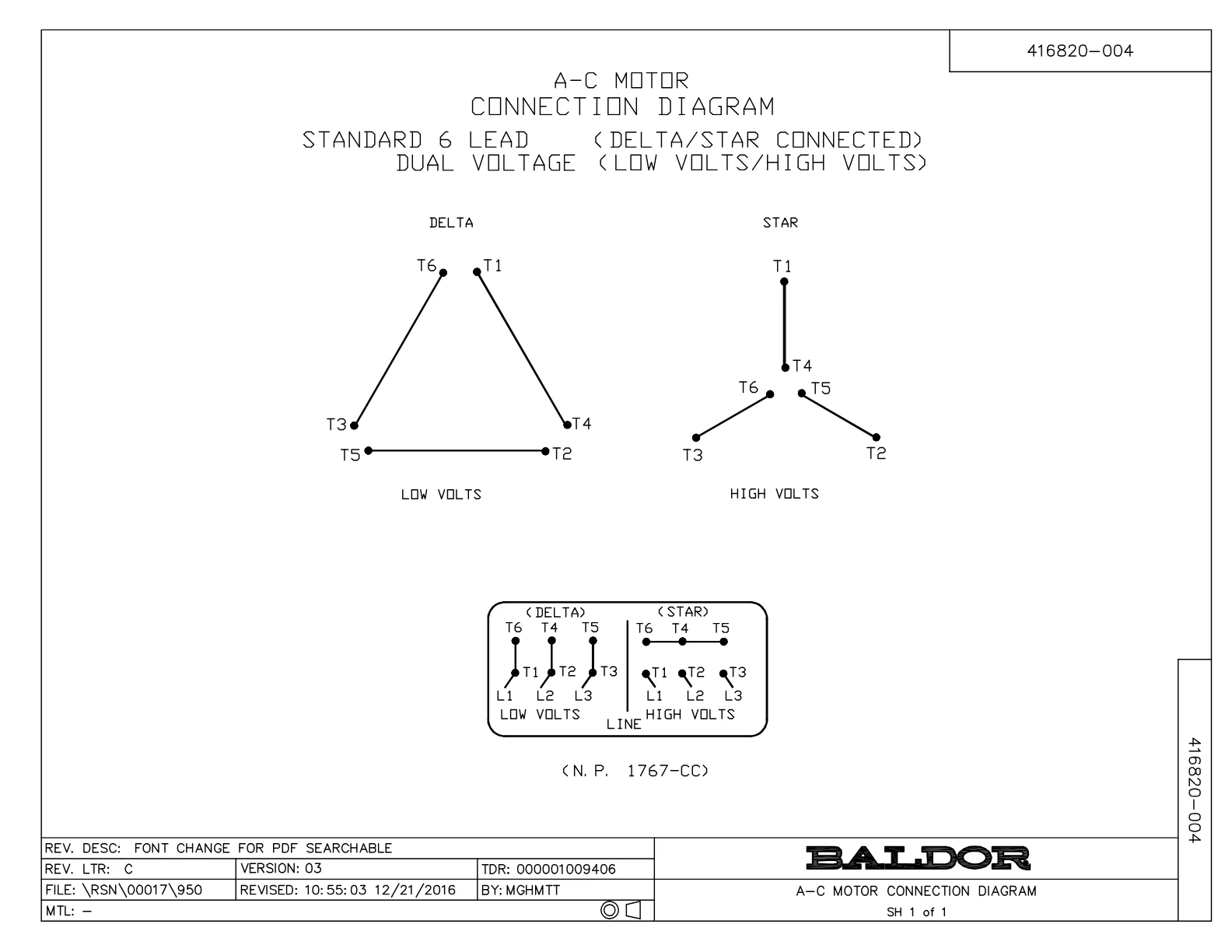

Wiring DiagramWiring DiagramPDF·35 KB·English

DatasheetDatasheetPDF·877 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·79 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 8

3D Model

2D Drawing

Spare Parts 4

The genuine spare parts used for servicing and repairing the Baldor EM44302TS-2340 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
078548001R	FAN KB 234/150 (84) 400	1 pcs	123 motors
075457025A	CBOX CVR, 180/210	1 pcs	4 motors
065564008A	GASK 250-440	1 pcs	4 motors
