Baldor EM44206T-4

Baldor-Reliance EM44206T-4 is a 200 HP, 1190 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # EM44206T-4SKU # YLSM8CJDXAZOGFF

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM44206T-4 is a 200 HP, 1190 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed three-phase AC electric motor.

Baldor EM44206T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency200.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · CCSAUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage225.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.8 %

Enclosure modificationSevere Duty Features

Feedback deviceNO FEEDBACK

High voltage full load current (A)225.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size6 @ 1 AWG

Motor typeA44160M

Mounting arrangementF1

Number of poles6

Overall length53.24 IN

Power factor87

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1190 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568546543

Nameplate

Specification numberP44G3915

Catalog numberEM44206T-4

Frame size449T

Horsepower (HP)200

Voltage (V)460

Phase3

NEMA design letterB

TypeP

Speed (rpm)1190

Current (A)225

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing90BC03J30X

DutyCONT

Insulation classF

Opposite drive end bearing90BC03J30X

EnclosureTEFC

Code letter (locked rotor kVA)G

Power factor87

NEMA nominal efficiency (%)95.8

Maximum correction (kVAR)35.0

Guaranteed efficiency (%)95.0

Nameplate numberNP2349L

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·887 KB·English

Series documents 4· shared by this product series

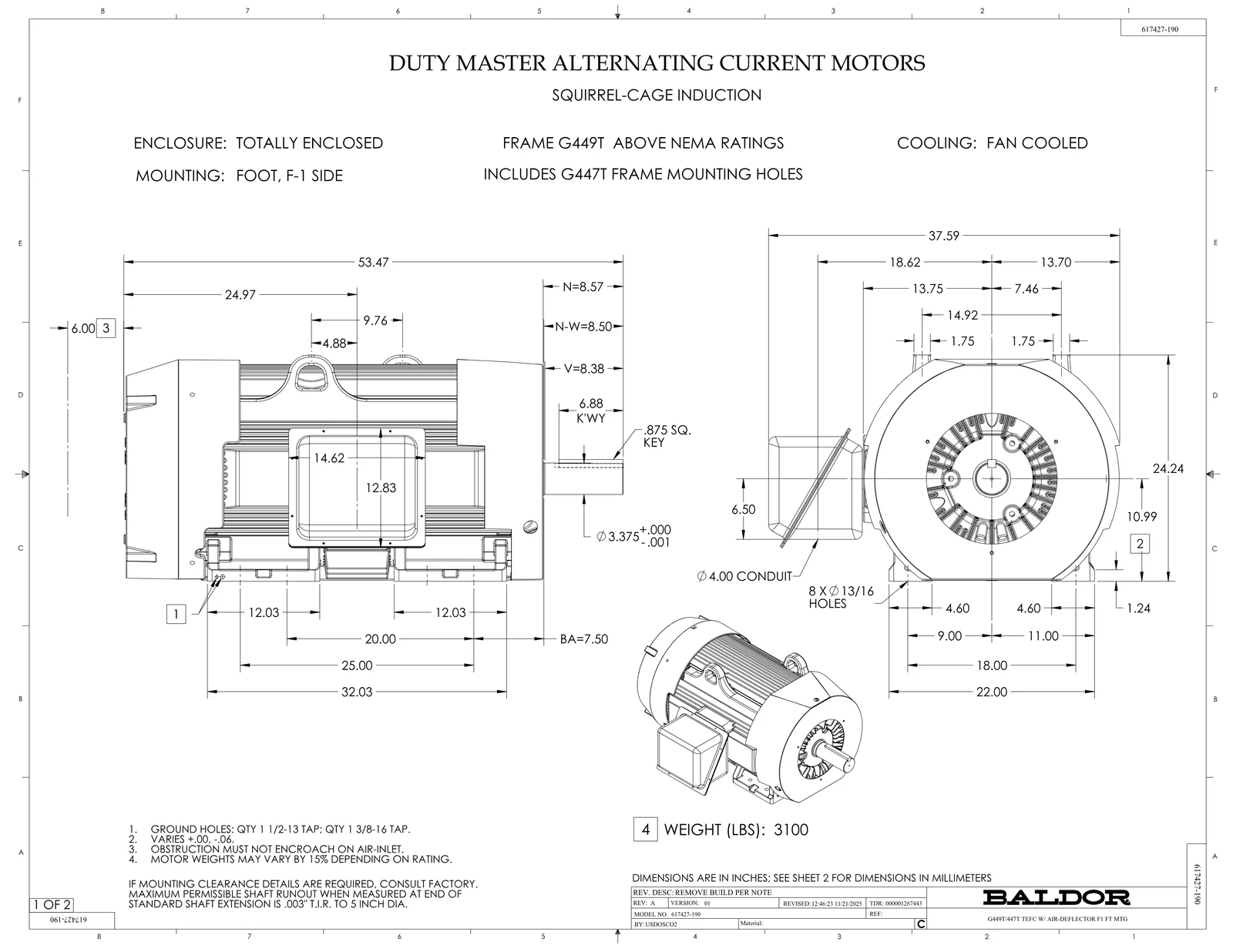

Dimension DrawingDimension SheetPDF·365 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·111 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM44206T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
078550001H	FAN KB 120/60 360	1 pcs	39 motors
