Baldor EM4411T-4

Baldor-Reliance EM4411T-4 is a 125 HP, 1188 rpm, 3-phase 460 V, 60 Hz, 445T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # EM4411T-4SKU # YLSZYK3XX3YMPTH

EnclosureTEFC

Frame445T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4411T-4 is a 125 HP, 1188 rpm, 3-phase 460 V, 60 Hz, 445T frame, TEFC enclosed three-phase AC electric motor.

Baldor EM4411T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame445T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency125.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage146.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)146.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeF

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size6 @ 2 AWG

Motor typeA44090M

Mounting arrangementF1

Number of poles6

Overall length44.75 IN

Power factor84

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1188 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568546529

Nameplate

Specification numberP44G3905

Catalog numberEM4411T-4

Frame size445T

Horsepower (HP)125

Voltage (V)460

Phase3

NEMA design letterB

TypeP

Speed (rpm)1188

Current (A)146

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing90BC03J30X

DutyCONT

Insulation classF

Opposite drive end bearing90BC03J30X

EnclosureTEFC

Code letter (locked rotor kVA)F

Power factor84

NEMA nominal efficiency (%)95

Maximum correction (kVAR)30.0

Guaranteed efficiency (%)94.5

Motor weight2073

Nameplate numberNP2349L

Documents & CAD

For this product 3

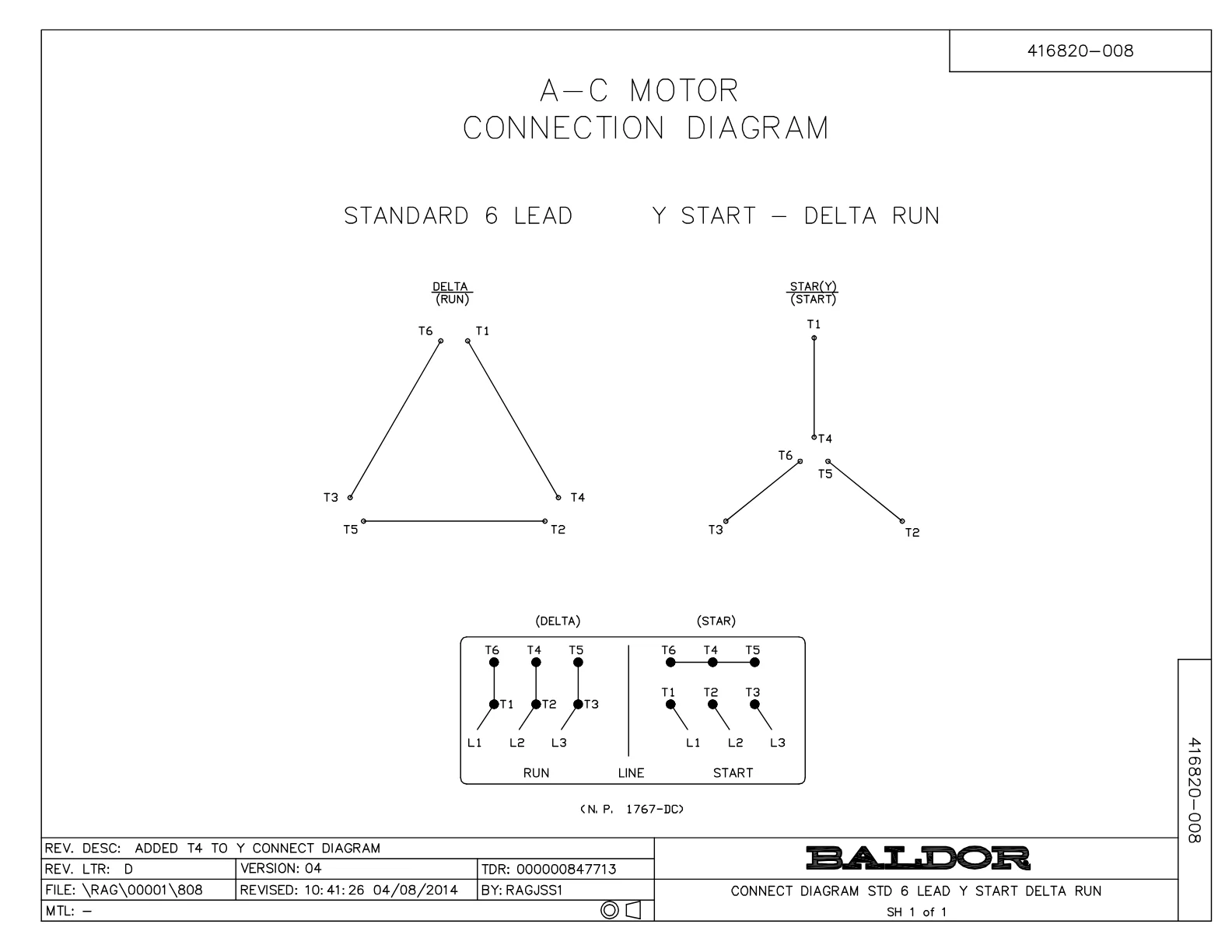

Wiring DiagramWiring DiagramPDF·32 KB·English

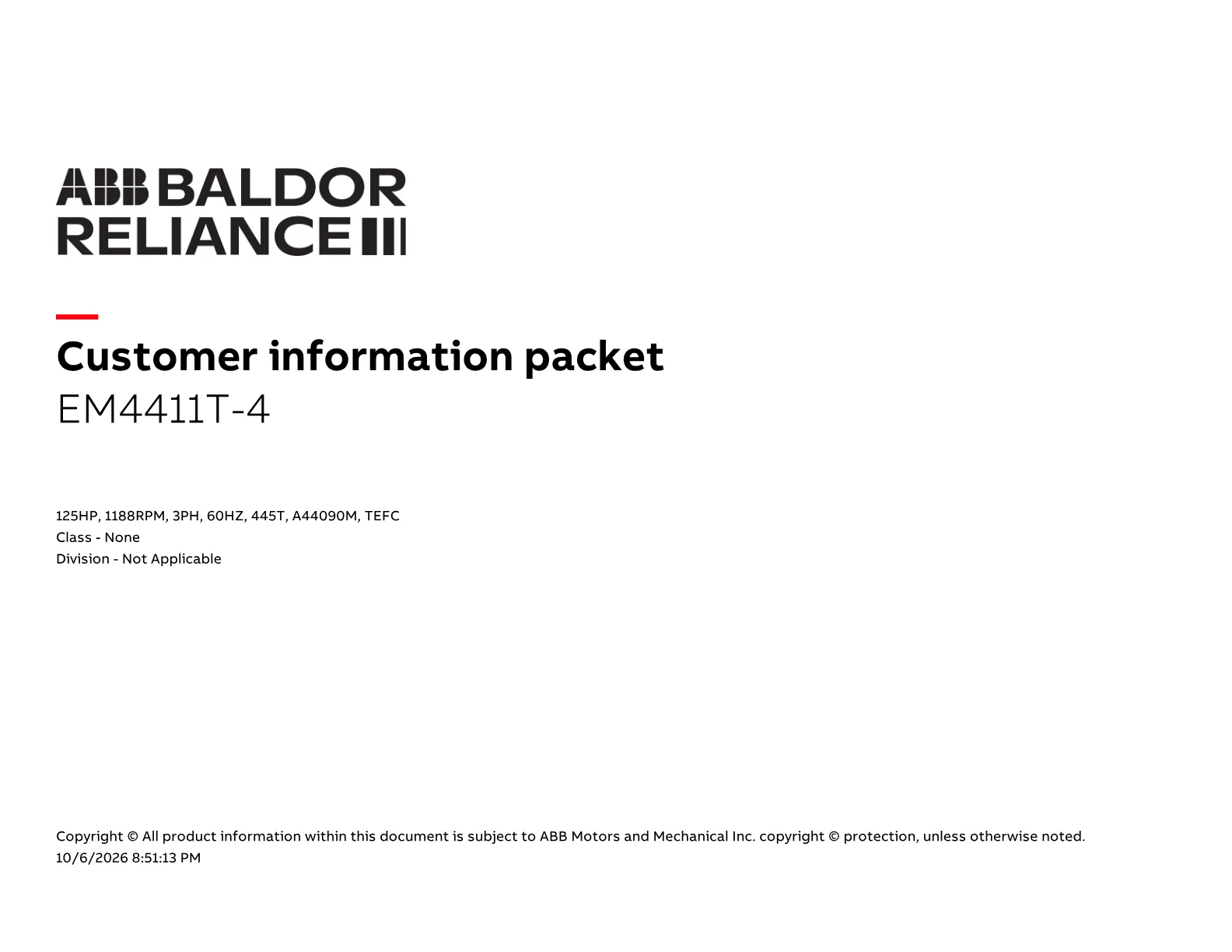

DatasheetDatasheetPDF·1.3 MB·English

Performance CurvePerformance CurvePDF·138 KB·English

Series documents 3· shared by this product series

Dimension DrawingDimension SheetPDF·831 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM4411T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors
078557001E	FAN 440 078557001F	1 pcs	31 motors

Accessories 2

Genuine accessories that can be used with the Baldor EM4411T-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
