How can I get a price quote for Baldor EM4409T-4?

You can request a fast quote for Baldor EM4409T-4 from Yılsa Engineering. Reference part number YLSC0ATY6QGVYFF. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM4409T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM4409T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM4409T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM4409T-4

Baldor-Reliance EM4409T-4 is a 100 HP, 1190 rpm, 3-phase 460 V, 60 Hz, 444T frame, TEFC enclosed three-phase AC electric motor.

BaldorMFR # EM4409T-4SKU # YLSC0ATY6QGVYFF

EnclosureTEFC

Frame444T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4409T-4 is a 100 HP, 1190 rpm, 3-phase 460 V, 60 Hz, 444T frame, TEFC enclosed three-phase AC electric motor.

Baldor EM4409T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame444T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency100.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1200 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCCSAUSEEV · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage119.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load95.0 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)119.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeG

Lifting lugsNo Lifting Lugs

Motor lead quantity/wire size3 @ 2 AWG

Motor typeA44064M

Mounting arrangementF1

Number of poles6

Overall length44.75 IN

Power factor82

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1190 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

UPC781568546512

Nameplate

Specification numberP44G3900

Catalog numberEM4409T-4

Frame size444T

Horsepower (HP)100

Voltage (V)460

Phase3

NEMA design letterB

TypeP

Speed (rpm)1190

Current (A)119

Frequency (Hz)60

Ambient temperature (°C)40

Service factor1.15

Drive end bearing90BC03J30X

DutyCONT

Insulation classF

Opposite drive end bearing90BC03J30X

EnclosureTEFC

Code letter (locked rotor kVA)G

Power factor82

NEMA nominal efficiency (%)95

Maximum correction (kVAR)27.0

Guaranteed efficiency (%)94.1

Nameplate numberNP2349L

Documents & CAD

For this product 2

Wiring DiagramWiring DiagramPDF·39 KB·English

DatasheetDatasheetPDF·1.3 MB·English

Series documents 4· shared by this product series

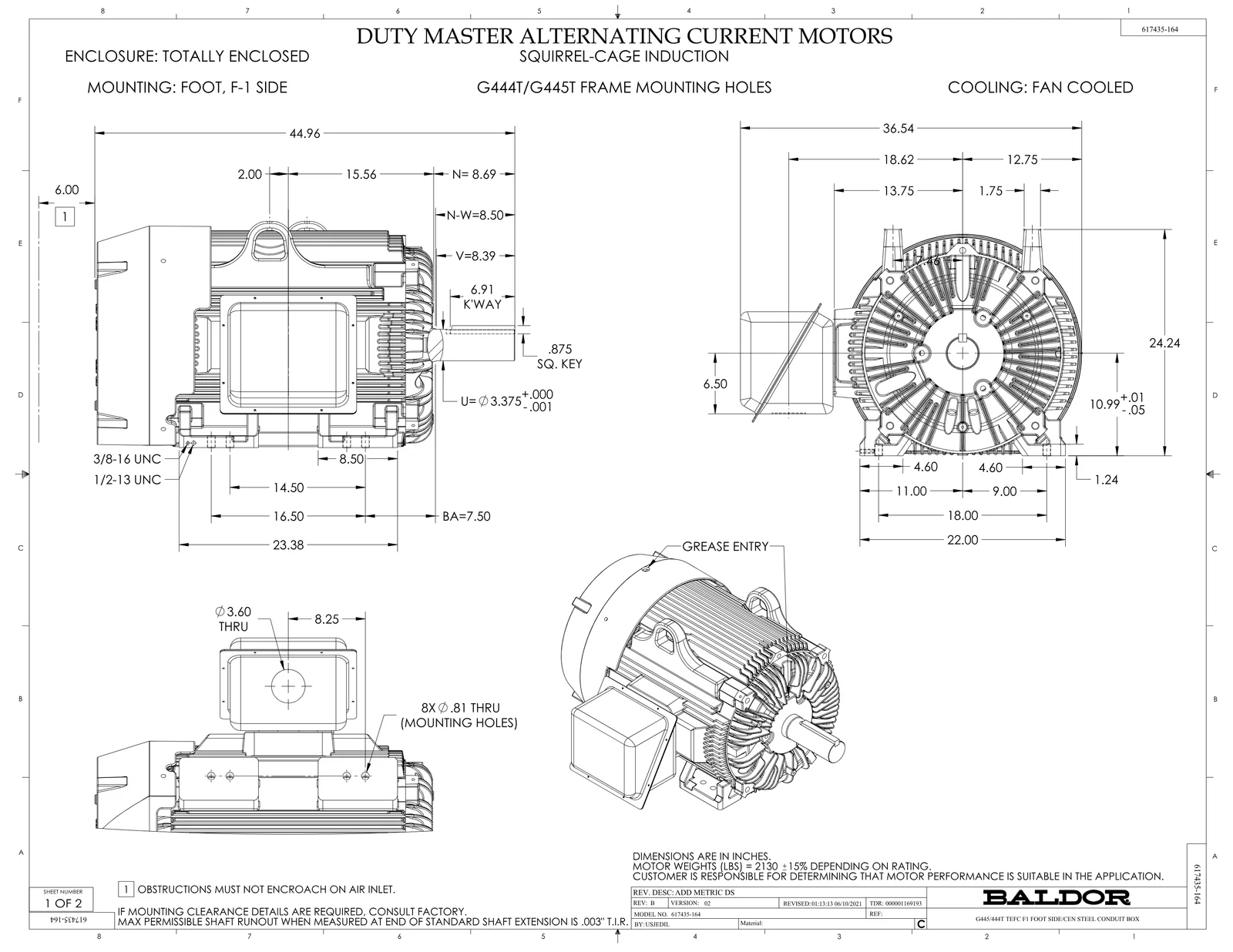

Dimension DrawingDimension SheetPDF·831 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·105 KB·English

Spare Parts 2

The genuine spare parts used for servicing and repairing the Baldor EM4409T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
000692000VD	LABEL WARNING	1 pcs	544 motors
034017014AB	LCKW 3/8 STD. PLATED	4 pcs	376 motors

Accessories 2

Genuine accessories that can be used with the Baldor EM4409T-4 motor and are supplied separately are listed below. Click a code to open the accessory page and see the other compatible motors.
