How can I get a price quote for Baldor EM4408T-4?

You can request a fast quote for Baldor EM4408T-4 from Yılsa Engineering. Reference part number YLSJN9HVIELQ5FP. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM4408T-4 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM4408T-4 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM4408T-4?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM4408T-4

Baldor-Reliance EM4408T-4 is a 250 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed general industrial AC electric motor.

BaldorMFR # EM4408T-4SKU # YLSJN9HVIELQ5FP

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4408T-4 is a 250 HP, 1785 rpm, 3-phase 460 V, 60 Hz, 449T frame, TEFC enclosed general industrial AC electric motor.

Baldor EM4408T-4

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame449T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency250.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

Current at voltage276.000 A @ 460.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load96.2 %

Feedback deviceNO FEEDBACK

High voltage full load current (A)276.0 a

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Motor lead quantity/wire size6 @ 2/0 AWG

Motor typeA44144M

Mounting arrangementF1

Number of poles4

Overall length53.21 IN

Power factor88

Product familyGeneral Industrial

Pulley end bearing typeBall

Pulley face codeStandard

Service factor1.15

Shaft diameter3.375 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1785 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

UPC781568820605

Nameplate

Nameplate numberNP2496L

Documents & CAD

For this product 2

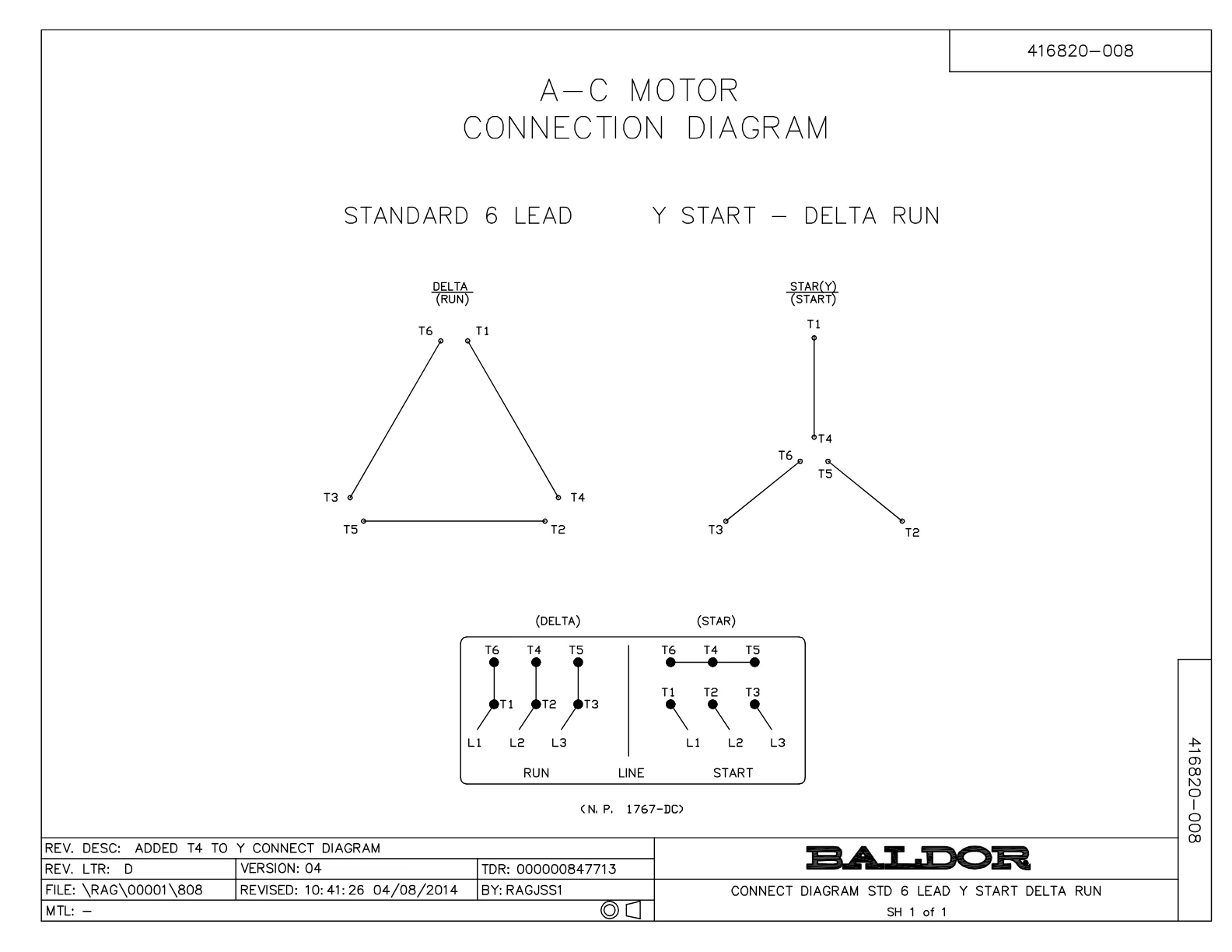

Wiring DiagramWiring DiagramPDF·32 KB·English

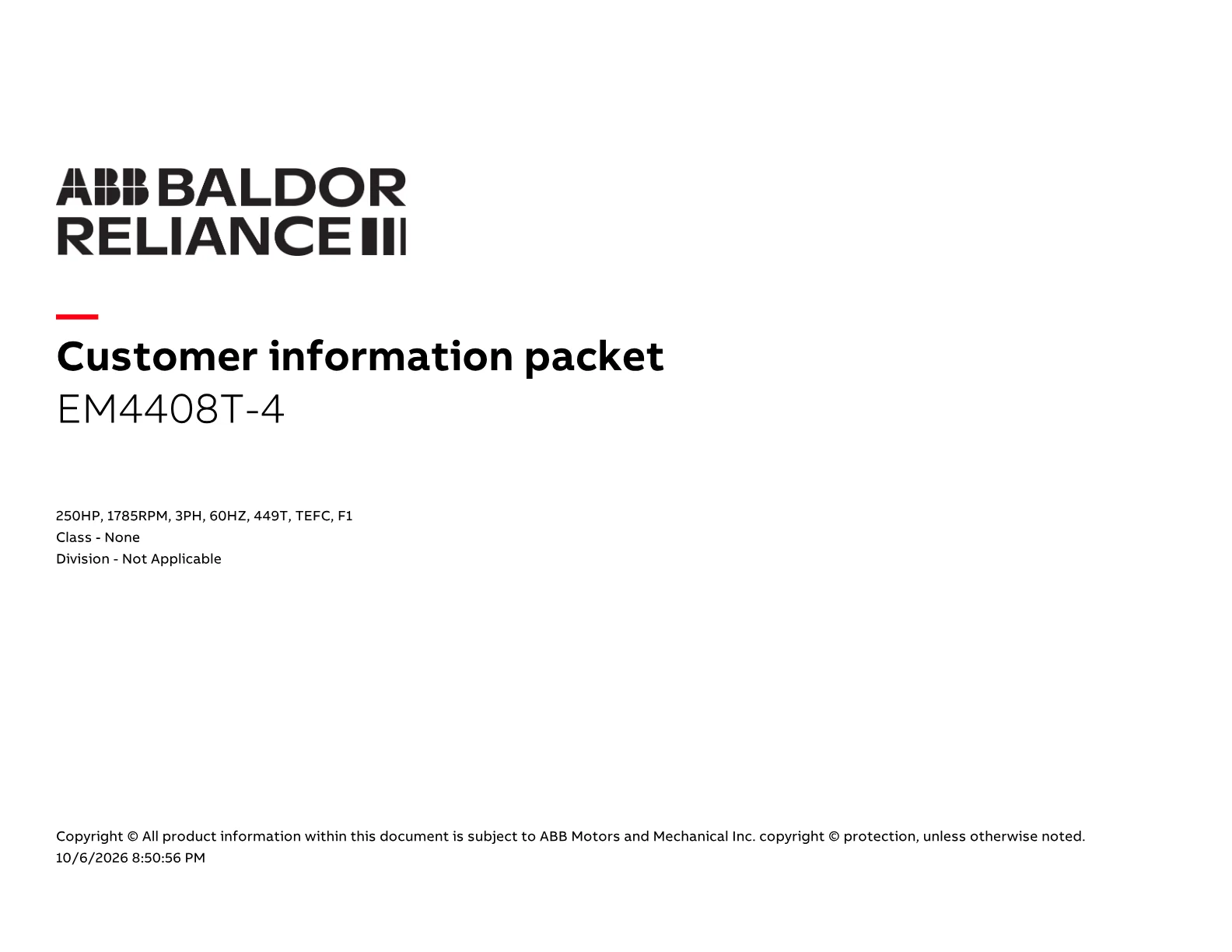

DatasheetDatasheetPDF·807 KB·English

Series documents 4· shared by this product series

Dimension DrawingDimension SheetPDF·272 KB·English

Technical DrawingDrawingPDF·862 KB·English

Technical DrawingDrawingPDF·87 KB·English

Performance CurvePerformance CurvePDF·139 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM4408T-4 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.
