Baldor EM4115T-8

Baldor-Reliance EM4115T-8 is a 50 HP, 1775 rpm, 3-phase 200 V, 60 Hz, 326T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM4115T-8SKU # YLSSSOGYQDZZZQE

EnclosureTEFC

Frame326T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4115T-8 is a 50 HP, 1775 rpm, 3-phase 200 V, 60 Hz, 326T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM4115T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame326T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage129.000 A @ 208.0 V · 131.000 A @ 200.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)131.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 6 AWG

Motor type1266M

Mounting arrangementF1

Number of poles4

Overall length30.28 IN

Power factor87

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568118399

Nameplate

Catalog numberEM4115T-8

EnclosureTEFC

Specification number12H013X281G1

CC number010A

Frame size326T

Horsepower (HP)50

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterB

Voltage (V)200

Code letter (locked rotor kVA)H

Opposite drive end bearing6311

Drive end bearing6312

Current (A)131

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.5

GreasePOLYREX EM

Power factor87

Service factor1.15

Nameplate numberNP3443L

Performance

General characteristics· 200 V, 60 Hz, 50 hp

Line-to-line resistance at 25 °C (ohms)0.0211 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque446 lb-ft

Pull-up torque210 lb-ft

Locked-rotor torque229 lb-ft

Starting current (A)897 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	48	71	81	88	87	88	87
Efficiency %	0	91.5	94.4	94.9	94.7	94.3	93.6	94.5
Speed rpm	1799	1795	1790	1784	1778	1773	1765	1775
Line amps A	46.6	62	82	107	131	165	197	151.4
Power W	807	10380	20066	29839	39736	49740	59863	0
Torque lb-ft	0	37.25	74.5	111.75	149	186.25	223.5	0

Documents & CAD

For this product 3

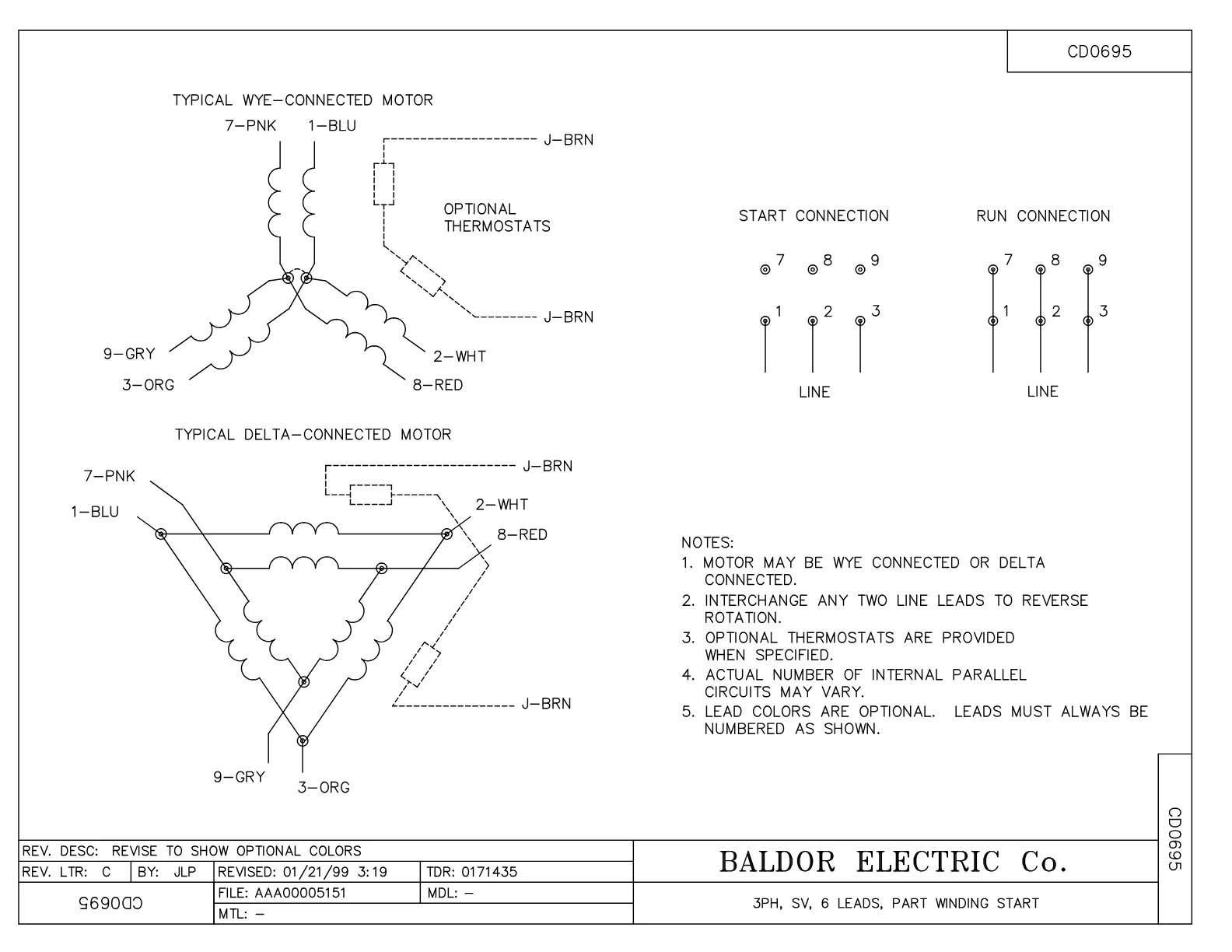

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·712 KB·English

Performance CurvePerformance CurvePDF·61 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·207 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM4115T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
09FN3001B03SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	101 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
