Baldor EM4115T-58

Baldor-Reliance EM4115T-58 is a 50 HP, 1470 rpm, 3-phase 400 V, 50 Hz, 326T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM4115T-58SKU # YLSSQGDFVYOALX2

EnclosureTEFC

Frame326T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4115T-58 is a 50 HP, 1470 rpm, 3-phase 400 V, 50 Hz, 326T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM4115T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame326T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsIE3 · UR · WEEE · CSA · CE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage67.000 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.9 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)67.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeG

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 6 AWG

Motor type1272M

Mounting arrangementF1

Number of poles4

Overall length30.28 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1470 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568773758

Nameplate

Catalog numberEM4115T-58

Specification number12C051Z201G1

Horsepower (HP)50/37KW

Phase3

Voltage (V)400

Current (A)67 IC411 209KG

Speed (rpm)1470 1/MIN

Frame size326T

Frequency (Hz)50

Ingress protection (IP)54

Service factor1.15

Code letter (locked rotor kVA)G

NEMA design letterB

Insulation classF

Nominal efficiency (%)93.9

Power factor85

Usable at 208VN/A

Rating40C AMB-CONT

Drive end bearing6312

Opposite drive end bearing6311

EnclosureTEFC

Nameplate numberNP3444L

Performance

General characteristics· 400 V, 50 Hz, 50 hp

Line-to-line resistance at 25 °C (ohms)0.1064 Ω

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)88° C

Start configurationDOL

Breakdown torque534 lb-ft

Pull-up torque269 lb-ft

Locked-rotor torque283 lb-ft

Starting current (A)440 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	52	74	82	85	86	87	86
Efficiency %	0	92	94.4	94.6	94.1	93.6	93.2	93.8
Speed rpm	1500	1493.6	1487.3	1480.7	1473.6	1469	1465.6	1471
Line amps A	23	28.2	38.7	52	67	76.7	83.4	72.8
Power W	712	10183	19778	29633	39706	45905	50078	43425
Torque lb-ft	0	44.19	88.42	133.3	178.5	206	224.3	195

Documents & CAD

For this product 3

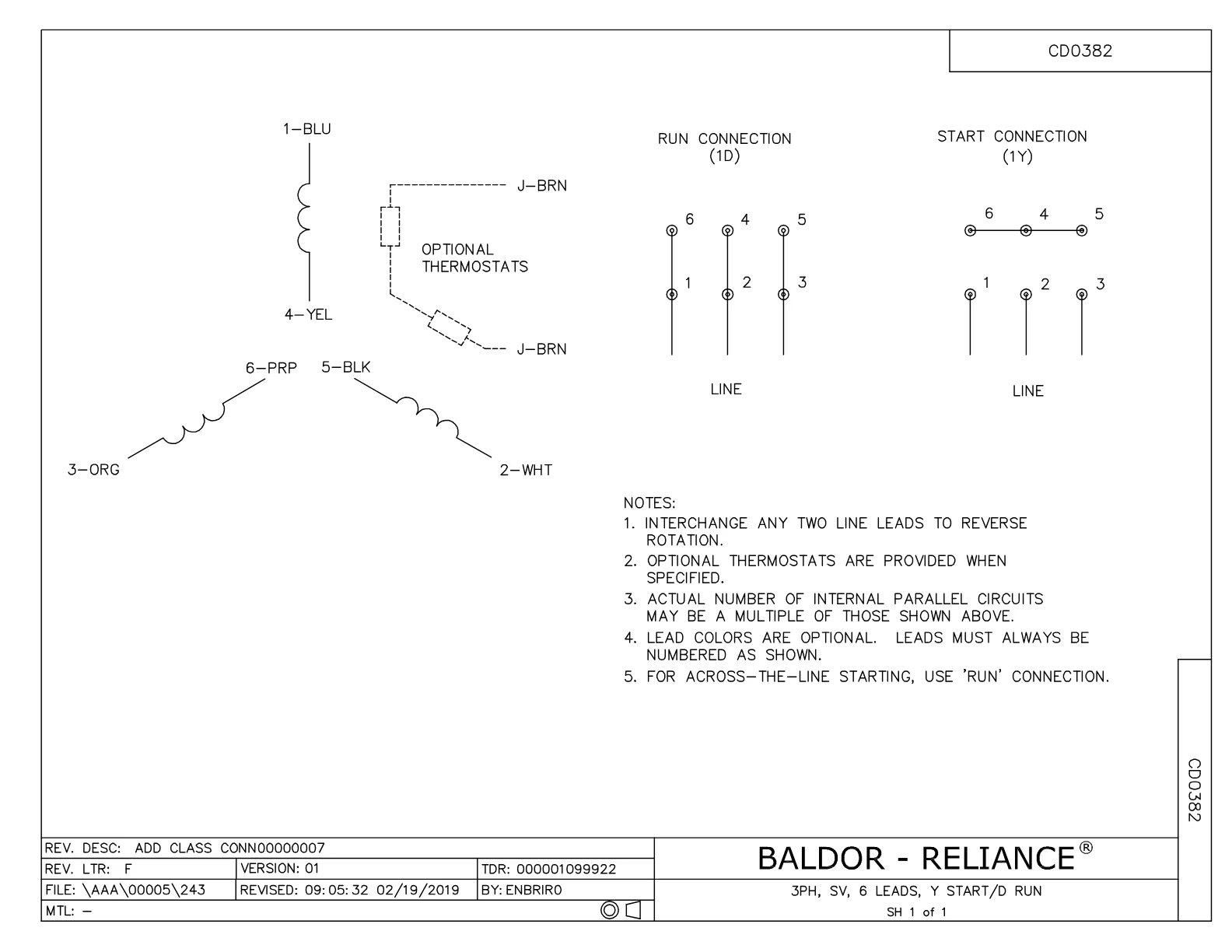

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·689 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·205 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM4115T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001B03SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	101 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
