How can I get a price quote for Baldor EM4114T-G?

You can request a fast quote for Baldor EM4114T-G from Yılsa Engineering. Reference part number YLSQT7MF2J6YXWN. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM4114T-G in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM4114T-G genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM4114T-G?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM4114T-G

Shaft Grounding Motor - 50 hp, 3600 rpm, 3 ph, 230/460 V, 326TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3540 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM4114T-GSKU # YLSQT7MF2J6YXWN

EnclosureTEFC

Frame326TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Shaft Grounding Motor - 50 hp, 3600 rpm, 3 ph, 230/460 V, 326TS Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 3540 rpm Base, Foot Mount, Continuous Duty

Baldor EM4114T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame326TS

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency50.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency460.0 V @ 60 HZ · 230.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCURUSEEV · NEMA_PREMIUM

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage122.000 A @ 208.0 V · 56.000 A @ 460.0 V · 112.000 A @ 230.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)56.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 8 AWG

Motor type1252M

Mounting arrangementF1

Number of poles2

Overall length28.84 IN

Power factor90

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)3540 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568665336

Motor CategoryShaft Grounding Motor

Motor Supply Voltage230/460 V

Base RPM3540 rpm

Weight584 lbs

Harmonization Code8501.52.8040

ApplicationsHeating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.

Additional DetailsBaldor shaft grounding brush installed internally. Class H insulated motor. Regreasable ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation. All models are Super-E® designs which meet NEMA Premium® efficiencies, are Inverter Ready, and have a 3-year warranty.

Mounting TypeFoot

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberEM4114T-G

EnclosureTEFC

Specification number12H135Y291G1

CC number010A

Frame size326TS

Horsepower (HP)50

Insulation classH

Frequency (Hz)60

Speed (rpm)3540

Phase3

NEMA design letterA

Voltage (V)230/460

Code letter (locked rotor kVA)H

Opposite drive end bearing6311

Drive end bearing6312

Current (A)112/56

Rating40C AMB-CONT

NEMA nominal efficiency (%)93

GreasePOLYREX EM

Power factor90

Service factor1.15

Usable at (V)50HZ 50HP 190/380V 134/67A

Nameplate numberNP3443LUA

Performance

General characteristics· 460 V, 60 Hz, 50 hp

Line-to-line resistance at 25 °C (ohms)0.11257 Ω

Temperature rise at rated load (°C)77° C

Temperature rise at service factor load (°C)95° C

Start configurationDOL

Breakdown torque292 lb-ft

Pull-up torque112 lb-ft

Locked-rotor torque139 lb-ft

Starting current (A)408 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	66	82	88	90	91	90	91
Efficiency %	0	91.1	93.8	94.2	93.9	93.2	92.3	93.5
Speed rpm	3598.3	3584.1	3571.8	3558.2	3544.1	3528.2	3511.2	3535
Line amps A	14.9	20.4	30.8	42.9	55.8	69.5	84.6	64
Power W	840	10735	20186	30062	40173	50447	60988	46337
Torque lb-ft	0	18.7	36.9	55.6	74.4	93.3	112	85.7

Documents & CAD

For this product 4

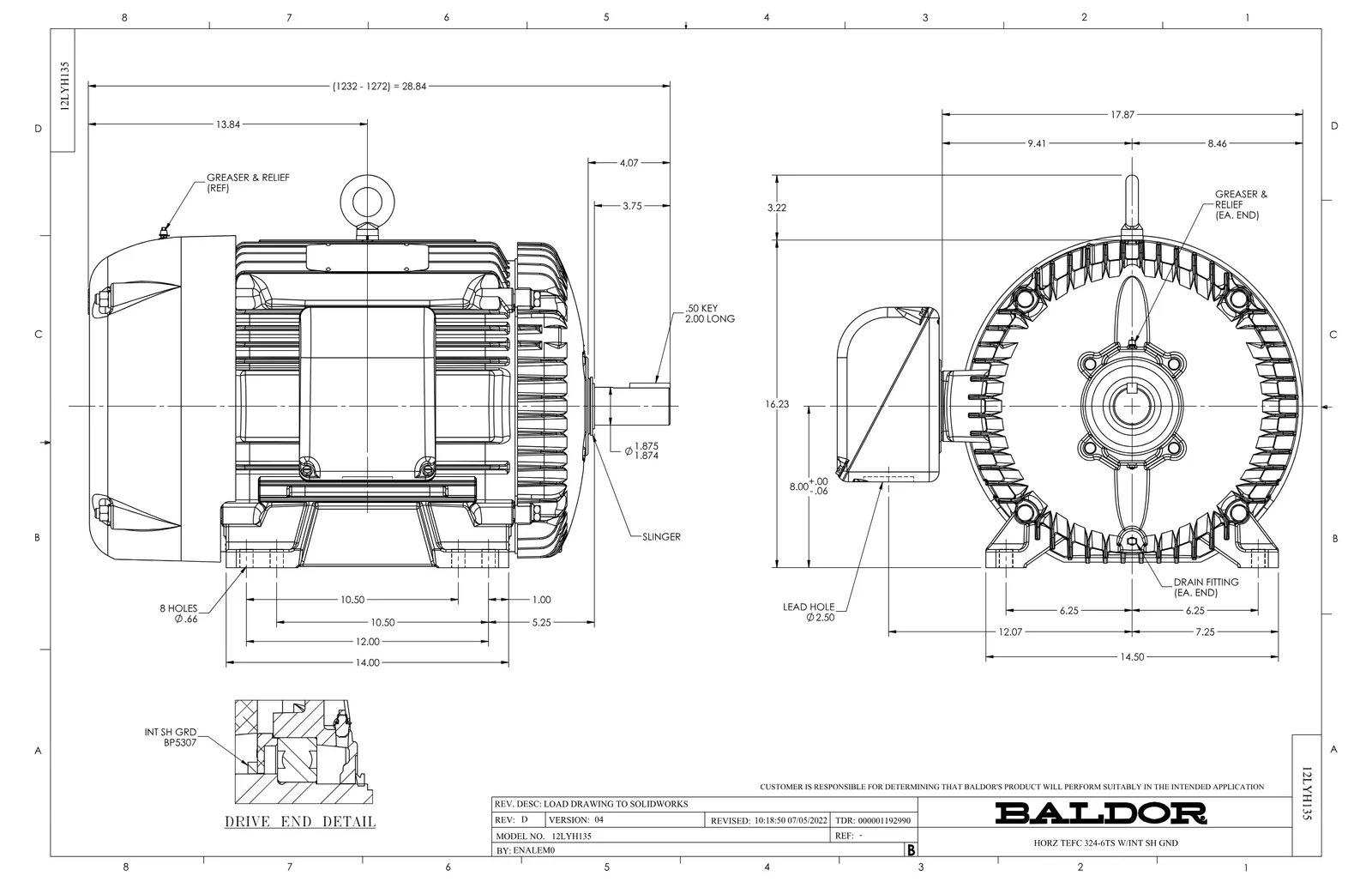

Dimension DrawingDimension SheetPDF·219 KB·English

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·705 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Technical DrawingDrawingPDF·87 KB·English

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EM4114T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
