Baldor EM4110T-8

General Purpose Motor - 40 hp, 1800 rpm, 3 ph, 200 V, 326T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM4110T-8SKU # YLSVAESM8Q1GKU6

EnclosureTEFC

Frame326T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 40 hp, 1800 rpm, 3 ph, 200 V, 326T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 60 Hz, 1775 rpm Base, Foot Mount, Continuous Duty

Baldor EM4110T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame326T

Frame materialIron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage111.000 A @ 200.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load94.1 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)111.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 4 AWG

Motor type1254M

Mounting arrangementF1

Number of poles4

Overall length30.28 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS NON-COMPLIANT

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1775 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodPart Winding

Thermal device - bearingNone

Thermal device - windingNormally Closed Thermostat

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568118351

Motor Supply Voltage200 V

Base RPM1775 rpm

Mounting TypeFoot

Weight626 lbs

ApplicationsPumps, fans, compressors, blowers, machine tools, conveyors and many other applications requiring 200 volt power.

Additional Details1.15 Service Factor, positively locked drive end bearing on 254T and larger, ball bearings, dynamically balanced rotors.

Harmonization Code8501.52.8040

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM4110T-8

EnclosureTEFC

Specification number12H013Z281

CC number010A

Frame size326T

Horsepower (HP)40

Insulation classF

Frequency (Hz)60

Speed (rpm)1775

Phase3

NEMA design letterA

Voltage (V)200

Code letter (locked rotor kVA)H

Opposite drive end bearing6311

Drive end bearing6312

Current (A)111

Rating40C AMB-CONT

NEMA nominal efficiency (%)94.1

GreasePOLYREX EM

Power factor82

Service factor1.15

Nameplate numberNP3443L

Performance

General characteristics· 200 V, 60 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.027 Ω

Temperature rise at rated load (°C)53° C

Temperature rise at service factor load (°C)64° C

Start configurationDOL

Breakdown torque364 lb-ft

Pull-up torque172 lb-ft

Locked-rotor torque183 lb-ft

Starting current (A)758 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	47	68	77	82	84	85	83
Efficiency %	0	90.1	93.6	94.4	94.4	94.2	93.3	94.3
Speed rpm	1799	1795	1790	1785	1780	1774	1767	1776
Line amps A	43.8	51.7	68.4	88.8	111	136	162	126
Power W	691	8341	16026	23787	31586	39589	47582	36388
Torque lb-ft	0	29.5	59	88.6	118	148	177	136

Documents & CAD

For this product 3

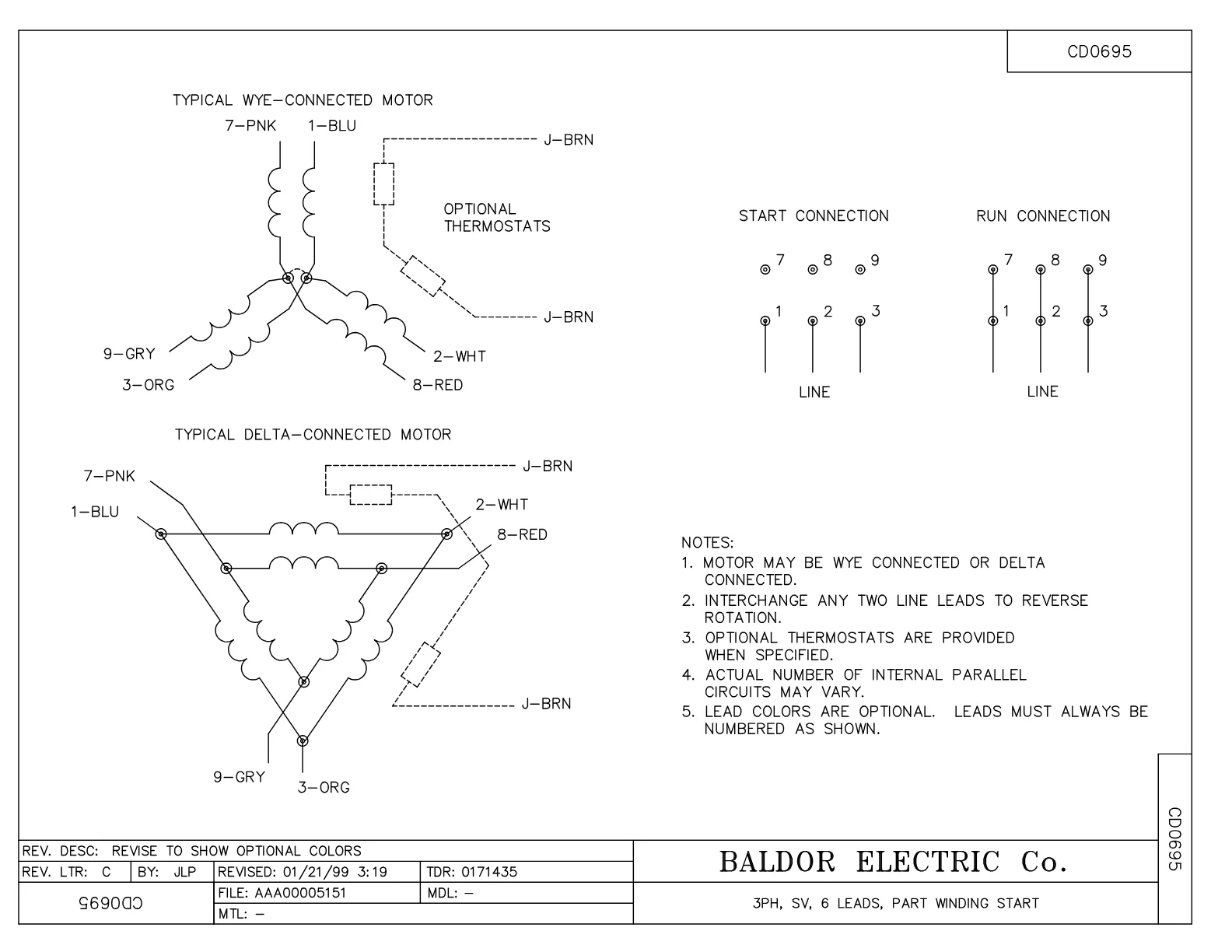

Wiring DiagramWiring DiagramPDF·51 KB·English

DatasheetDatasheetPDF·712 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·207 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM4110T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001B03SP	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	101 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.08 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
