Baldor EM4110T-58

Baldor-Reliance EM4110T-58 is a 40 HP, 1470 rpm, 3-phase 400 V, 50 Hz, 324T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM4110T-58SKU # YLSVWQKX1DHAPI

EnclosureTEFC

Frame324T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4110T-58 is a 40 HP, 1470 rpm, 3-phase 400 V, 50 Hz, 324T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM4110T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame324T

Frame materialCast Iron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency40.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CSA · CURUS · UKCA · UR · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage52.000 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)52.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

IP ratingNONE

KVA codeF

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type1272M

Mounting arrangementF1

Number of poles4

Overall length30.28 IN

Power factor86

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter2.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1470 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568773741

Nameplate

Catalog numberEM4110T-58

Specification number12C051Y897G1

Horsepower (HP)40/30KW IC411

Phase3

Voltage (V)400

Current (A)52

Speed (rpm)1470 1/MIN 318KG

Frame size324T

Frequency (Hz)50

Ingress protection (IP)54

Service factor1.15

Code letter (locked rotor kVA)F

NEMA design letterB

Insulation classF

Nominal efficiency (%)93.6

Power factor86

Usable at 208VN/A

Rating40C AMB-CONT

Drive end bearing6312

Opposite drive end bearing6311

EnclosureTEFC

Nameplate numberNP3444L

Performance

General characteristics· 400 V, 50 Hz, 40 hp

Line-to-line resistance at 25 °C (ohms)0.141 Ω

Temperature rise at rated load (°C)60° C

Temperature rise at service factor load (°C)75° C

Start configurationDOL

Breakdown torque399 lb-ft

Pull-up torque177 lb-ft

Locked-rotor torque246 lb-ft

Starting current (A)295 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	4	60	80	86	88	88	87	88
Efficiency %	0	92.9	93.8	94.5	93.8	93	91.8	93.3
Speed rpm	1499	1491	1485	1479	1472	1464	1455	1467
Line amps A	15.6	19.5	28.6	39.5	52.2	65.9	81.1	60.4
Power W	479	8094	15815	23473	31674	40041	48642	36694
Torque lb-ft	0	35.5	71.1	106	142	179	216	164

Documents & CAD

For this product 3

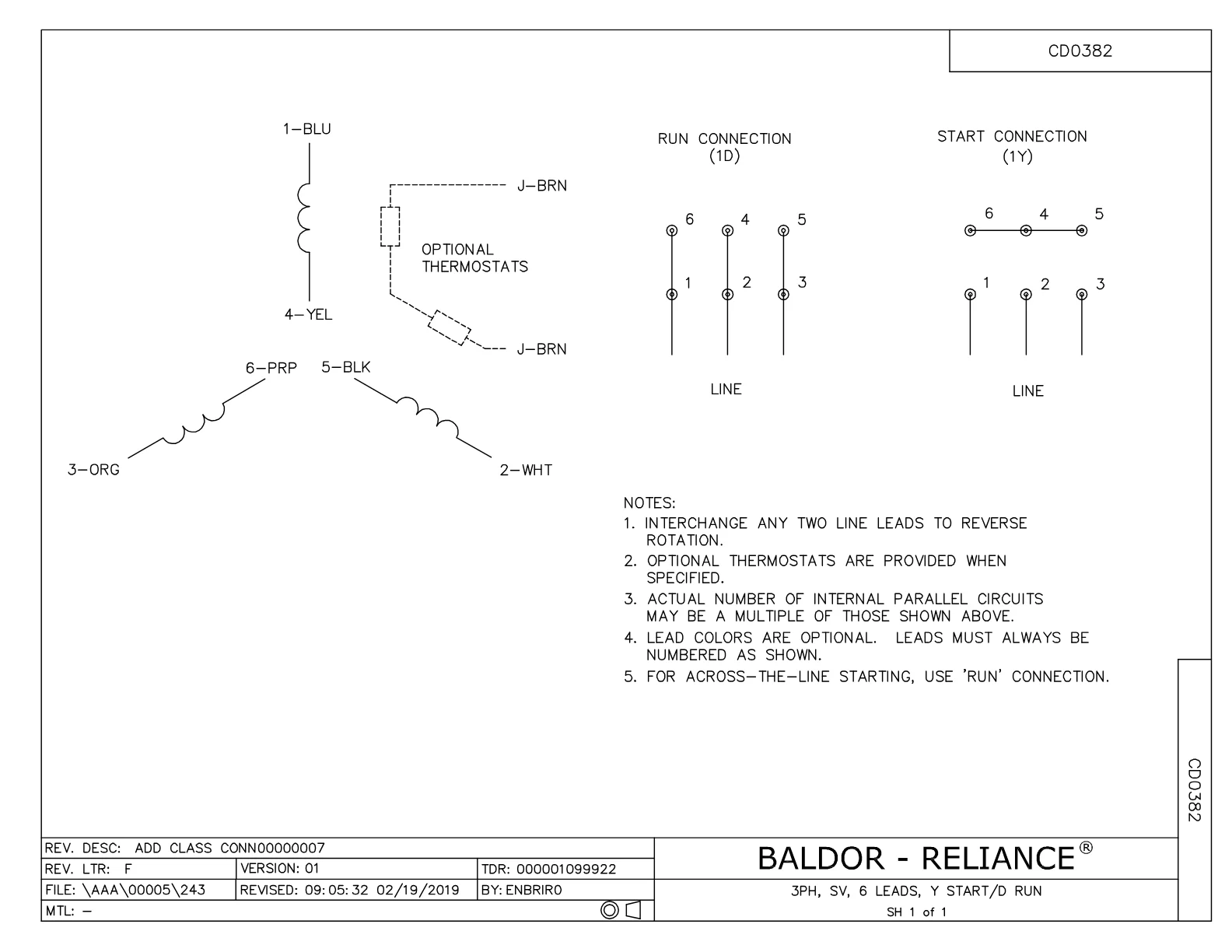

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·689 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·205 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EM4110T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	10 pcs	1,025 motors
12FH1002SP	FAN COVER, CAST	1 pcs	62 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
