Baldor EM4104T-58

General Purpose Motor - 30 hp, 1500 rpm, 3 ph, 400 V, 286T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1470 rpm Base, Rigid Base Mount, Continuous Duty

BaldorMFR # EM4104T-58SKU # YLSNJMCDHQQANUF

EnclosureTEFC

Frame286T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

General Purpose Motor - 30 hp, 1500 rpm, 3 ph, 400 V, 286T Frame, TEFC (Totally Enclosed Fan Cooled) Enclosure, 50 Hz, 1470 rpm Base, Rigid Base Mount, Continuous Duty

Baldor EM4104T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame286T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency30.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · WEEE · UR · UKCA · IE3 · CURUS · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage43.000 A @ 400.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load93.0 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)43.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type1064M

Mounting arrangementF1

Number of poles4

Overall length27.76 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1470 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568773734

Motor Supply Voltage400 V

Base RPM1470 rpm

Mounting TypeRigid Base

Weight475 lbs

Motor CategoryGeneral Purpose Motor

Product TypeGeneral Purpose Motors

Nameplate

Catalog numberEM4104T-58

Specification number10C151Z706G1

Horsepower (HP)30/22KW

Phase3

Voltage (V)400

Current (A)43 245 KG

Speed (rpm)1470 1/MIN IC411

Frame size286T

Frequency (Hz)50

Ingress protection (IP)54

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

Nominal efficiency (%)93

Power factor81

Usable at 208VN/A

Rating40C AMB-CONT

Drive end bearing6311

Opposite drive end bearing6309

EnclosureTEFC

Nameplate numberNP3444L

Performance

General characteristics· 400 V, 50 Hz, 30 hp

Line-to-line resistance at 25 °C (ohms)0.18648 Ω

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)78° C

Start configurationDOL

Breakdown torque349 lb-ft

Pull-up torque154 lb-ft

Locked-rotor torque180 lb-ft

Starting current (A)292 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	42	64	76	81	83	84	82
Efficiency %	0	89	92.8	93.6	93.4	93	92.8	93.2
Speed rpm	1500	1493.1	1487.1	1480.8	1474.1	1469.7	1466.8	1471
Line amps A	19.1	21.7	27.1	34.3	42.6	48.2	51.9	46
Power W	629	6316	12094	17980	24028	27745	30205	26258
Torque lb-ft	0	26.52	53.17	80.01	107.2	123.7	134.5	117

Documents & CAD

For this product 3

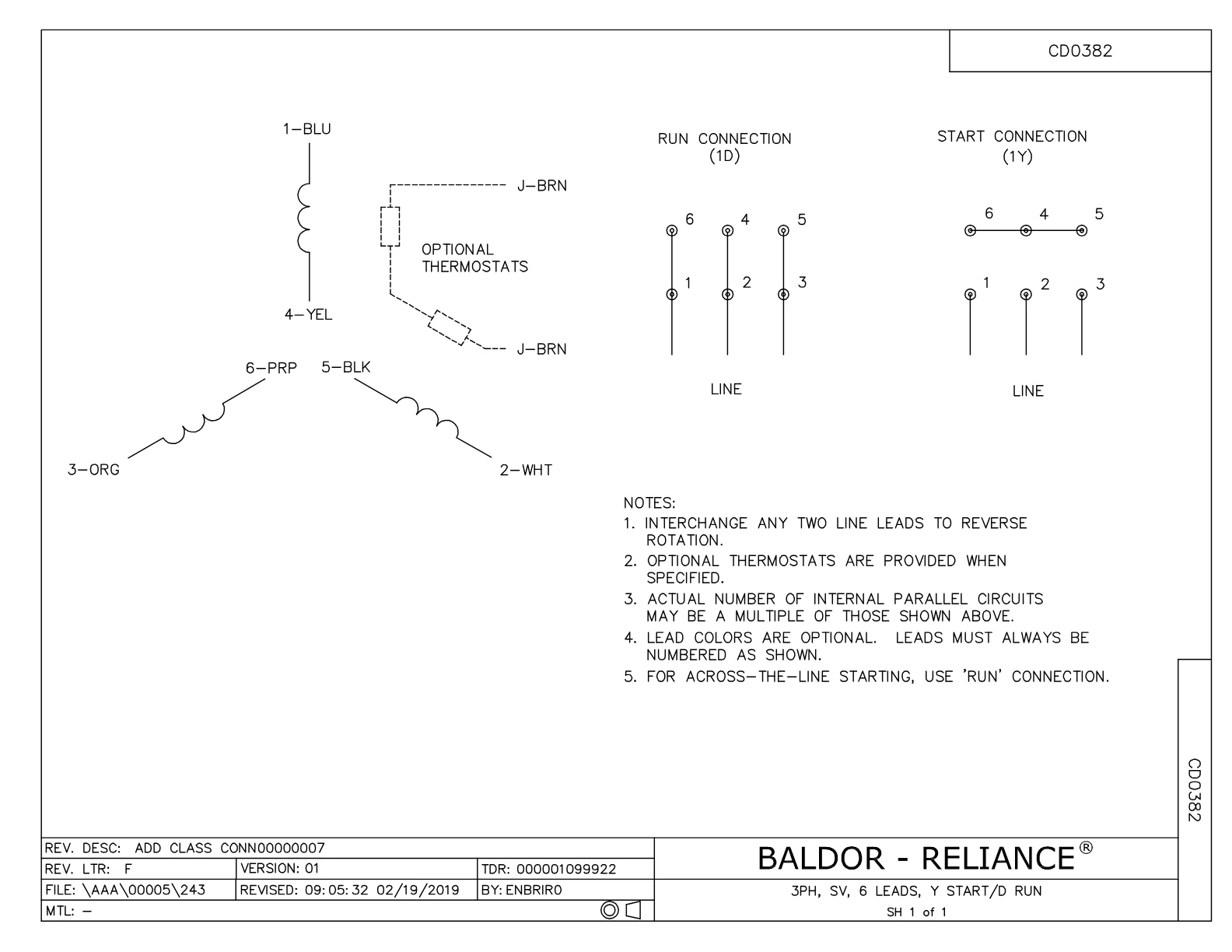

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·667 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·183 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM4104T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
09FN3001C02	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	155 motors
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	8 pcs	1,025 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
