Baldor EM4103T-58

Baldor-Reliance EM4103T-58 is a 25 HP, 1475 rpm, 3-phase 400 V, 50 Hz, 284T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM4103T-58SKU # YLSZIULOLMYBUFJ

EnclosureTEFC

Frame284T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM4103T-58 is a 25 HP, 1475 rpm, 3-phase 400 V, 50 Hz, 284T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM4103T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame284T

Frame materialIron

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency25.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · WEEE · UR · UKCA · IE3 · CURUS · CSA

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage37.000 A @ 400.0 V

Design codeA

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load92.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)37.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 8 AWG

Motor type1056M

Mounting arrangementF1

Number of poles4

Overall length27.76 IN

Power factor79

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorShaft Slinger

Speed (rpm)1475 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568773727

Nameplate

Catalog numberEM4103T-58

Specification number10C151Z391G1

Horsepower (HP)25/18.6KW

Phase3

Voltage (V)400 199KG

Current (A)37

Speed (rpm)1475 1/MIN IC411

Frame size284T

Frequency (Hz)50

Ingress protection (IP)54

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterA

Insulation classF

Nominal efficiency (%)92.6

Power factor79

Usable at 208VN/A

Rating40C AMB-CONT

Drive end bearing6311

Opposite drive end bearing6309

EnclosureTEFC

Nameplate numberNP3444L

Performance

General characteristics· 400 V, 50 Hz, 25 hp

Line-to-line resistance at 25 °C (ohms)0.221 Ω

Temperature rise at rated load (°C)64° C

Temperature rise at service factor load (°C)77° C

Start configurationDOL

Breakdown torque332 lb-ft

Pull-up torque151 lb-ft

Locked-rotor torque190 lb-ft

Starting current (A)255 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	39	61	72	79	82	84	77
Efficiency %	0	86.7	91.2	92.6	93	92.3	91.5	92.7
Speed rpm	1499	1493	1488	1483	1478	1471	1464	1475
Line amps A	18.1	19.8	24.1	30.2	36.7	44.4	53.7	43.1
Power W	664	5407	10226	15089	20085	25142	31378	23116
Torque lb-ft	0	22.1	44.1	66.3	88.9	111	138	102

Documents & CAD

For this product 3

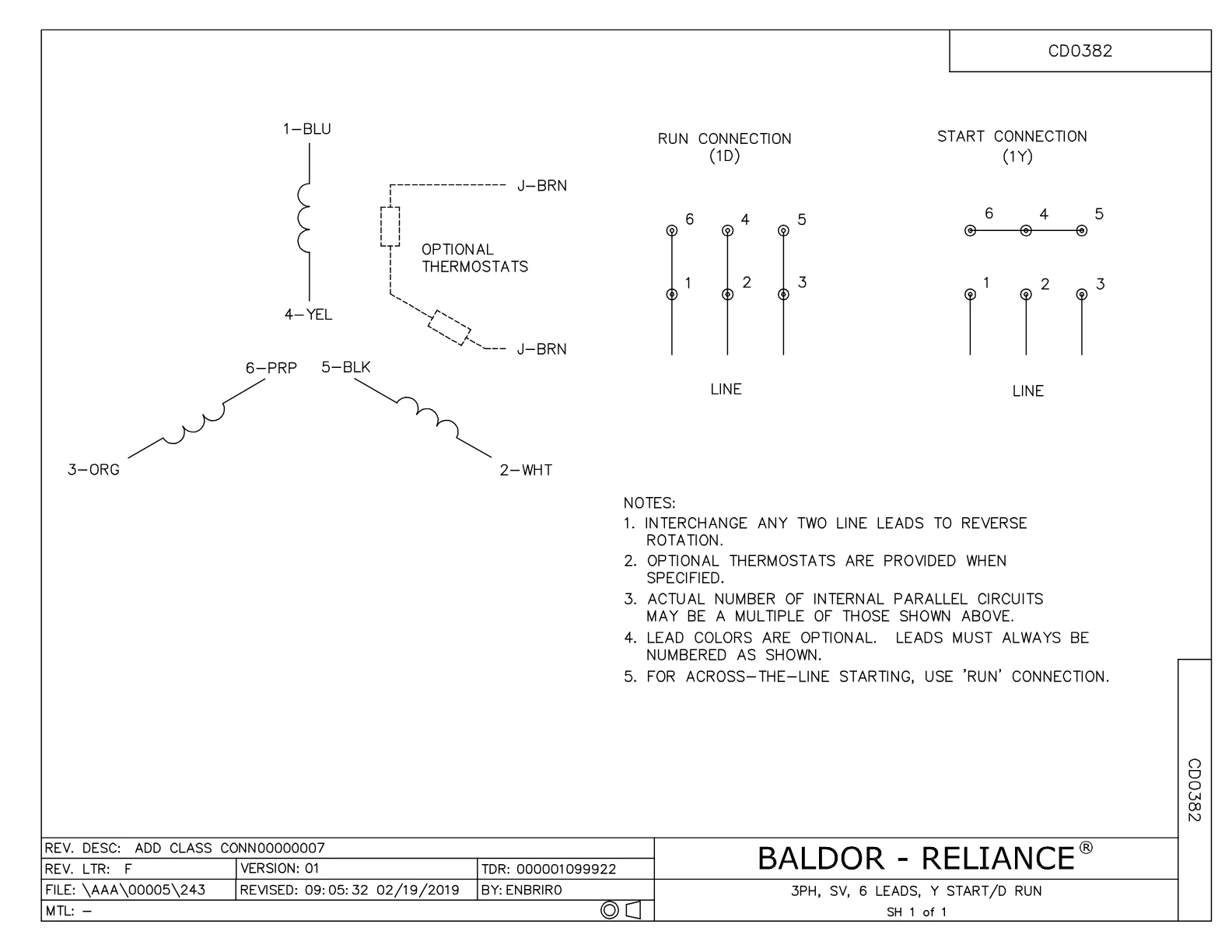

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·667 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

Dimension DrawingDimension SheetPDF·183 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 8

The genuine spare parts used for servicing and repairing the Baldor EM4103T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
10CB3000SP	KOBX, CAST W/2.00 LEAD HOLE	1 pcs	220 motors
HW1001A31	LOCKWASHER 5/16, ZINC PLT.591 OD, .319 I	8 pcs	1,025 motors
10GS1000	GASKET, CONDUIT BOX LID	1 pcs	209 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
09FN3001C02	EXTERNAL FAN, PLASTIC (COMES W/SCREW FRO	1 pcs	155 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.125 gal	1,997 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
