Baldor EM3769T-8

Baldor-Reliance EM3769T-8 is a 7.5 HP, 3500 rpm, 3-phase 200 V, 60 Hz, 213T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM3769T-8SKU # YLSBQ3IJ9JFDWER

EnclosureTEFC

Frame213T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3769T-8 is a 7.5 HP, 3500 rpm, 3-phase 200 V, 60 Hz, 213T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM3769T-8

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame213T

Frame materialCast Iron

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)3600 RPM @ 60 HZ

Voltage at frequency200.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA_PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage21.000 A @ 200.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)21.0 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size3 @ 14 AWG

Motor type0724M

Mounting arrangementF1

Number of poles2

Overall length18.45 IN

Power factor85

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)3500 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568118139

Nameplate

Catalog numberEM3769T-8

Specification number07H002Y364G1

Horsepower (HP)7.5

Voltage (V)200

Current (A)21

Speed (rpm)3500

Frame size213T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterB

Insulation classF

NEMA nominal efficiency (%)89.5

Power factor85

Rating40C AMB-CONT

CC number010A

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP3441L

Performance

General characteristics· 200 V, 60 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)0.235 Ω

Temperature rise at rated load (°C)47° C

Temperature rise at service factor load (°C)57° C

Start configurationDOL

Breakdown torque48.8 lb-ft

Pull-up torque14.4 lb-ft

Locked-rotor torque20.3 lb-ft

Starting current (A)145 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	49	71	80	85	87	87	86
Efficiency %	0	83.2	88.9	90.3	89.8	89.3	88.4	89.5
Speed rpm	3592	3574	3552	3527	3500	3473	3442	3484
Line amps A	8.5	9.87	12.8	16.8	21.1	26	31.3	24
Power W	260	1679	3135	4652	6200	7795	9464	7157
Torque lb-ft	0	2.75	5.52	8.38	11.2	14.1	17.1	12.9

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·38 KB·English

DatasheetDatasheetPDF·672 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

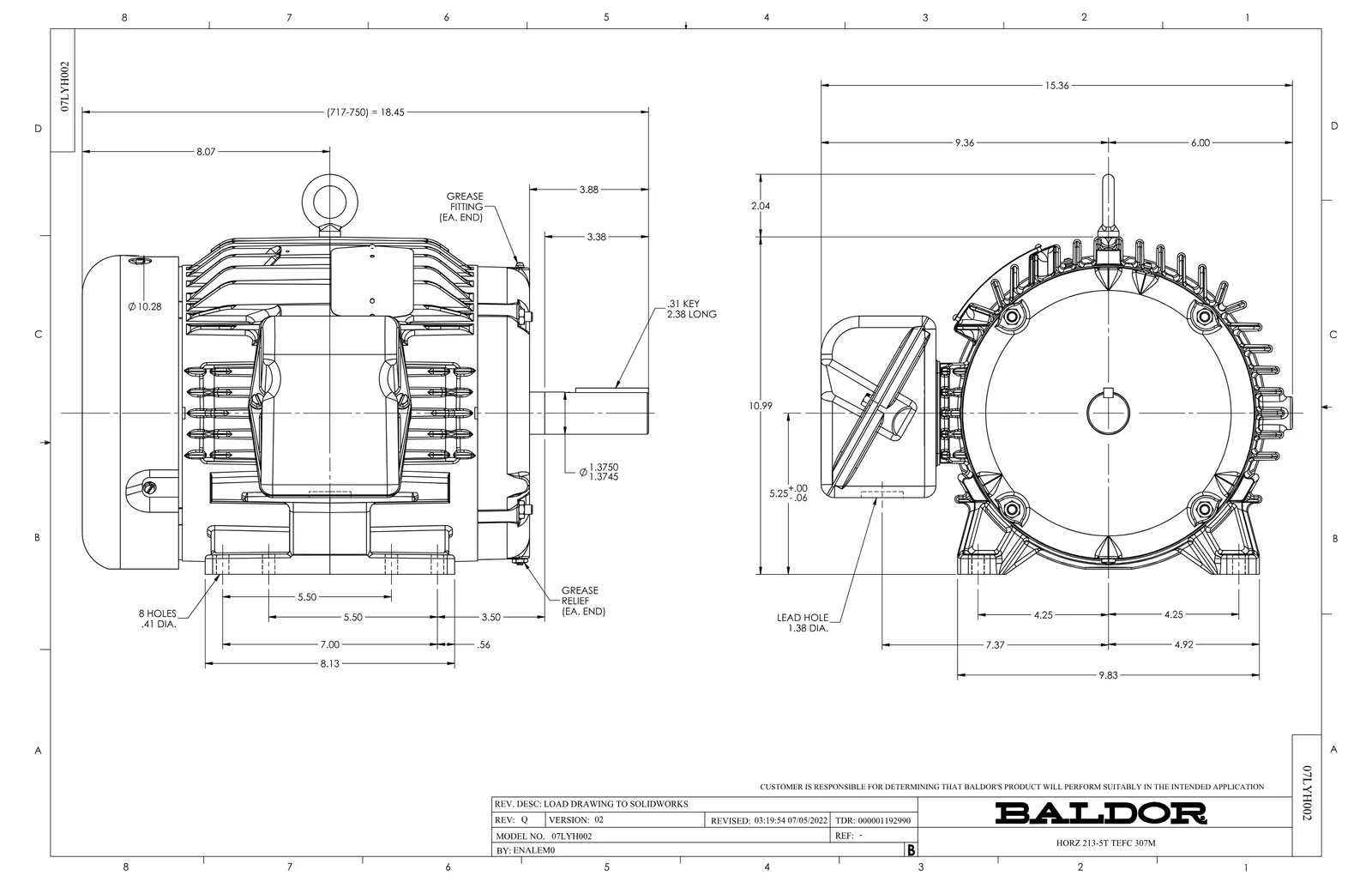

Dimension DrawingDimension SheetPDF·180 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 9

The genuine spare parts used for servicing and repairing the Baldor EM3769T-8 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36FN3000C02SP	EXFN, PLASTIC, 5.25 OD, 1.175 ID	1 pcs	116 motors
09CB3002SP	CB W/1.38 LEAD HOLE FOR 37, 39, 307 & 30	1 pcs	88 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	4 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
09CB3501SP	CONDUIT BOX LID FOR 09CB3001 & 09CB3002	1 pcs	392 motors
09GS1013SP	GS FOR 09CB3501, 12CB1500 & 12CB1503 LID	1 pcs	245 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.036 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
