Baldor EM3714T-58

Baldor-Reliance EM3714T-58 is a 10 HP, 1460 rpm, 3-phase 400 V, 50 Hz, 215T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM3714T-58SKU # YLSSXYBDECXENP

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3714T-58 is a 10 HP, 1460 rpm, 3-phase 400 V, 50 Hz, 215T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM3714T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame215T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency10.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CURUS · CURUSEEV · NEMA_PREMIUM · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage14.300 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load90.4 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)14.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeNot Inverter

KVA codeJ

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 14 AWG

Motor type3752M

Mounting arrangementF1

Number of poles4

Overall length20.51 IN

Power factor84

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568775011

Nameplate

Catalog numberEM3714T-58

Specification number37A001R070G1

Horsepower (HP)10/7.5KW

Phase3

Voltage (V)400

Current (A)14.3

Speed (1/min)1460

Frame size215T

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classF

Nominal efficiency (%)90.4

Power factor84

Rating40C AMB-S1 CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 10 hp

Line-to-line resistance at 25 °C (ohms)1 Ω

Temperature rise at rated load (°C)94° C

Temperature rise at service factor load (°C)115° C

Start configurationDOL

Breakdown torque128 lb-ft

Pull-up torque42.5 lb-ft

Locked-rotor torque61 lb-ft

Starting current (A)108 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	48	71	80	84	85	85	85
Efficiency %	0	89.5	92	91.6	90.4	88.8	86.4	89.4
Speed rpm	1500	1492	1483	1473	1461	1449	1433	1454
Line amps A	5.38	6.3	8.33	11.1	14.3	17.7	22.1	16.3
Power W	187	2113	4101	6124	8289	10477	12957	9602
Torque lb-ft	0	8.92	17.9	26.8	36.1	45.2	55	41.6

Documents & CAD

For this product 3

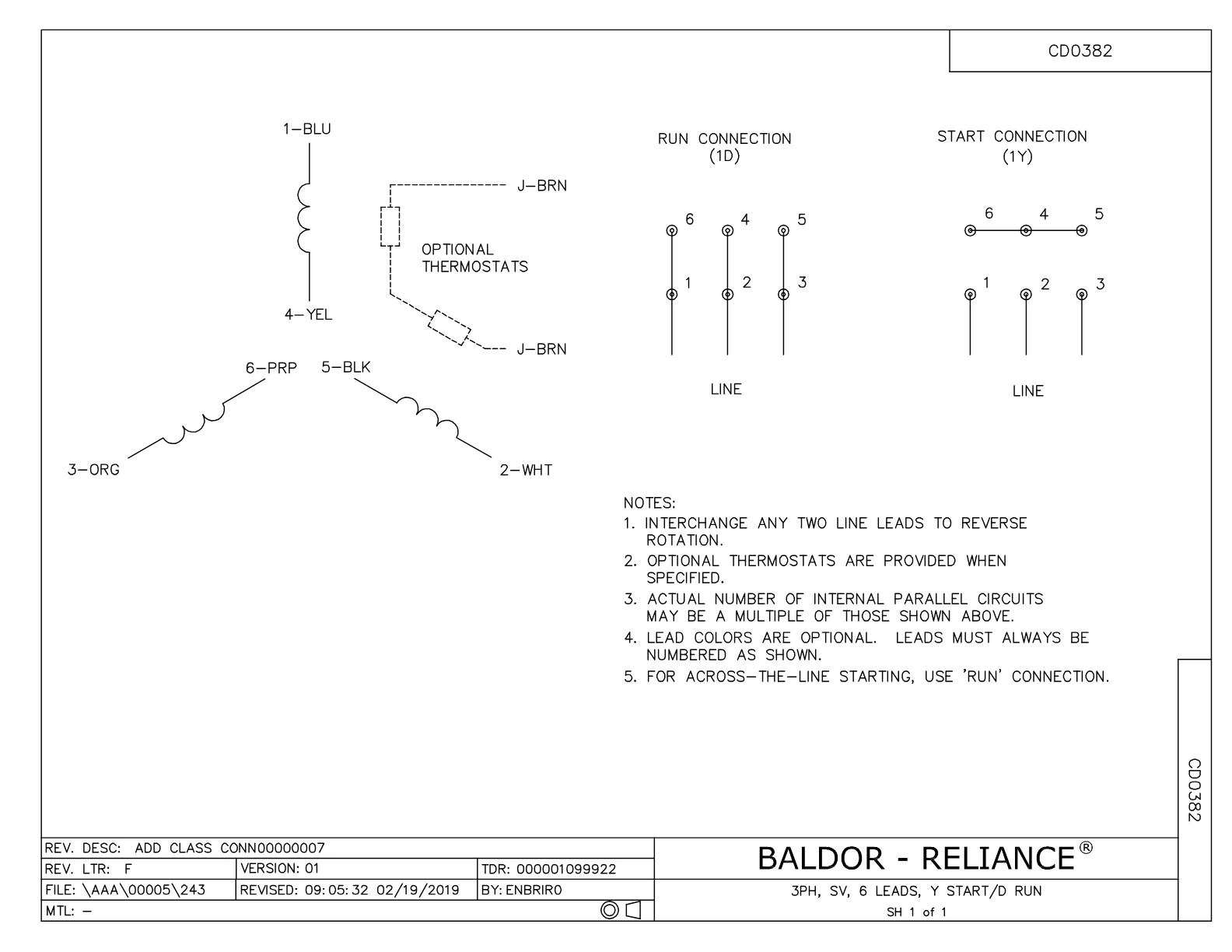

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·582 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·99 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 7

The genuine spare parts used for servicing and repairing the Baldor EM3714T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37GS1000SP	GASKET, CONDUIT BOX STD., .06 THICK LEXI	1 pcs	264 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
37FN3002A01SP	EXFN, PLASTIC, 9.00 OD, 1.155 ID	1 pcs	141 motors
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.028 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
