How can I get a price quote for Baldor EM3710T-58?

You can request a fast quote for Baldor EM3710T-58 from Yılsa Engineering. Reference part number YLSPCLDR4YMETZ. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM3710T-58 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM3710T-58 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM3710T-58?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM3710T-58

Baldor-Reliance EM3710T-58 is a 7.5 HP, 1460 rpm, 3-phase 400 V, 50 Hz, 213T frame, TEFC enclosed general purpose AC electric motor.

BaldorMFR # EM3710T-58SKU # YLSPCLDR4YMETZ

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3710T-58 is a 7.5 HP, 1460 rpm, 3-phase 400 V, 50 Hz, 213T frame, TEFC enclosed general purpose AC electric motor.

Baldor EM3710T-58

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame213T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency7.500 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsCE · CURUS · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage10.800 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.6 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)10.8 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

KVA codeH

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 14 AWG

Motor type3736M

Mounting arrangementF1

Number of poles4

Overall length19.01 IN

Power factor82

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.375 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodWye Start - Delta Run

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811849

Nameplate

Catalog numberEM3710T-58

Specification number37A001S060G1

Horsepower (HP)7.5/5.5KW

Phase3

Voltage (V)400

Current (A)10.8

Speed (1/min)1460

Frame size213T

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)H

NEMA design letterB

Insulation classF

Nominal efficiency (%)89.6

Power factor82

Rating40C AMB-S1 CONT

Drive end bearing6307

Opposite drive end bearing6206

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 7.5 hp

Line-to-line resistance at 25 °C (ohms)1.49 Ω

Temperature rise at rated load (°C)74° C

Temperature rise at service factor load (°C)93° C

Start configurationDOL

Breakdown torque72.1 lb-ft

Pull-up torque36.6 lb-ft

Locked-rotor torque44.4 lb-ft

Starting current (A)70.4 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	6	45	67	77	82	84	84	83
Efficiency %	0	87	90.5	90.7	89.6	88.1	86	88.7
Speed rpm	1499	1492	1483	1474	1463	1451	1437	1456
Line amps A	4.62	5.17	6.66	8.66	11	13.6	16.7	12.6
Power W	183	1608	3073	4616	6242	7931	9758	7255
Torque lb-ft	0	6.6	13.2	20	26.9	33.9	41.1	31.1

Documents & CAD

For this product 3

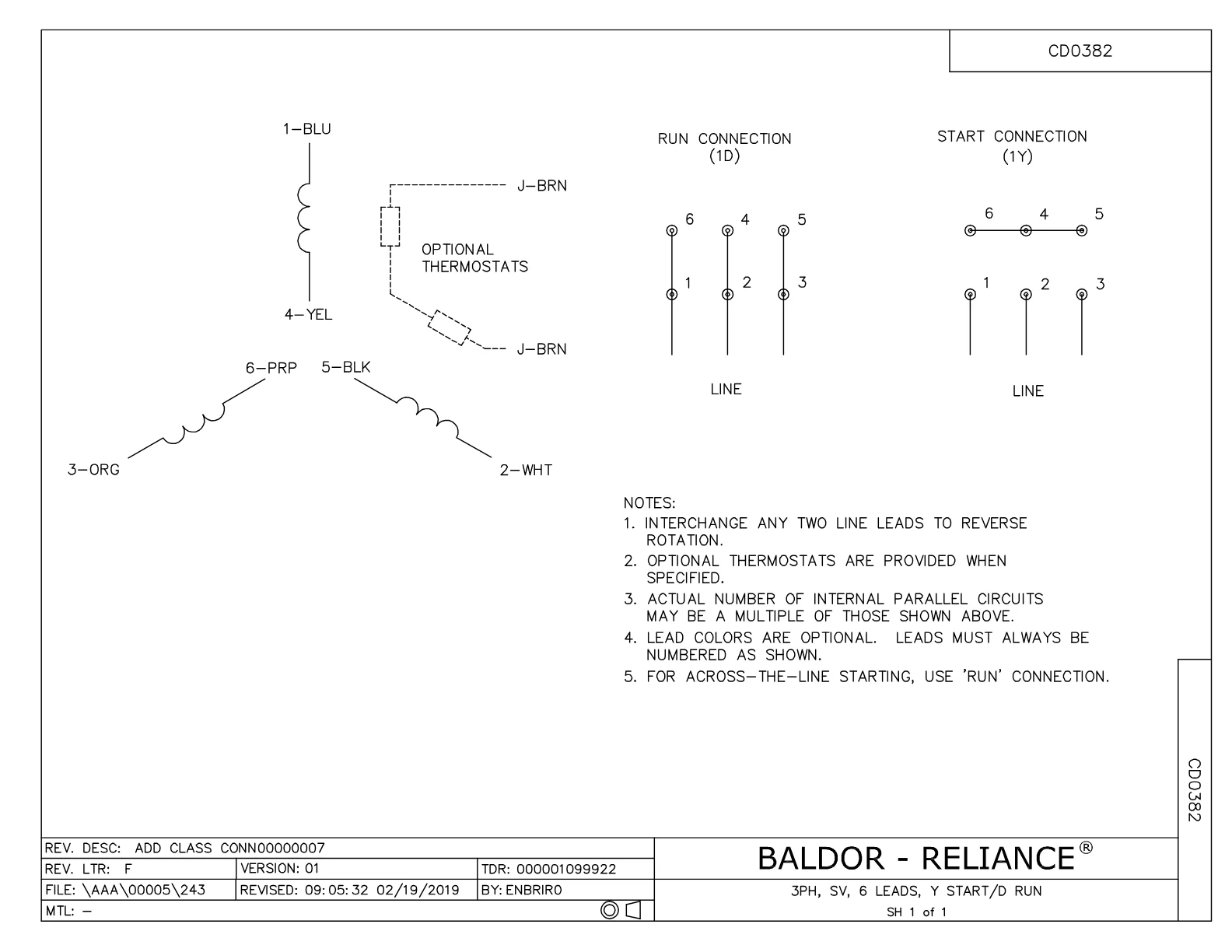

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·581 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·99 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 6

The genuine spare parts used for servicing and repairing the Baldor EM3710T-58 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
37FN3002C01	EXFN, PLASTIC, 6.00 OD, 1.155 ID	1 pcs	245 motors
37GS1000SP	GASKET, CONDUIT BOX STD., .06 THICK LEXI	1 pcs	264 motors
51XW2520A12	.25-20 X .75, TAPTITE II, HEX WSHR SLTD	2 pcs	1,543 motors
07FH4007SP	PRIMED	1 pcs	189 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
