Baldor EM3610T-57

Baldor-Reliance EM3610T-57 is a general purpose three-phase AC electric motor rated 3 HP, 2850 rpm, 3 phase 230/400 V, 50 Hz, with a 182T frame and TEFC enclosure.

BaldorMFR # EM3610T-57SKU # YLSQNWSSBG96XE

EnclosureTEFC

Frame182T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3610T-57 is a general purpose three-phase AC electric motor rated 3 HP, 2850 rpm, 3 phase 230/400 V, 50 Hz, with a 182T frame and TEFC enclosure.

Baldor EM3610T-57

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame182T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ · 230.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · CE · CURUS · IE3 · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage7.300 A @ 230.0 V · 4.200 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.9 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.2 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeK

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3534M

Mounting arrangementF1

Number of poles2

Overall length15.16 IN

Power factor88

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2850 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811764

Nameplate

Catalog numberEM3610T-57

Specification number35L100L461G1

Horsepower (HP)3/2.2KW

Phase3

Voltage (V)230/400

Current (A)7.3/4.2

Speed (1/min)2850

Frame size182T

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classF

Nominal efficiency (%)85.9

Power factor88

Rating40C AMB-CONT

Drive end bearing6206

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)4.5 Ω

Temperature rise at rated load (°C)75° C

Temperature rise at service factor load (°C)92° C

Start configurationDOL

Breakdown torque20.34 lb-ft

Pull-up torque14.12 lb-ft

Locked-rotor torque20.63 lb-ft

Starting current (A)36.11 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	9	54	75	85	88	89	90	89
Efficiency %	0	86.9	88.9	88.5	86.7	84.3	81.6	85.4
Speed rpm	2999	2963	2932	2900	2863	2820	2773	2841
Line amps A	1.44	1.75	2.43	3.24	4.18	5.26	6.36	4.82
Power W	90.33	659	1270	1898	2556	3240	3967	2962
Torque lb-ft	0	1.36	2.71	4.08	5.45	6.82	8.22	6.26

Documents & CAD

For this product 3

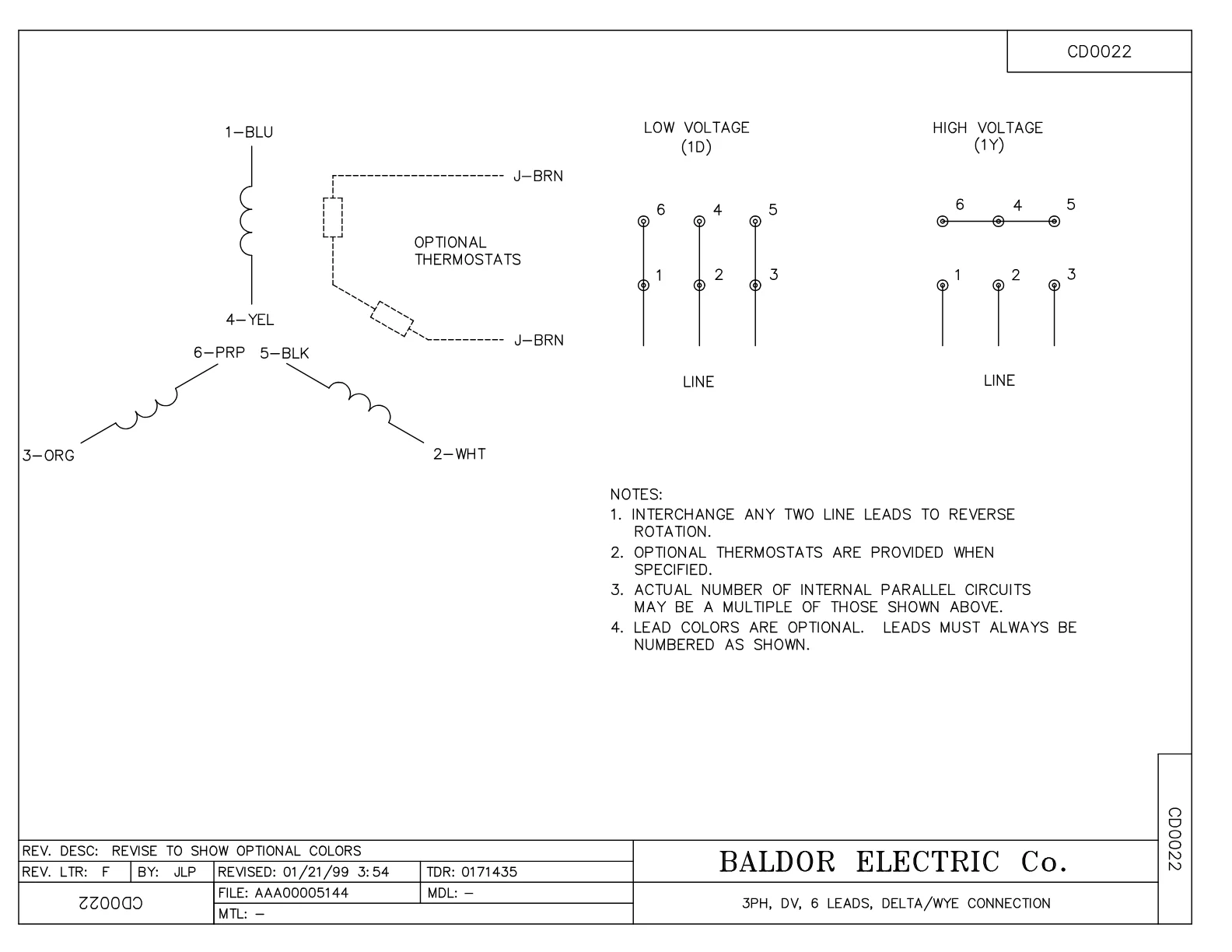

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·590 KB·English

Performance CurvePerformance CurvePDF·59 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·107 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM3610T-57 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
