How can I get a price quote for Baldor EM3558T-57?

You can request a fast quote for Baldor EM3558T-57 from Yılsa Engineering. Reference part number YLSJNSSYD2ZH6V. Submit a request via the contact or quote form and our team replies shortly with price and lead time.

Is Baldor EM3558T-57 in stock and what is the delivery time?

Yılsa Engineering sources products as genuine items through a wide supplier network. Typical lead time is 7-21 days, with 1-3 business days domestic transit in Türkiye. Current status is confirmed in the quote.

Is Baldor EM3558T-57 genuine and new?

Yes. This Baldor product is supplied genuine and brand-new, sold with invoice under Yılsa Engineering assurance.

How do I get the datasheet and technical specs for Baldor EM3558T-57?

Key technical specifications are listed on the product page. For the full datasheet, dimensions and compatibility, simply contact Yılsa Engineering.

Click to zoom

Photo may not represent actual item. Refer to name and product specs for all details.

Baldor EM3558T-57

Baldor-Reliance EM3558T-57 is a general purpose three-phase AC electric motor rated 2 HP (1.5 kW), 1460 rpm, 3 phase 230/400 V, 50 Hz, with a 145T frame and TEFC enclosure.

BaldorMFR # EM3558T-57SKU # YLSJNSSYD2ZH6V

EnclosureTEFC

Frame145T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3558T-57 is a general purpose three-phase AC electric motor rated 2 HP (1.5 kW), 1460 rpm, 3 phase 230/400 V, 50 Hz, with a 145T frame and TEFC enclosure.

Baldor EM3558T-57

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame145T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency2.000 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)1500 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ · 230.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · CE · CURUS · IE3 · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage5.300 A @ 230.0 V · 3.100 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)3.1 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classF

Inverter codeInverter Ready

IP ratingNONE

KVA codeJ

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3528M

Mounting arrangementF1

Number of poles4

Overall length13.31 IN

Power factor81

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft extension locationPulley End

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1460 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811757

Nameplate

Catalog numberEM3558T-57

Specification number35AA001G303G1

Horsepower (HP)2/1.5KW

Phase3

Voltage (V)230/400

Current (A)5.3/3.1

Speed (1/min)1460

Frame size145T

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)J

NEMA design letterB

Insulation classF

Nominal efficiency (%)85.5

Power factor81

Rating40C AMB-CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 2 hp

Line-to-line resistance at 25 °C (ohms)9.9 Ω

Temperature rise at rated load (°C)69° C

Temperature rise at service factor load (°C)86° C

Start configurationDOL

Breakdown torque21.59 lb-ft

Pull-up torque17.05 lb-ft

Locked-rotor torque19.18 lb-ft

Starting current (A)22.6 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	7	40	61	75	81	85	87	83
Efficiency %	0	80.8	86.6	87.1	85.7	84	81.5	84.7
Speed rpm	1499	1492	1482	1471	1459	1445	1431	1451
Line amps A	1.54	1.66	1.98	2.48	3.06	3.76	4.52	3.48
Power W	78.69	456	841	1283	1716	2204	2726	2009
Torque lb-ft	0	1.74	3.46	5.35	7.1	9.02	10.93	8.25

Documents & CAD

For this product 3

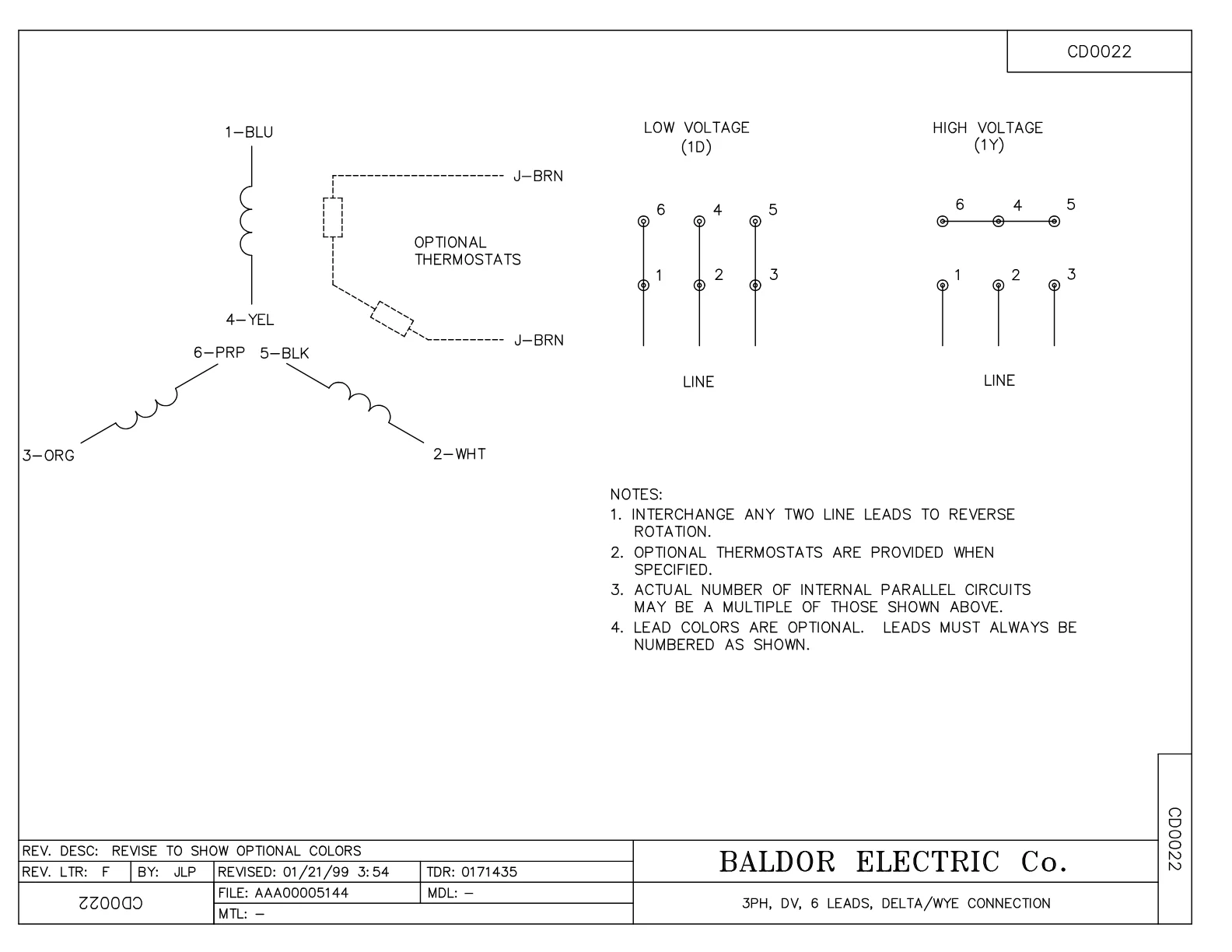

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·588 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·105 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM3558T-57 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
35FN3002A05SP	EXFN, PLASTIC, 6.376 OD, .638 ID	1 pcs	436 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
