Baldor EM3550T-57

Baldor-Reliance EM3550T-57 is a general purpose three-phase AC electric motor rated 1.5 HP, 2850 rpm, 3 phase 230/400 V, 50 Hz, with a 143T frame and TEFC enclosure.

BaldorMFR # EM3550T-57SKU # YLSJ6P0QHIUJON

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 50 HZ

Have questions?Chat on WhatsApp

About This Product

Baldor-Reliance EM3550T-57 is a general purpose three-phase AC electric motor rated 1.5 HP, 2850 rpm, 3 phase 230/400 V, 50 Hz, with a 143T frame and TEFC enclosure.

Baldor EM3550T-57

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureTEFC

Frame143T

Frame materialSteel

Frequency (Hz)50.00 Hz

Motor letter typeThree Phase

Output at frequency1.500 HP @ 50 HZ

Phase3

Synchronous speed at frequency (rpm)3000 RPM @ 50 HZ

Voltage at frequency400.0 V @ 50 HZ · 230.0 V @ 50 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsC UR US · CE · CURUS · IE3 · UKCA · WEEE

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.000 A @ 230.0 V · 2.300 A @ 400.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load85.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)2.3 a

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classB

Inverter codeInverter Ready

KVA codeL

Lifting lugsNo Lifting Lugs

Locked bearing indicatorNo Locked Bearing

Motor lead terminationFlying Leads

Motor lead quantity/wire size6 @ 18 AWG

Motor type3524M

Mounting arrangementF1

Number of poles2

Overall length13.29 IN

Power factor84

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter0.875 IN

Shaft ground indicatorNo Shaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)2850 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568811733

Nameplate

Catalog numberEM3550T-57

Specification number35TT638P217G2

Horsepower (HP)1.5/1.1KW

Phase3

Voltage (V)230/400

Current (A)4/2.3

Speed (1/min)2850

Frame size143T

Frequency (Hz)50

Ingress protection (IP)44

Service factor1.15

Code letter (locked rotor kVA)L

NEMA design letterB

Insulation classB

Nominal efficiency (%)85.5

Power factor84

Rating40C AMB-S1 CONT

Drive end bearing6205

Opposite drive end bearing6203

EnclosureTEFC

Nameplate numberNP2716L

Performance

General characteristics· 400 V, 50 Hz, 1.5 hp

Line-to-line resistance at 25 °C (ohms)7.48 Ω

Temperature rise at rated load (°C)43° C

Temperature rise at service factor load (°C)51° C

Start configurationDOL

Breakdown torque11.3 lb-ft

Pull-up torque9.61 lb-ft

Locked-rotor torque12.1 lb-ft

Starting current (A)20.2 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	18	49	70	81	85	88	91	87
Efficiency %	0	76.9	84.5	85.8	85.9	84.7	82.9	85.2
Speed rpm	2998	2969	2943	2916	2888	2856	2823	2869
Line amps A	0.949	1.11	1.42	1.79	2.26	2.75	3.24	2.55
Power W	117	379	688	1005	1328	1672	2032	1534
Torque lb-ft	0	0.691	1.39	2.08	2.78	3.49	4.2	3.21

Documents & CAD

For this product 3

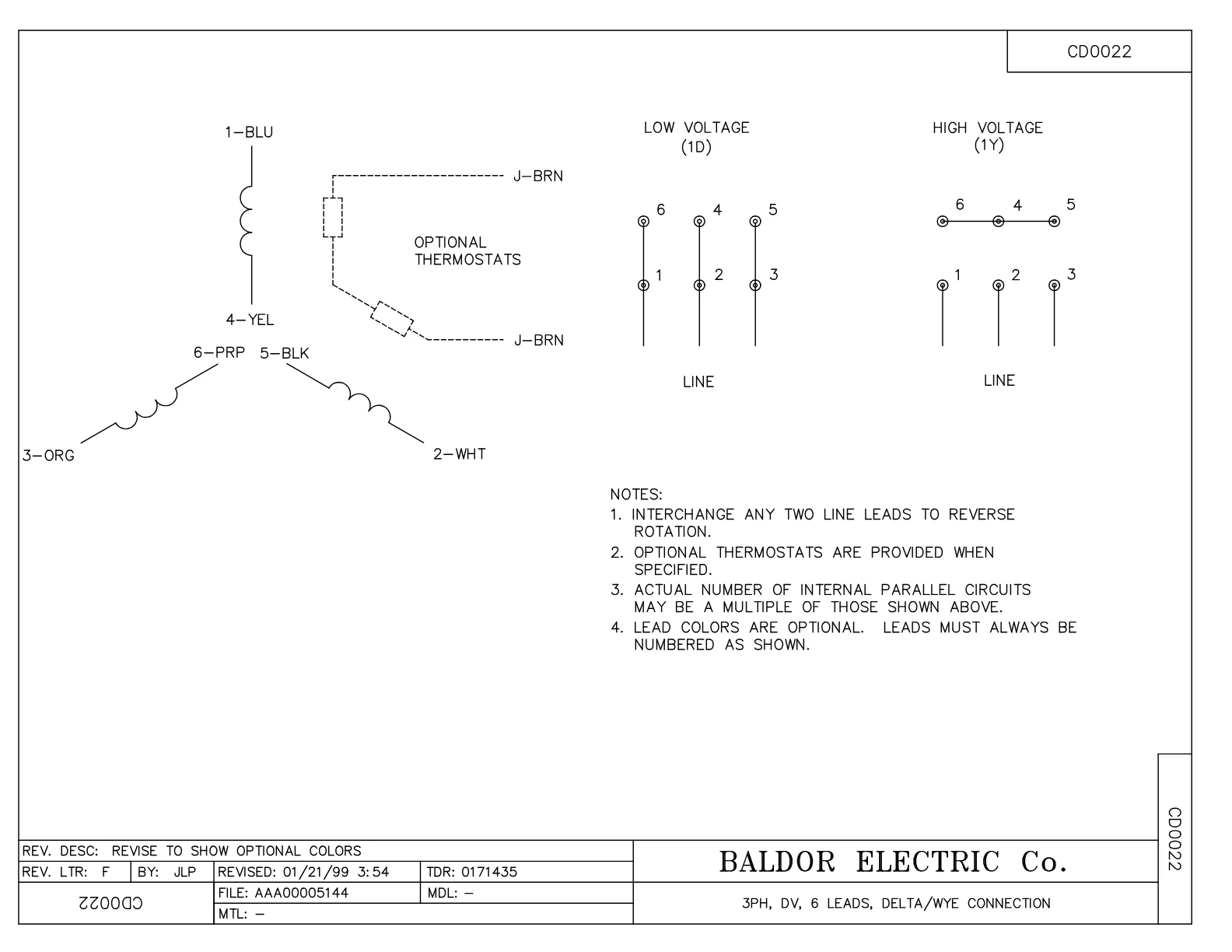

Wiring DiagramWiring DiagramPDF·37 KB·English

DatasheetDatasheetPDF·581 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 1· shared by this product series

Dimension DrawingDimension SheetPDF·100 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 5

The genuine spare parts used for servicing and repairing the Baldor EM3550T-57 motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
36GS1000SP	GASKET-CONDUIT BOX, .06 THICK #SV-330 LE	1 pcs	831 motors
35FH4005A84SP	IEC FH W/GRSR, NO DIMPLES PRIMED	1 pcs	167 motors
34FN3002B01	EXTERNAL FAN, PLASTIC, .637/.639 HUB W/	1 pcs	623 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
