Baldor EM3211T-G

Shaft Grounding Motor - 3 hp, 1800 rpm, 3 ph, 230/460 V, 182T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

BaldorMFR # EM3211T-GSKU # YLSDEAYR8HSTNC6

EnclosureOPSB

Frame182T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Have questions?Chat on WhatsApp

About This Product

Shaft Grounding Motor - 3 hp, 1800 rpm, 3 ph, 230/460 V, 182T Frame, OPSB (Open Slotted Band) Enclosure, 60 Hz, 1765 rpm Base, Foot Mount, Continuous Duty

Baldor EM3211T-G

Genuine, certified Baldor product
Fast sourcing through a worldwide supply network
Product selection and compatibility support from our technical team
Equivalent and alternative product suggestions
Quotation and lead time tailored to your request

Specifications

EnclosureOPSB

Frame182T

Frame materialSteel

Frequency (Hz)60.00 Hz

Motor letter typeThree Phase

Output at frequency3.000 HP @ 60 HZ

Phase3

Synchronous speed at frequency (rpm)1800 RPM @ 60 HZ

Voltage at frequency230.0 V @ 60 HZ · 460.0 V @ 60 HZ

Hazardous area class and groupNone

Hazardous area divisionNot Applicable

Agency approvalsNEMA PREMIUM (OLD LOGO) · NEMA PREMIUM · CURUSEEV

Ambient temperature (°C)40 °C

Auxiliary boxNO AUXILLARY BOX

Auxiliary box lead terminationNone

Base indicatorRigid

Bearing grease typePolyrex EM (-20F +300F)

BlowerNone

Current at voltage4.300 A @ 460.0 V · 8.600 A @ 230.0 V

Design codeB

Drip coverNo Drip Cover

Duty ratingCONT

Efficiency at 100% load89.5 %

Electrically isolated bearingNot Electrically Isolated

Feedback deviceNO FEEDBACK

High voltage full load current (A)4.3 a

Front face codeStandard

Front shaft indicatorNone

Heater indicatorNo Heater

Insulation classH

Inverter codeInverter Ready

IP ratingNONE

KVA codeK

Lifting lugsStandard Lifting Lugs

Locked bearing indicatorLocked Bearing

Motor lead exitKo Box

Motor lead terminationFlying Leads

Motor lead quantity/wire size9 @ 16 AWG

Motor type3628M

Mounting arrangementF1

Number of poles4

Overall length15.00 IN

Power factor78

Product familyGeneral Purpose

Pulley end bearing typeBall

Pulley face codeStandard

Pulley shaft indicatorStandard

Rodent screenNone

RoHS statusROHS COMPLIANT

Service factor1.15

Shaft diameter1.125 IN

Shaft extension locationPulley End

Shaft ground indicatorShaft Grounding

Shaft rotationReversible

Shaft slinger indicatorNo Slinger

Speed (rpm)1760 rpm

Speed codeSingle Speed

Motor standardsNEMA

Starting methodDirect on line

Thermal device - bearingNone

Thermal device - windingNone

Vibration sensor indicatorNo Vibration Sensor

Winding thermal 1None

Winding thermal 2None

UPC781568604335

Motor CategoryShaft Grounding Motor

Motor Supply Voltage230/460 V

Base RPM1765 rpm

Weight72 lbs

Harmonization Code8501.52.4000

ApplicationsHeating, ventilation and air conditioning blower and fan motors, pump motors, and other general purpose applications using an adjustable speed drive.

Additional DetailsBaldor shaft grounding brush installed internally. Class H insulated motor. Regreasable ball bearings. Dynamically balanced rotors for reduced vibration and quiet operation. All models are Super-E® designs which meet NEMA Premium® efficiencies, are Inverter Ready, and have a 3-year warranty.

Mounting TypeFoot

Product TypeAir Handling (HVAC) Motors

Nameplate

Catalog numberEM3211T-G

Specification number36M526Z649G1

Horsepower (HP)3

Voltage (V)230/460

Current (A)8.6/4.3

Speed (rpm)1760

Frame size182T

Frequency (Hz)60

Phase3

Service factor1.15

Code letter (locked rotor kVA)K

NEMA design letterB

Insulation classH

NEMA nominal efficiency (%)89.5

Power factor78

Rating40C AMB-CONT

CC number010A

EnclosureOPSB

Drive end bearing6206

Opposite drive end bearing6205

Nameplate numberNP3553L

Performance

General characteristics· 460 V, 60 Hz, 3 hp

Line-to-line resistance at 25 °C (ohms)4.2111 Ω

Temperature rise at rated load (°C)25° C

Temperature rise at service factor load (°C)30° C

Start configurationDOL

Breakdown torque35.1 lb-ft

Pull-up torque19.1 lb-ft

Locked-rotor torque21.2 lb-ft

Starting current (A)30.9 A

Load characteristics

Load	0%	25%	50%	75%	100%	125%	150%	S.F.
Power factor %	5	32	52	66	73	78	81	76
Efficiency %	0	82.9	88.8	90.2	90.1	89.4	88.2	89.7
Speed rpm	1799.9	1791.6	1783	1773.2	1763.4	1753.4	1742	1757
Line amps A	2.49	2.65	3.04	3.59	4.26	5.03	5.89	4.72
Power W	107	680	1269	1872	2489	3134	3804	2876
Torque lb-ft	0	2.217	4.455	6.705	8.953	11.25	13.57	10.3

Documents & CAD

For this product 3

Wiring DiagramWiring DiagramPDF·41 KB·English

DatasheetDatasheetPDF·603 KB·English

Performance CurvePerformance CurvePDF·60 KB·English

Series documents 2· shared by this product series

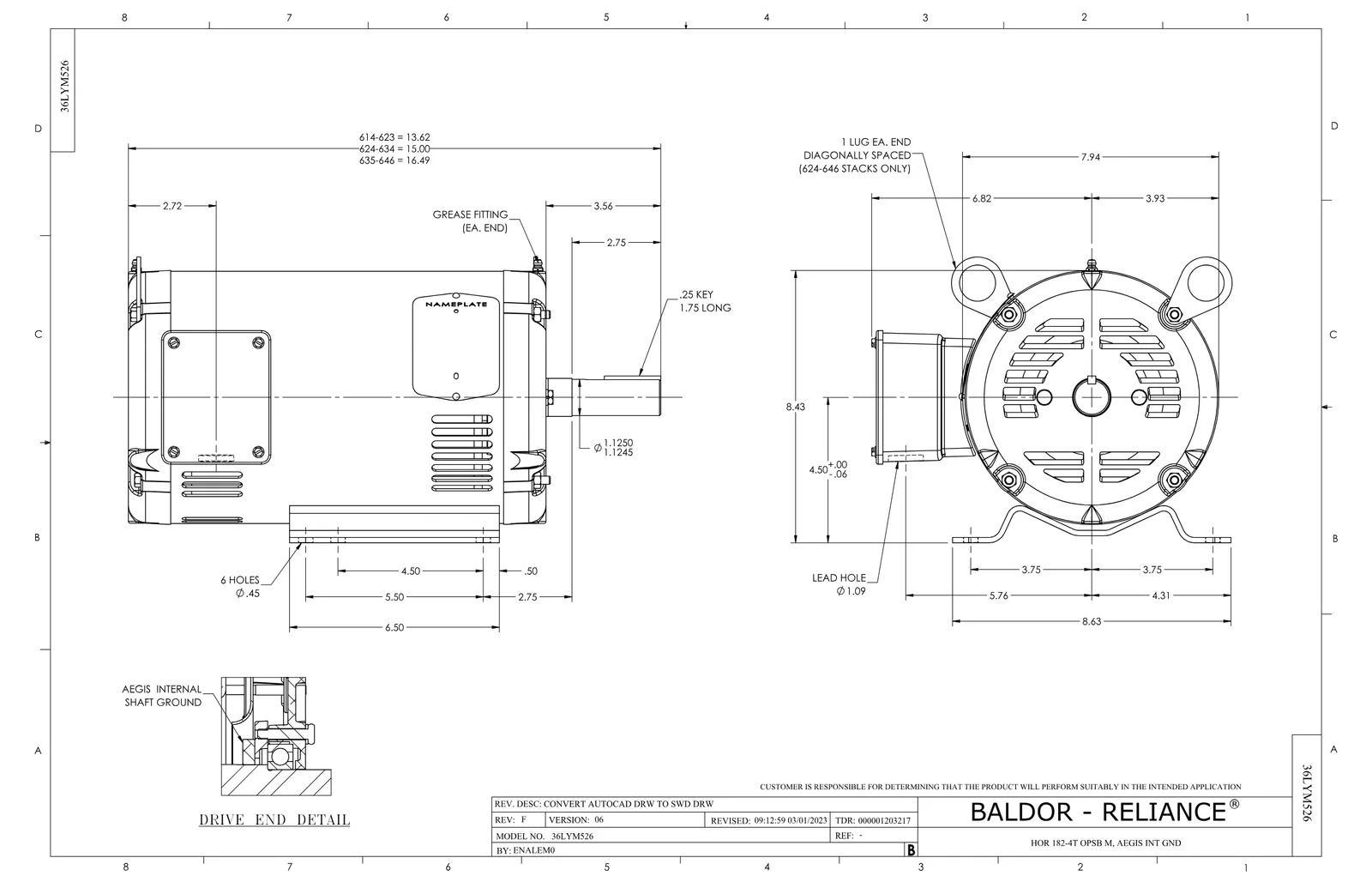

Dimension DrawingDimension SheetPDF·118 KB·English

Technical DrawingDrawingPDF·87 KB·English

CAD Files 9

3D Model

2D Drawing

Spare Parts 3

The genuine spare parts used for servicing and repairing the Baldor EM3211T-G motor are listed below. The list is based on the parts list published by the manufacturer for this motor; each part is shown with its code, description and the quantity used in the motor. Click a part number to see its technical details and the other motors that use the same part. Quoting the catalog and spec numbers from the nameplate with your spare-part order helps us supply the correct part. Request a quote for price and lead time.

Part no	Description	Quantity	Used in
MG1050Y01	CELEROL BALDOR GOLD 5 GALLON BUCKET	0.022 gal	1,997 motors
MN416A01	TAG-INSTAL-MAINT no wire (2500 bx)11/25	1 pcs	5,041 motors
LB1624	COMBINED WARNING LABEL, ISO/ANSI PICTOGR	1 pcs	4,237 motors
